Mitsubishi S6R2 Series User Manual

8-5
Chapter 8 FUEL SYSTEM

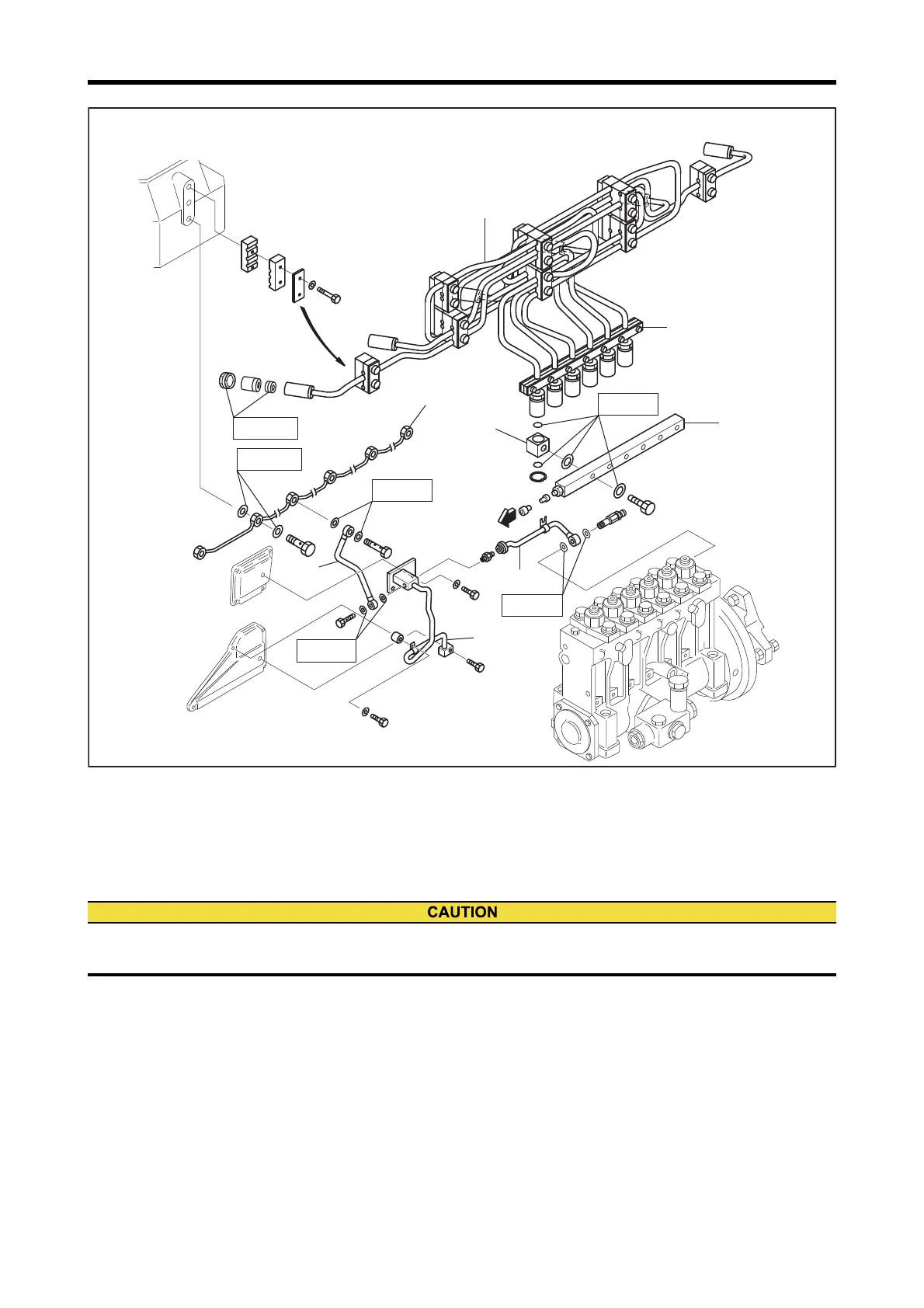

Fuel Injection Pipe and Fuel Leak-off Pipe - Remove and Inspect
Note: The consisting parts at fuel inlet and outlet differ depending on the customization and specification.
No.2 cylinder head
Double layer injection pipe spec 1
Replace
Replace
Replace
Replace
Replace
Replace
7
8
To oil leak sensor
1
2
3
4
5
6
Removing Sequence
1 Leak-off pipe
2 Leak connector
3 Clamp
4 No.1 to 6 fuel injection pipe
5 Leak-off pipe
6 Leak-off pipe
7 Leak-off end pipe
8 Leak-off pipe
Cover the openings on the fuel injection pump, nozzle inlet connector and fuel injection pipe to prevent dust from
entering the fuel system.
