Chapter 10 COOLING SYSTEM

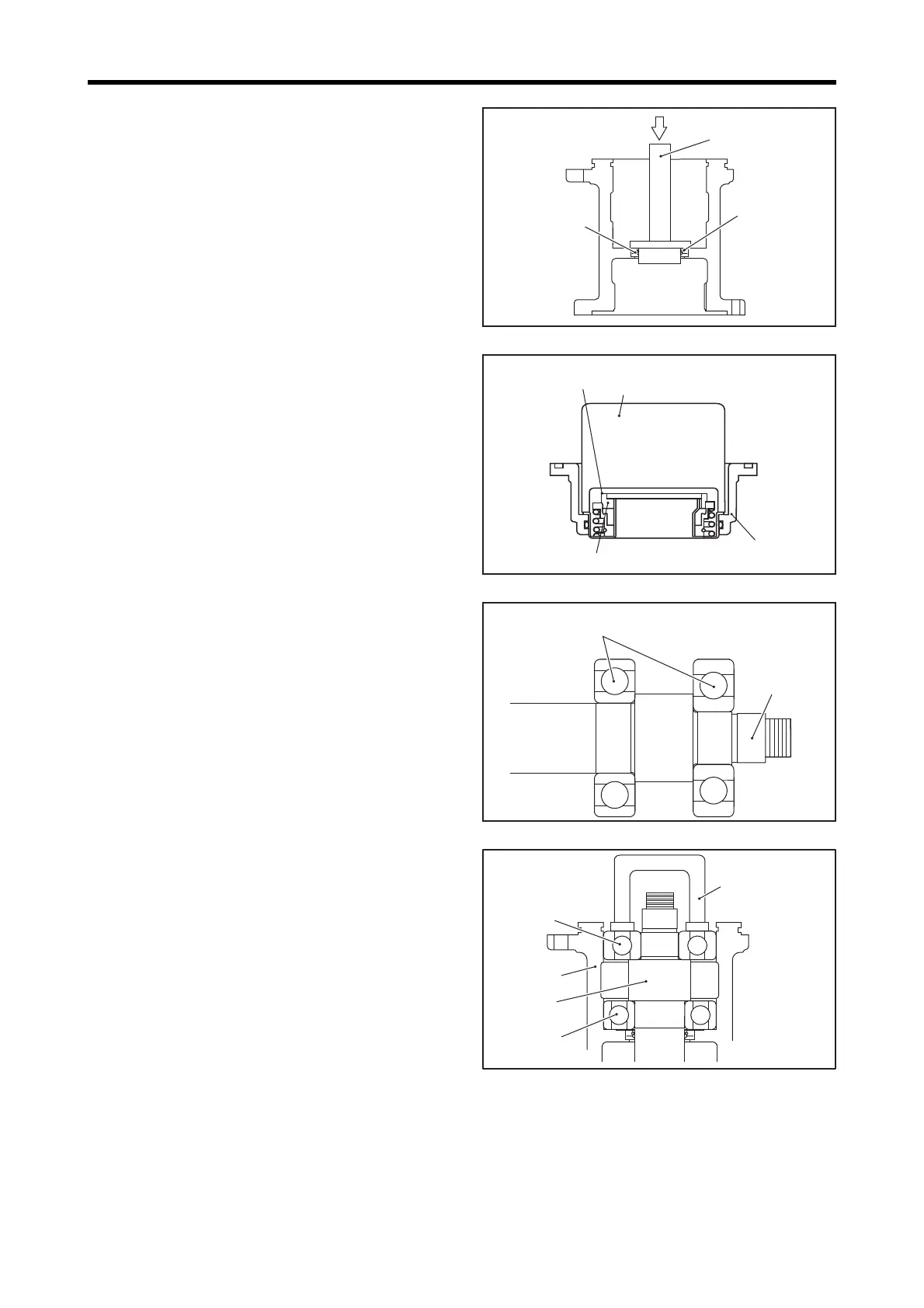

2.12.1 Oil Seal - Install
(1) Press-fit the oil seal to the bearing case with the
installer.
Note: Always replace the oil seal with a new one.
Place the lip to face to bearing.
(2) Apply grease to the oil seal groove and lips.
Oil Seal - Install
2.12.2 Unit Seal Ring - Install
Insert the unit seal ring slowly into housing by hand using
unit seal ring installer.
Note:(a) Always replace the unit seal with a new one when-
ever it is removed from pump case.
(b) Do not use a hummer or mallet to install.
(c) Do not damage the sliding surface of the unit seal.
Unit Seal Ring - Install
2.12.3 Bearing - Install
(1) Tap-in the bearing squarely along the shaft center line.
(2) Apply grease on bearing rolling faces.
Bearing - Install
2.12.4 Shaft and Bearing - Install
(1) Press-fit the ball bearing and water pump shaft to the
holder with the installer.
(2) Press-fit the ball bearing to the water pump shaft with
the installer.
Shaft and Bearing - Install
Installer
Oil seal
Fill one-half of lip
with NOK Klueber
grease NBU-12K.
Seal ring installer guide
P/N:45B91-02100
Sliding surface
Seal ring portion
Housing
Apply lithium grease to bearing rolling contact surface.
Shaft
Installer
Holder
Bearing
Bearing
Shaft
