Chapter 11 INLET AND EXHAUST SYSTEMS
Exhaust System - Remove and Inspect
5
2
5
5
1
3
6
6
7
8
7
8
8
4
6
6
Crack, flaw, deformation
Crack, flaw, deformation
Crack, flaw, deformation
Crack, flaw, deformation
Replace
Replace
Replace
Replace
Air cooled exhaust fresh air cooler TTD13 spec

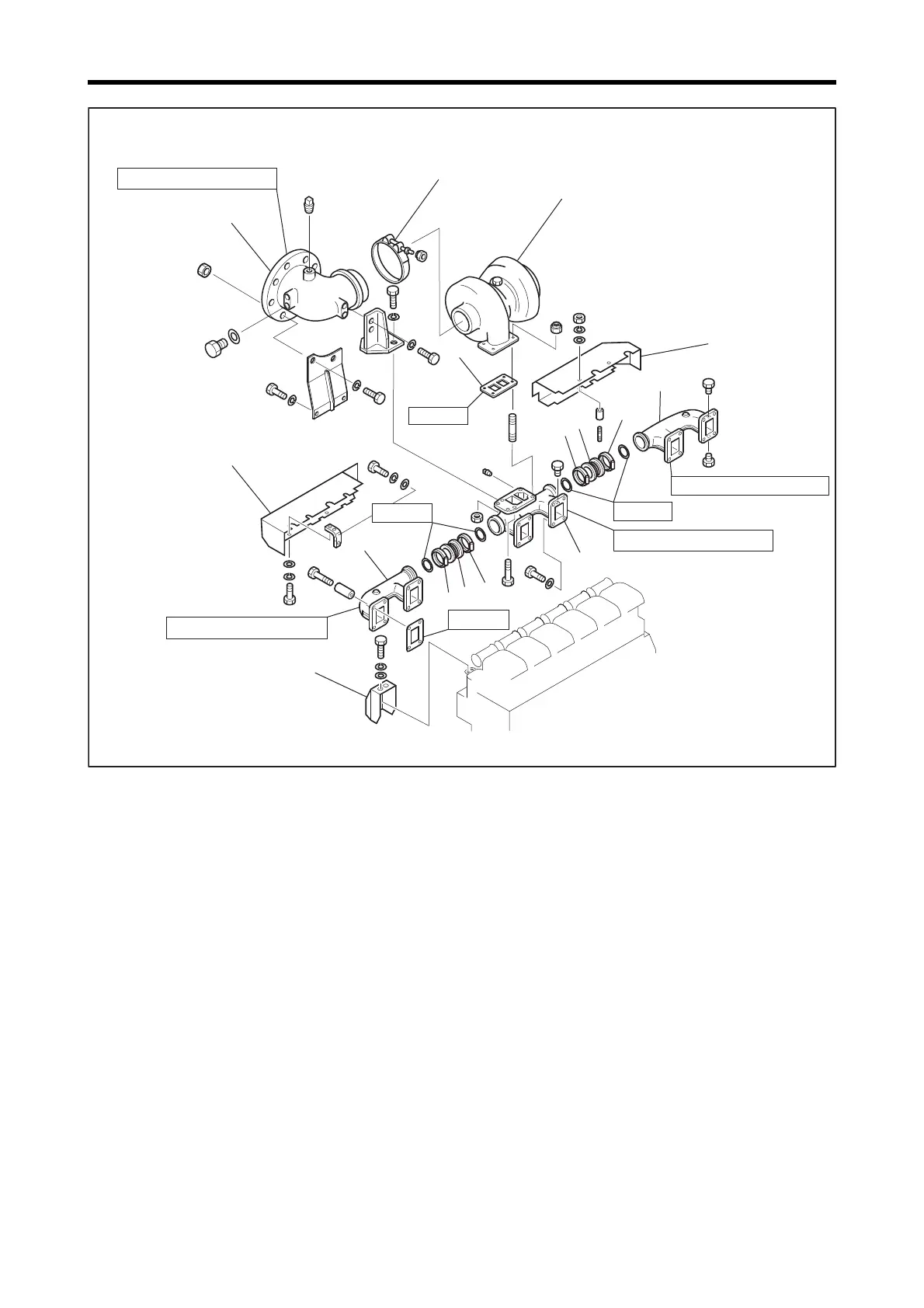

Removing Sequence
1 V-clamp
2 Exhaust pipe
3 Turbocharger (Approx 50 kg [110 lb])
4 Gasket
5 Insulator
6 Coupling
7 Flexible joint
8 Exhaust manifold
