1-15
Chapter 1 GENERAL

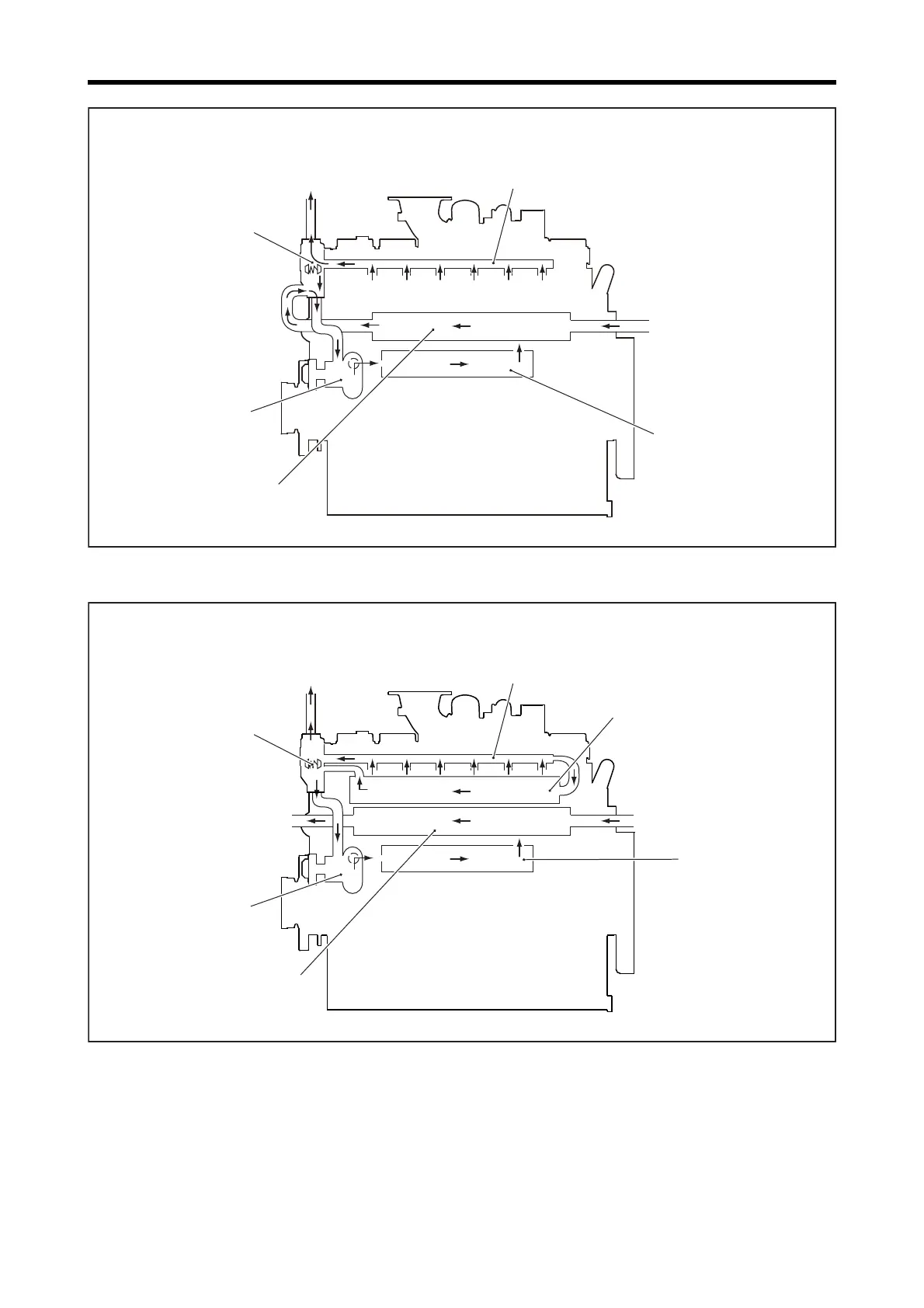

Outline of Cooling System
Outline of Cooling System
Water outlet pipe (rocker case)
Oil cooler
PTK spec
Thermostat
Air cooler
Water pump
Air cooler,
Engine coolant inlet
Air cooler,
engine coolant outlet
Water outlet pipe (rocker case)
Oil cooler
PTAW spec (Outside of water pump for air cooler cooling)
Thermostat
Air cooler
Water pump
Exhaust manifold
Air cooler coolant inlet Air cooler coolant outlet
Engine coolant outlet
