'16 • SCM-T-199

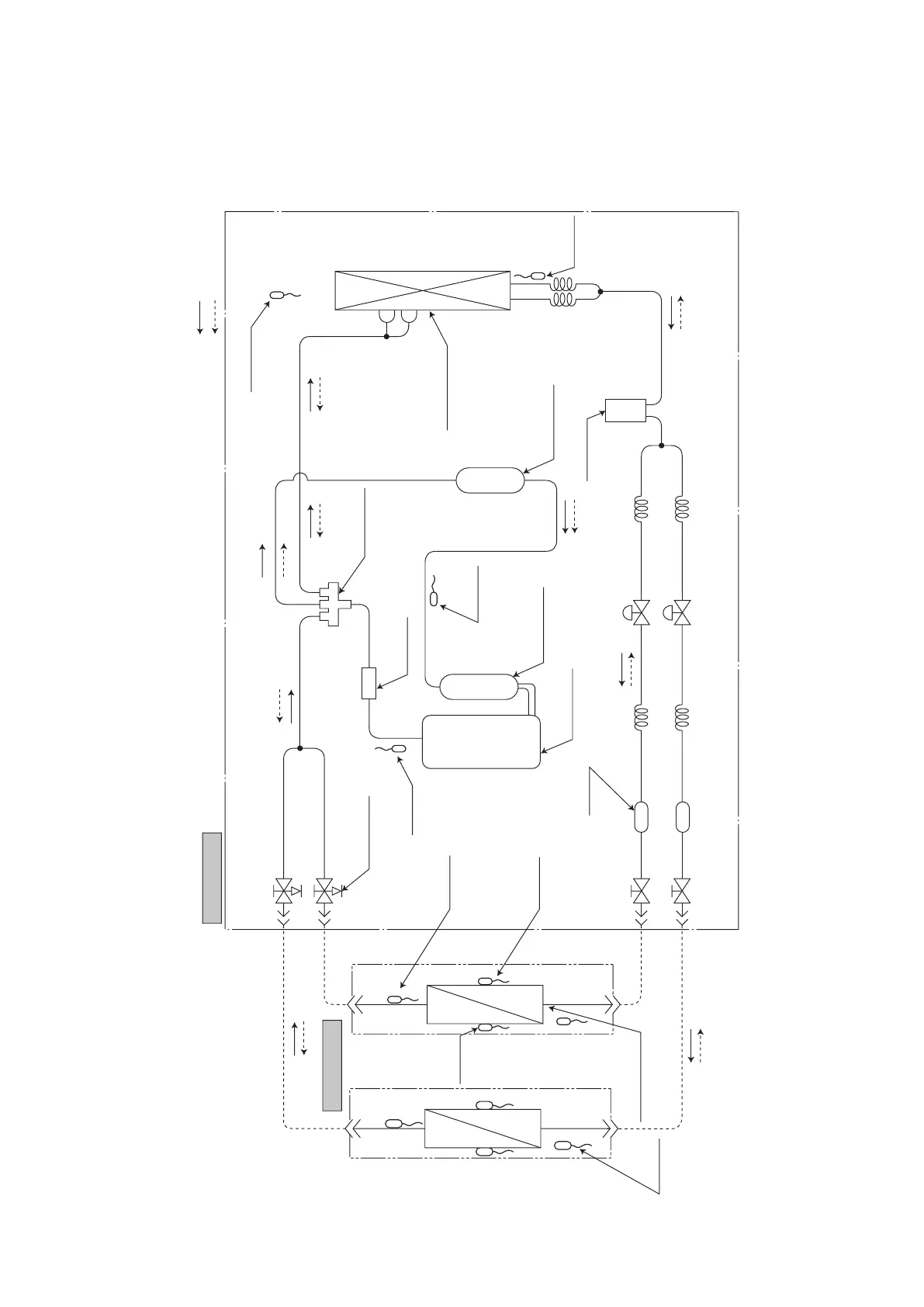

3. PIPING SYSTEMS
Models SCM40ZS-S, 45ZS-S
Outdoor unit
Indoor unit
Sensor
Sensor
(Th2
2
)
(Th2
1
)
(Th1)
Sensor
Sensor
(Tho-S)
Check joint
Sensor
(Tho-D)
Sensor
(Tho-A)
Sensor
(Tho-R)
Heat exchanger
Heat exchanger
Liquid line
Gas line
(φ6.35) (φ6.35) (φ9.52) (φ9.52)
Strainer
Humidity sensor
*1
Compressor
4-way valve
Service valve
(Liquid)
Capillary tube
Capillary tube
Electric expansion valve
EEVA EEVB
Cooling cycle
Heating cycle
Service valve
(Gas)
Accumulator
Accumulator
Discharge
Suction
Receiver
Muffler
*1 Humidity sensor
SRK35ZMX-S, SRK35ZS-S and SRF series only.
(Th3)
Capillary tube
