Mitsubishi SRK35ZS-S

(c) Swing
(i) Swing ap
Flap moves in upward and downward
directions continuously.
(ii) Swing louver
Louver moves in left and right directions continuously.
(d) Memory flap (Flap or louver stopped)
When you press the AIR FLOW (UP/DOWN or LEFT/RIGHT) button once while the ap or louver is operating, it stops swinging
at the position. Since this angle is memorized in the microcomputer, the ap or louver will automatically be set at this angle when
the next operation is started.
(e) When not operating
The ap returns to the position of air ow directly below, when operation has stopped.
In HEAT operation
Approx. 20°
Approx. 75°
In COOL, DRY, FAN operation
Approx.5°
Approx. 60°
S
SRF series
Control the ap by AIR FLOW


(UP/DOWN) button on the wireless remote control.

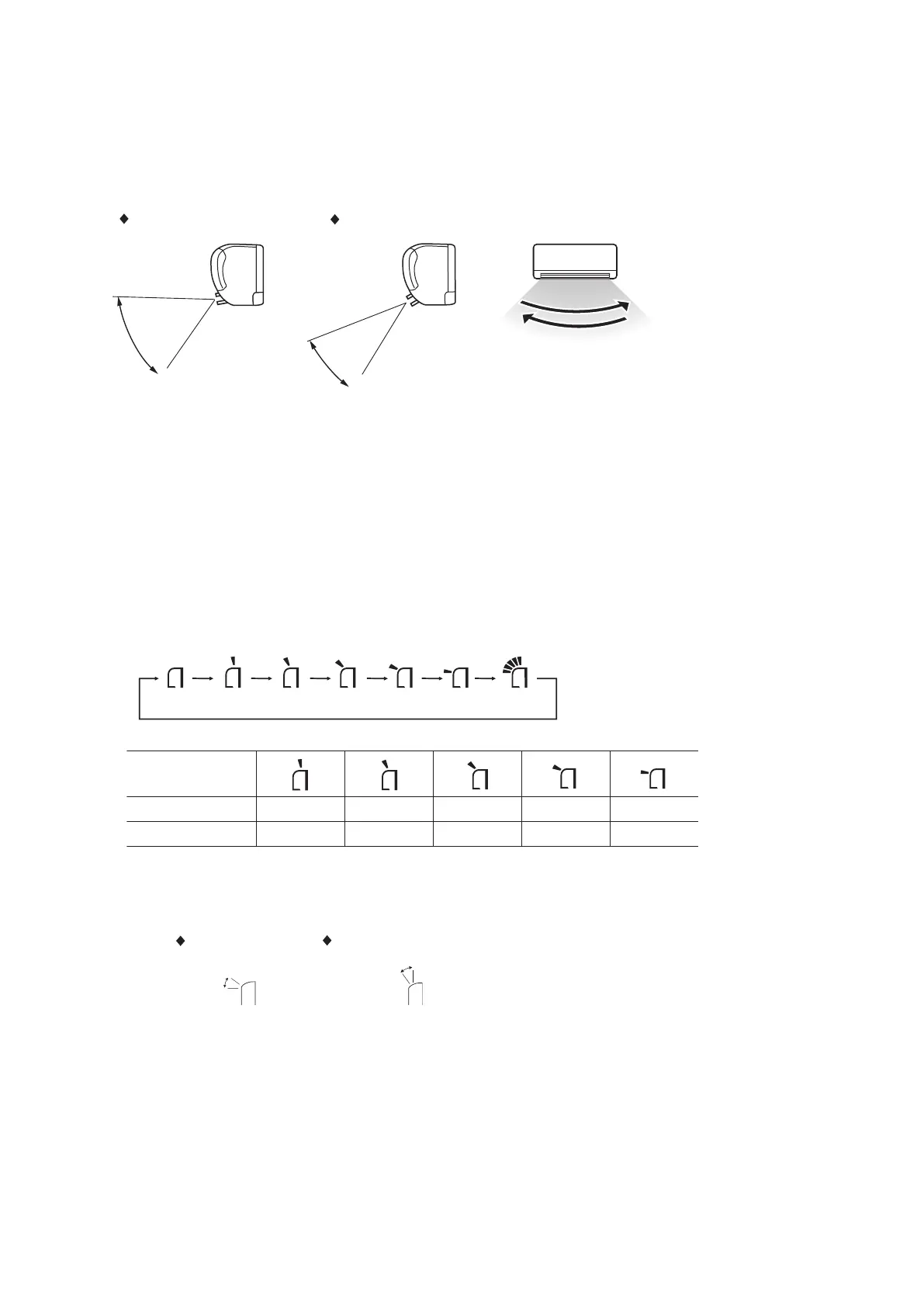

(a) Flap
Each time when you press the AIR FLOW


(UP/DOWN) button the mode changes as follows.
COOL , DRY, FAN
Wireless remote
control display
HEAT
Approx. 60°
Approx. 44°
Approx. 50°
Approx. 32°
Approx. 38°
Approx.
21.5° Approx. 5°
Approx. 21.5°
Approx. 12°
Approx. 12°
󱓻

Angle of flap from horizontal
(Swing)(Flap stopped)
(b) Swing
(i) Swing ap
Flap moves in upward and downward directions continuously.
(c) Memory flap (Flap stopped)
When you press the AIR FLOW button once while the ap is operating, it stops swinging at the position. Since this angle is
memorized in the microcomputer, the ap will automatically be set at this angle when
the next operation is started.
(d) When not operating
The ap returns to the position of air ow directly below, when operation has stopped.
Approx.60°
Approx.12°
Approx.44°
Approx.
5°
In HEAT operation In COOL, DRY, FAN operation
Approx. 45°
Approx. 75°
Approx.
5°
Approx. 60°
-
