Mitsubishi TDJ300D User Manual

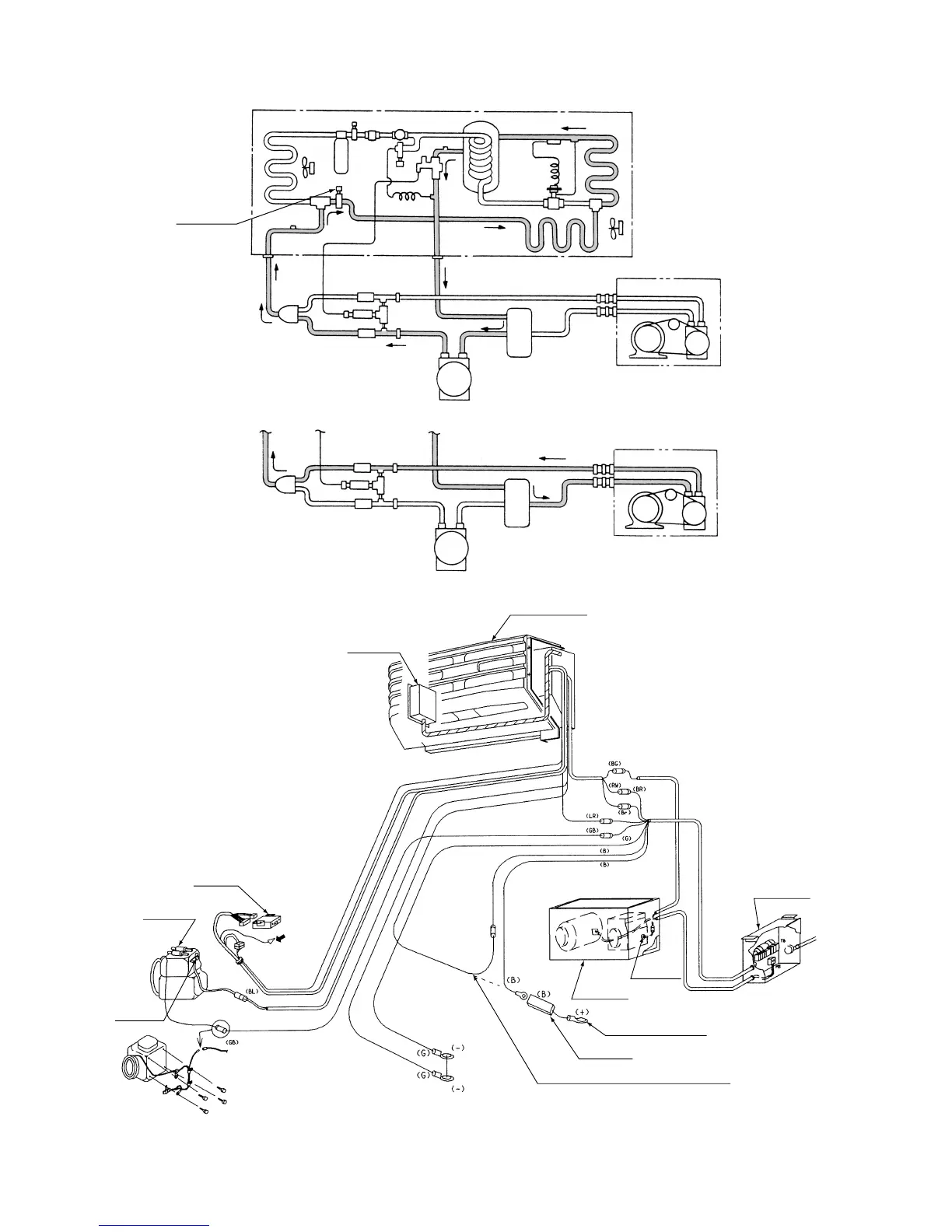

(2) Defrost cycle
9. Control system
– 12 –
Defrost
electromagnetic
valve (open)
Motor pack
Refrigeration unit
Engine drive type
Motor dirve type
Refrigeration unit
Power source
box
Td2 sensor
Motor pack
To battery (+) terminal
Fusible link
On the 1 type, connect it to the battery as it is.
In case of type2
Ground
Ground
Control box
Controller
Compressor
To ignition
switch
Td1 sensor
Remarks:
The figure shows an example of Type 2.
Type 1 is not equipped with motor pack
and accumulator.
