Mitsubishi TDJ300D User Manual

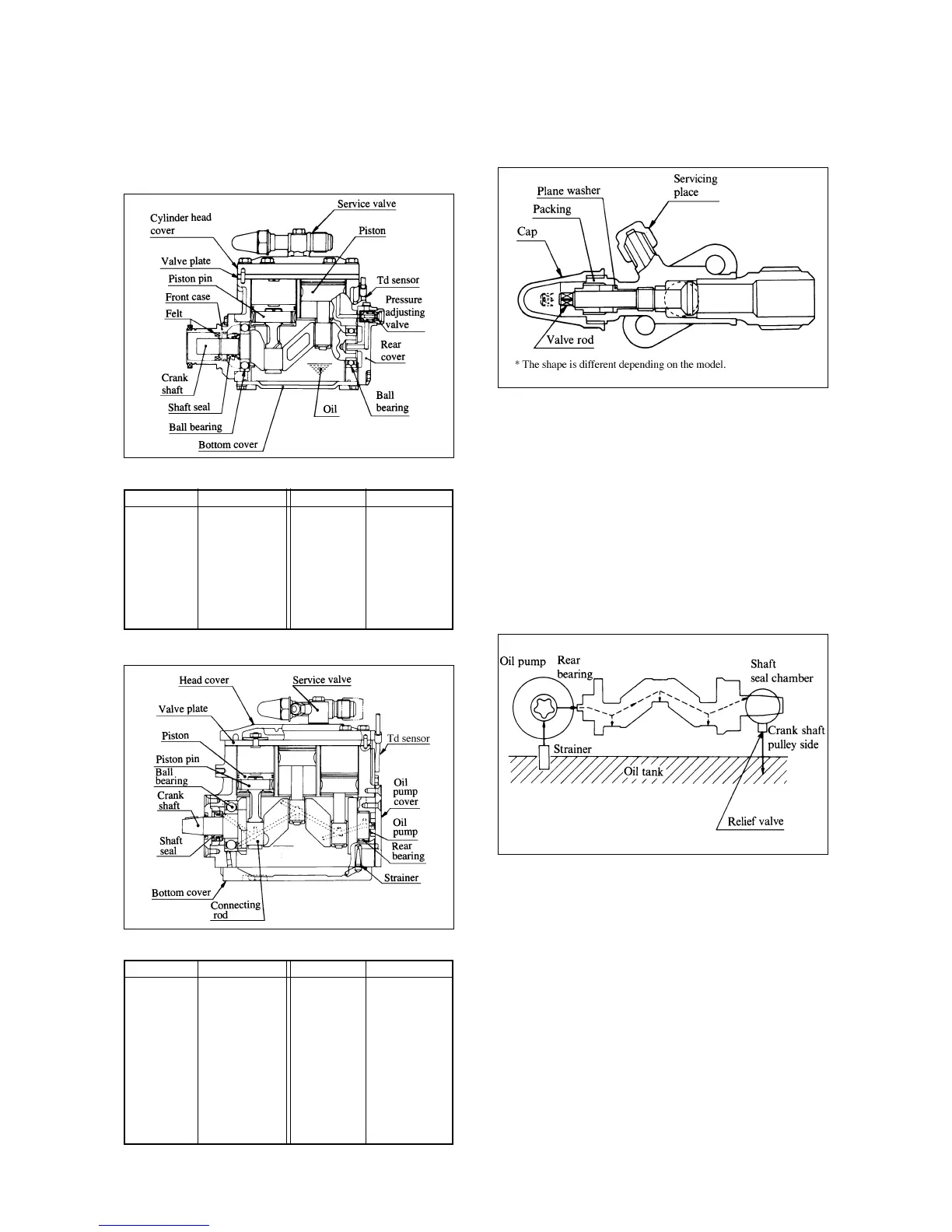

10. Description of main parts
10.1 Compressor
(1) TDJ300D
(2) TDJ430D
(3) Service valve
The compressor are equipped with a suction
service valve and discharge service valve.
Note: When working the pipe for service, finally
connect the suction and discharge pipes of the
compressor since the refrigerator oil is highly
liable to absorb water.
(4) Lubrication system (TDJ430D)
Lubrication oil is supplied forcibly to respective
bearings, pistons, tank shaft pins and shaft seals by
the oil pump.
10.2 Magnet clutch
The magnet clutch is installed in the crank shaft of the
compressor, and turns on and off the compressor by
indication of the thermostat. When cooling is required
it is "ON" and when not required it is "OFF".
– 13 –
CR2211L-A
Name
Model
Volume of
discharge
Revolution
Specification
CR2211L-A
110cm
3
/rev
600 ~ 3600min
-1
(motor 1420min
-1
)
Name
Weight
Lubricating
oil
Amount of
oil
Specification
7.3kg
(include magnet
clutch)
Diamond Freeze
MA32
350cm
3
CR2318LWR
Name
Model
Lubricating
method
Volume of
discharge
Revolution
Specification
CR2318LWR
Compulsory
lubrication
181.2cm
3
/rev
600 ~ 3600min
-1
(motor 1400min
-1
)
Name
Weight
Lubricating
oil
Amount of
oil
Specification
13.5kg
(include magnet
clutch)
Diamond Freeze
MA32
800cm
3
Service valve
Schematic diagram of lubrication system
