MODELS: WD-57733 / WD-65733 / WD-73733 / WD-57734 / WD-65734 / WD-73734 / WD-C657
WD-Y577 / WD-Y657 / WD-57833 / WD-65833 / WD-73833
Page 19
Screen Assembly Removal
(continued)

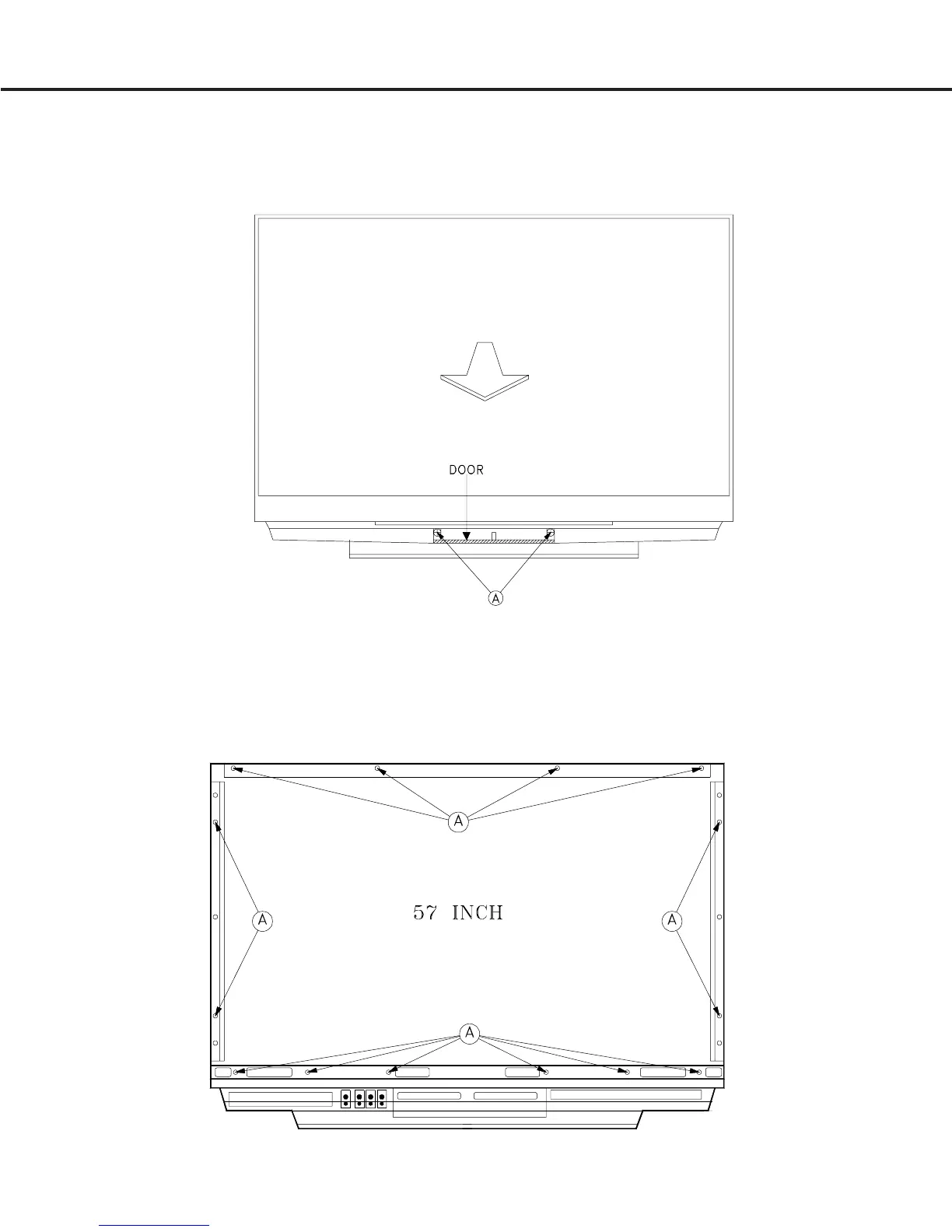

2) Open the Control Panel door and remove two screws (A).
3) Remove the remaining rear screw in the upper corner and carefully pull the screen assembly
from the cabinet.
Screen Removal From the BEZEL-FRONT
1) Remove the screws (A) from the top, bottom and side rails.
2) Lift the Fresnel Lens and Lenticular screen from the BEZEL-FRONT.
To Next Page
