MODELS: WD-57733 / WD-65733 / WD-73733 / WD-57734 / WD-65734 / WD-73734 / WD-C657
WD-Y577 / WD-Y657 / WD-57833 / WD-65833 / WD-73833
Page 29

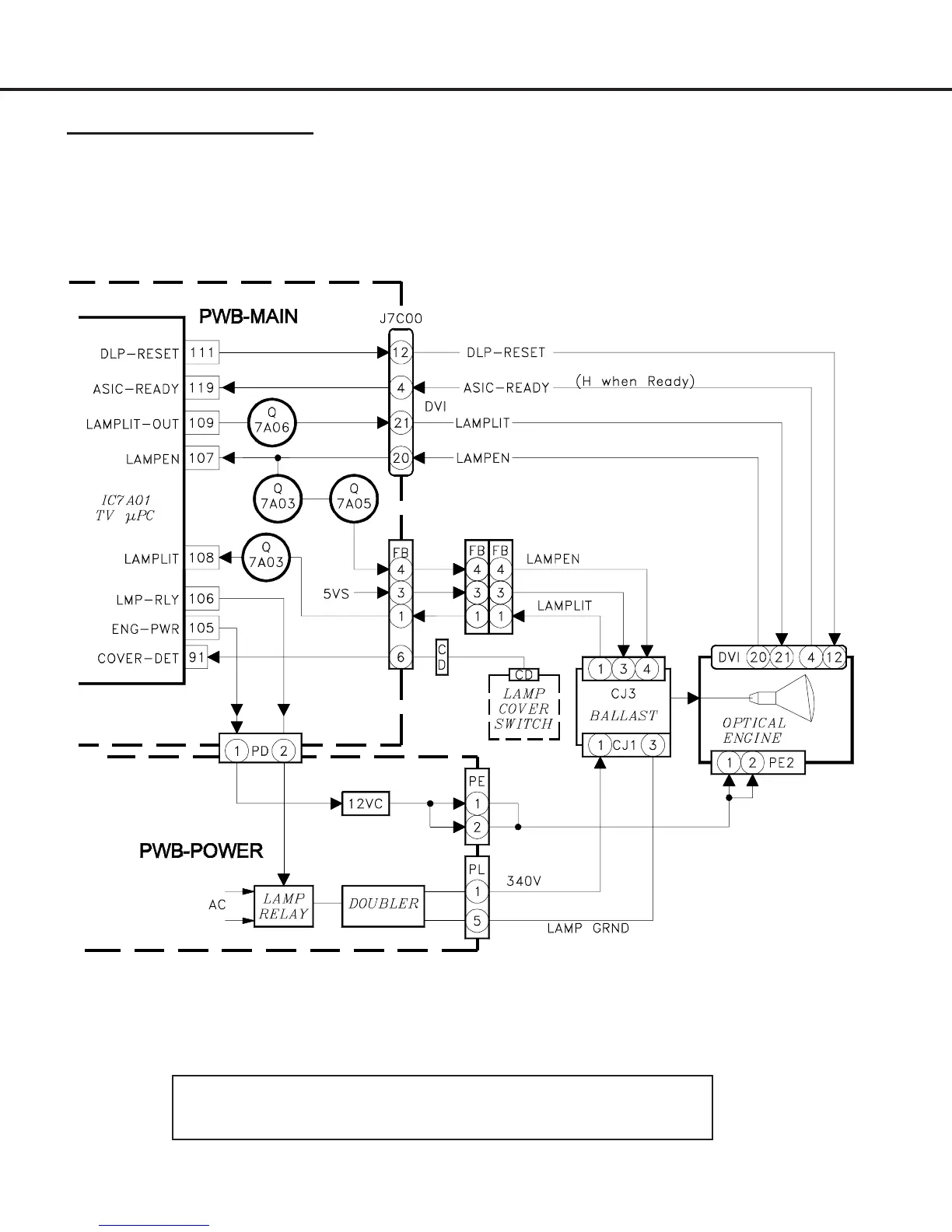

V36 / V37 / V38 Lamp Control Block Diagram
NOTE: To operate the TV with the back cover removed, install the Lamp
Cover to activate the Lamp Switch.
The Flow Chart on the following page helps to determine
the cause of a Lamp problem
Lamp Troubleshooting
Use the above Error Code Table, the Lamp Control Block diagram, and the Troubleshooting flow chart on the following pages
to determine if a lamp problem is due to the Lamp, Ballast, Power Supply or Light Engine.
