Mitsubishi Wi-Fi Control User Manual

5

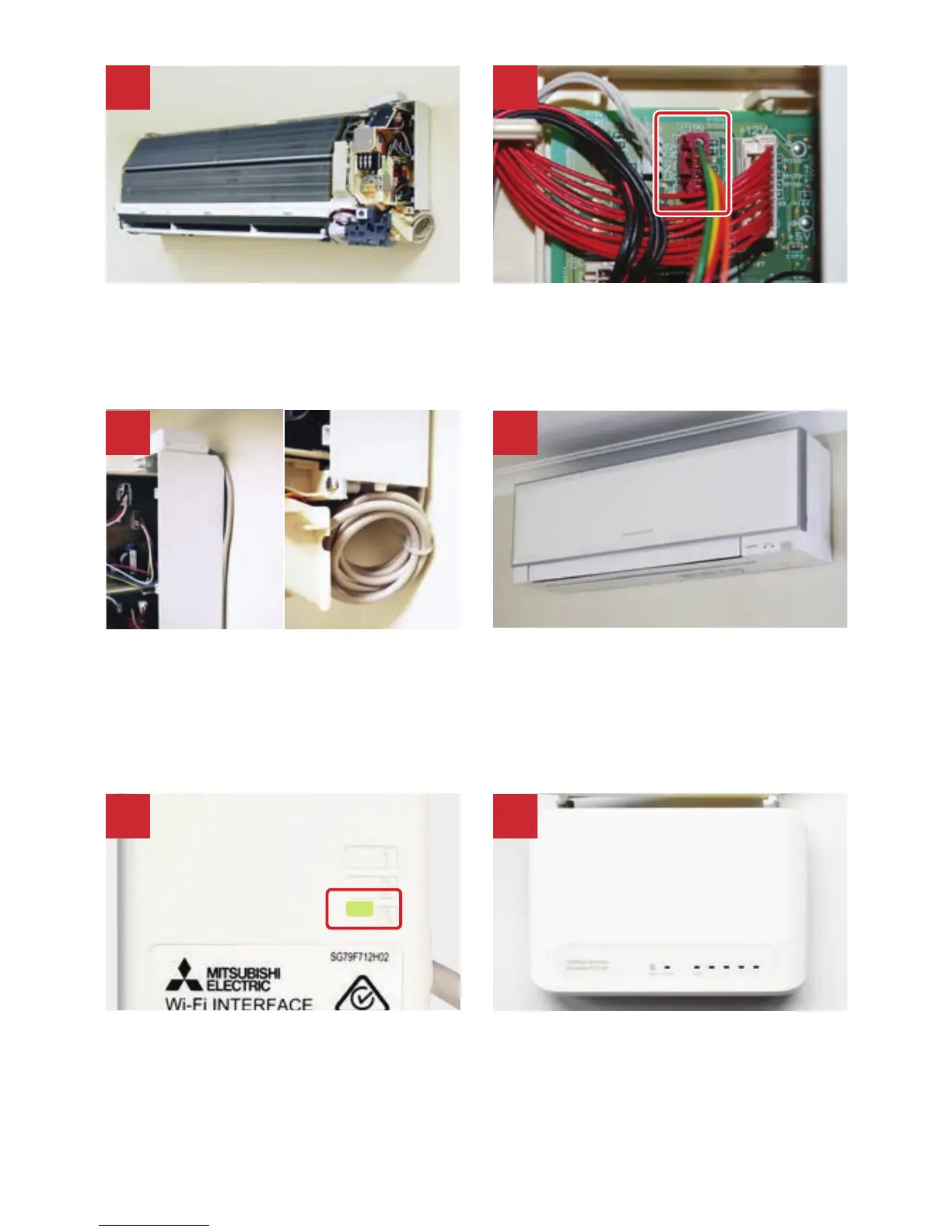

Run the cables down the back of
the unit with the other cables. Tuck
cabling away and secure. Adapter
can be placed on top of window.
Reassemble the indoor unit and
restore power to the system.
Check that the MAC-559IF-E
Adaptor is flashing. The install has
now been completed.
The adaptor is now able to be
connected to the user’s router. Steps for
this are shown on the following pages.
65
7 8
Remove the cover of the indoor
unit, the cable terminal, and the
cover to the control board.
Locate the CN105 port* on the
main control board and connect
the MAC-559IF-E Adaptor.
3 4
*Note: CN105 connection on some MSZ-GE models is located below the remote control
sensor of indoor unit. The above illustrates high wall unit installation. Installation and
appearance will vary depending on indoor model type.
