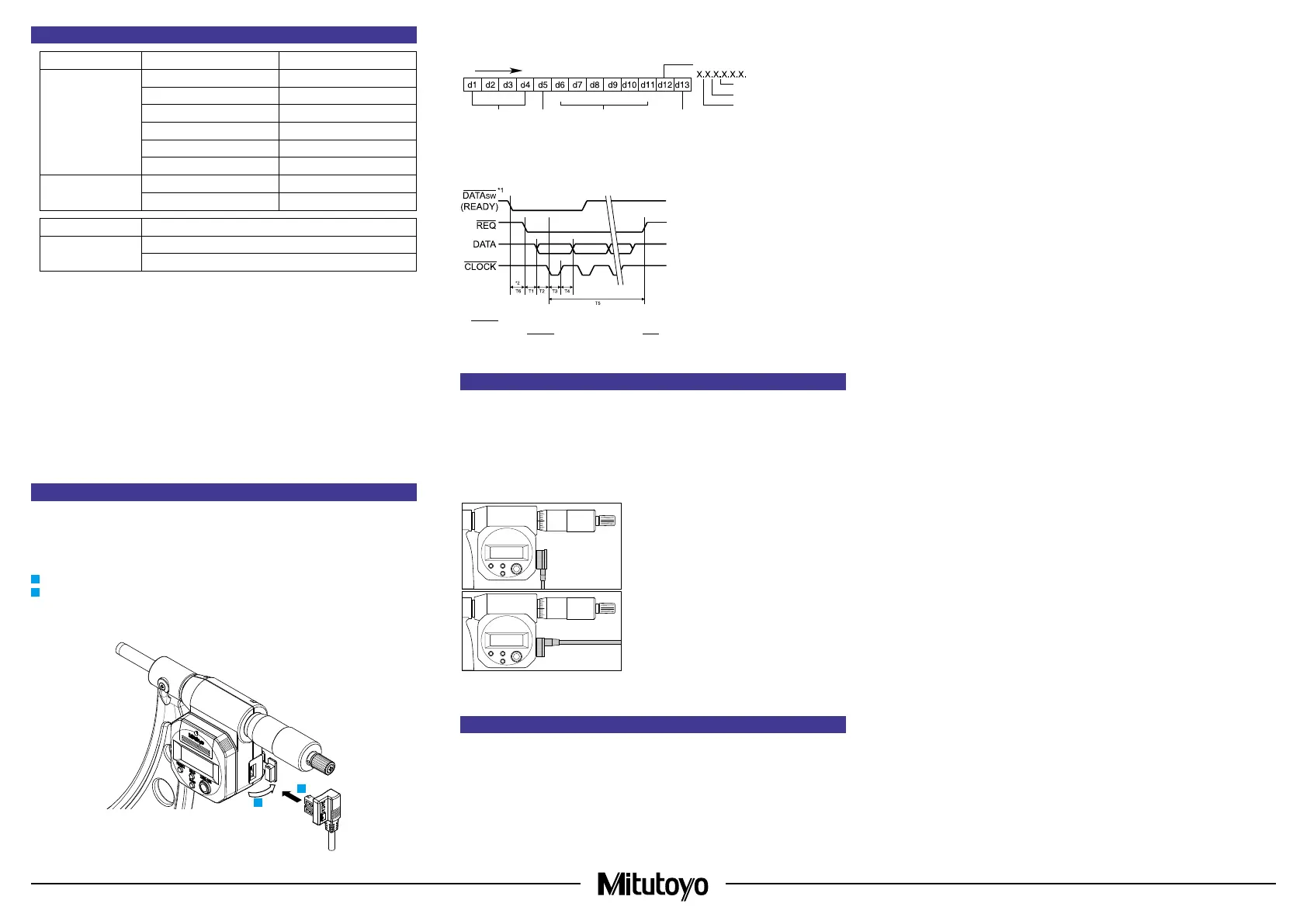

11. Specifications
Series No. Maximum measuring length Maximum permissible error JMPE*1
293
325, 350, 375 mm ±6 μm
400, 425, 450 mm ±7 μm
475, 500 mm ±8 μm
13, 14, 15 in ±0.0003 in
16, 17, 18 in ±0.00035 in
19, 20 in ±0.0004 in
389
25 mm ±5 μm
1 in ±0.00035 in
Series No. Spindle feed error (20 °C)
340
3 μm
0.00015 in
*1: Maximum permissible error for indicated value via contact with the full measuring face J
MPE (20 °C).
Resolution: 0.001 mm
0.00005 in (in/mm products only)
Display unit: LCD (6-digit and minus sign)
Power supply: Button type silver-oxide battery (SR44 No.938882), x2
Battery life: Approximately 1.8 years
Temperature range: 5 °C to 40 °C (operating temperature), -10 °C to 60 °C (storage temperature)
Standard accessories: Phillips screwdriver (No. 05CAA952)
CE marking/
UKCA marking:
EMC Directive/Electromagnetic Compatibility Regulations: EN 61326-1
Immunity test requirement: Clause 6.2 Table 2
Emission limit: Class B
RoHS Directive/The Restriction of the Use of Certain Hazardous Substances in
Electrical and Electronic Equipment Regulations: EN IEC 63000
12. Output Function
■ Display Value External Output
The display value can be output to a device by connecting the product and the external device with a connecting cable
(optional accessory).
■ Connecting Cable Installation Method
1
Remove the connector cap.
2
Mount the connecting cable plug.
Tips
Note that using this product in a location with high noise may cause malfunctions (ickering or errors).
1
2
■ Output Data Format
(1) Output order
(2) All "F"
(3) Sign
(4) Measured value
(5) Decimal point
(6) Unit
（1）
MSD LSD
（5）
（2）
（1111）
（4）
（3）
+:0（0000）
–:8（0001）
3（1100
）
4（0010
）
5（1010
）
（6）
mm:0（0000）
in:1（1000）
■ Timing Chart
0 ms ≤ T1 ≤ 200 ms
0.1 ms ≤ T2 ≤ 2 ms
0.1 ms ≤ T3 ≤ 2 ms
0.1 ms ≤ T4 ≤ 2 ms
0 ms ≤ T5 ≤ 130 ms
T6 ≤ 85 ms
*1: DATAsw is LOW while the data output key is being pressed.
*2: The time T6 until DATAsw goes to the LOW level and REQ
is input is determined by the data processing device
performance.
13. Optional Accessories
■ Connecting Cable
Recommended products: L-type (The cable will not interfere when the thimble is operated.)
• Connecting cable: No.04AZB512 (1 m)
• Connecting cable: No.04AZB513 (2 m)
Straight type (Be careful of the cable when operating the thimble.)
• Connecting cable: No.959149 (1 m)
• Connecting cable: No.959150 (2 m)
L-type
Straight type
For optional accessories other than the above, see the General Catalog.
14. Off-Site Repairs (Subject to Charge)
Off-site repair (subject to charge) is required in the case of the following malfunctions. Please contact the agent where
you purchased the product or a Mitutoyo sales representative.
• Faulty spindle operations
Scratches on the spindle may cause interference while the spindle is retracting, causing faulty operations.
Rust on the spindle may also cause faulty operations.
• Inconsistent measured values
Burrs or nicks generated by an impact on the measurement surfaces may affect measurement repeatability.
• Count value errors/faulty operations
If the thimble of this product is retracted too far, the internal sensor will be damaged. This may cause count errors or
faulty operations.
