Attention: Make sure that the aircraft is set on a flat and still surface for the initialization
detection.
A

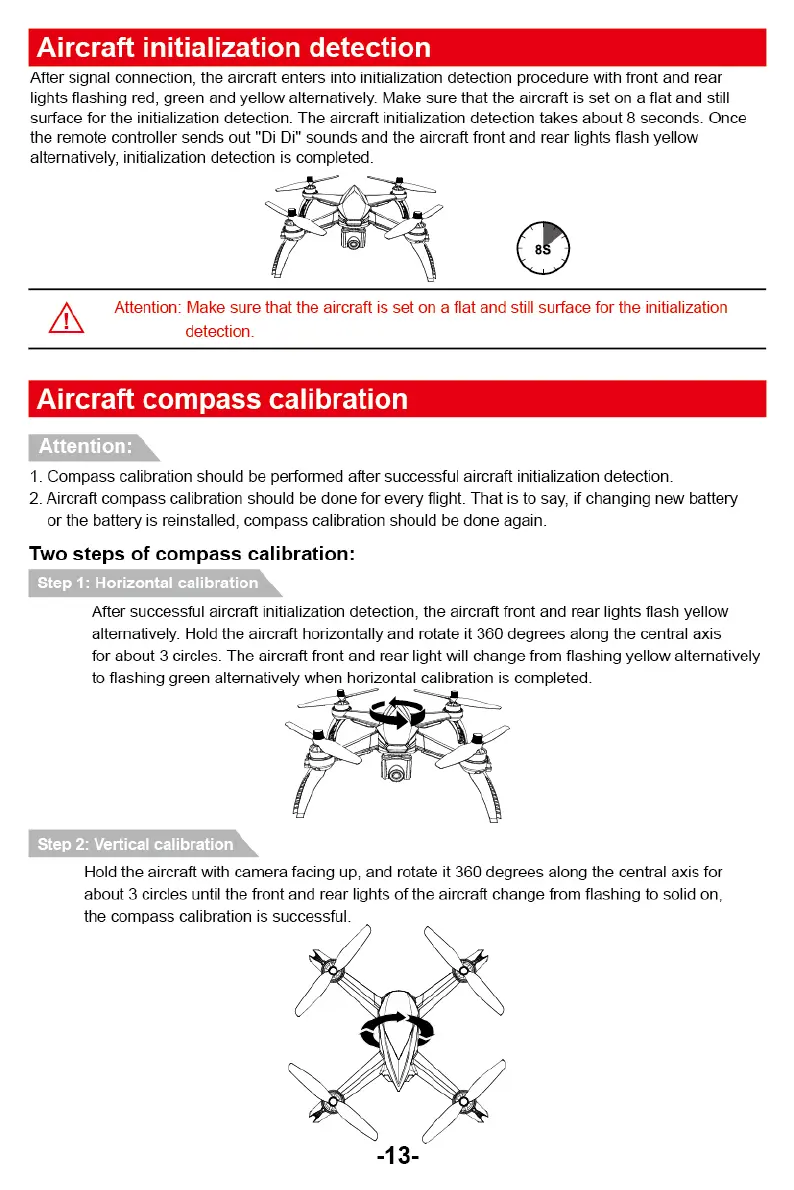

Aircraft initialization detection
After signal connection, the aircraft enters into initialization detection procedure with front and rear
lights flashing red, green and yellow alternatively. Make sure that the aircraft is set on a flat and still
surface for the initialization detection. The aircraft initialization detection takes about 8 seconds. Once
the remote controller sends out "Di Di" sounds and the aircraft front and rear lights flash yellow
alternatively, initialization detection is completed.
Aircraft compass calibration
Attention:
t Compass calibration should be performed after successful aircraft initialization detection.
2. Aircraft compass calibration should be done for every flight. That is to say, if changing new battery
or the battery is reinstalled, compass calibration should be done again.
Two steps of compass calibration:
Step 1: Horizontal calibration
After successful aircraft initialization detection, the aircraft front and rear lights flash yellow
alternatively. Hold the aircraft horizontally and rotate it 360 degrees along the central axis
for about 3 circles. The aircraft front and rear light will change from flashing yellow alternatively
to flashing green alternatively when horizontal calibration is completed.
Hold the aircraft with camera facing up, and rotate it 360 degrees along the central axis for
about 3 circles until the front and rear lights of the aircraft change from flashing to solid on,
the compass calibration is successful.
-13-
