MJX 5W - Product Assembly; Propeller Installation and Removal

Product assemble
w t ❑ attach and detach the propellers
Attach propeller A:
Put the propeller with marking 'A into the clockwise rotating motor shaft (the side marked A should be
upwards). Then, put the silicone rubber ring into the center bore of the propeller. Last, choose the
propeller screw with dot and put it onto the motor shaft; tighten the screws by counter-clockwise.
Attach propeller B:
Put the propeller with marking 'B' into the counter-clockwise rotating motor shaft (the side marked B
should be upwards). Then, put the silicone rubber ring into the center bore of the propeller. Last,
choose the propeller screw without dot and put it onto the motor shaft; tighten the screw by clockwise.
Detach the propellers:
Hold the aircraft brushless motor and unscrew the screw without dot by counter-clockwise (screw with
dot should be rotated by clockwise) to take apart the propeller.

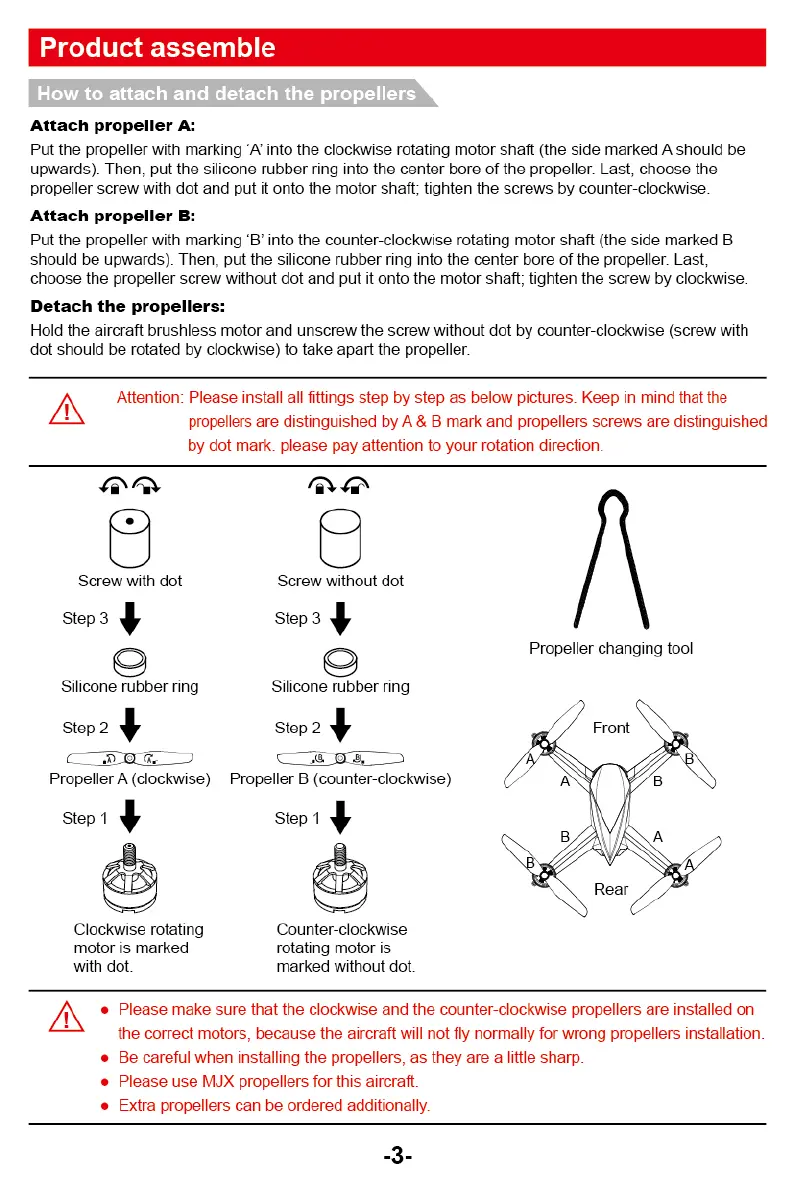

Attention: Please install all fittings step by step as below pictures. Keep in mind that the
propellers are distinguished by A & B mark and propellers screws are distinguished
by dot mark. please pay attention to your rotation direction.
Screw with dot
Step 3 IF
Silicone rubber ring
Step 2
Propeller A (clockwise)
Step 1
Screw without dot
Step 3 IF
Propeller changing tool
61.)
*aro
Silicone rubber ring
Step 2 IF
Propeller B (counter-clockwise)
Step 1 IF
Clockwise rotating

Counter-clockwise
motor is marked

rotating motor is
with dot.

marked without dot.
• Please make sure that the clockwise and the counter-clockwise propellers are installed on
the correct motors, because the aircraft will not fly normally for wrong propellers installation.
• Be careful when installing the propellers, as they are a little sharp.
• Please use MJX propellers for this aircraft.
• Extra propellers can be ordered additionally.
-3-
