Charging
converter
Pic.
3
Power adaptor
(not included)
Pic. 1
USB cable Balance charger
Pic. 2
Battery
Pic. 4
A
Warm tips:
♦
Ei 0
A3-•D ®
•
The battery plug should be connected correctly with face up( but not upside down) when
plug into the balance charger; Failure to do so will result in battery cannot charge or
charger damaged.
•
We recommend using 5V (1-2A) adaptor for charging.
•
It is not suggested to charge by computer.
II
L

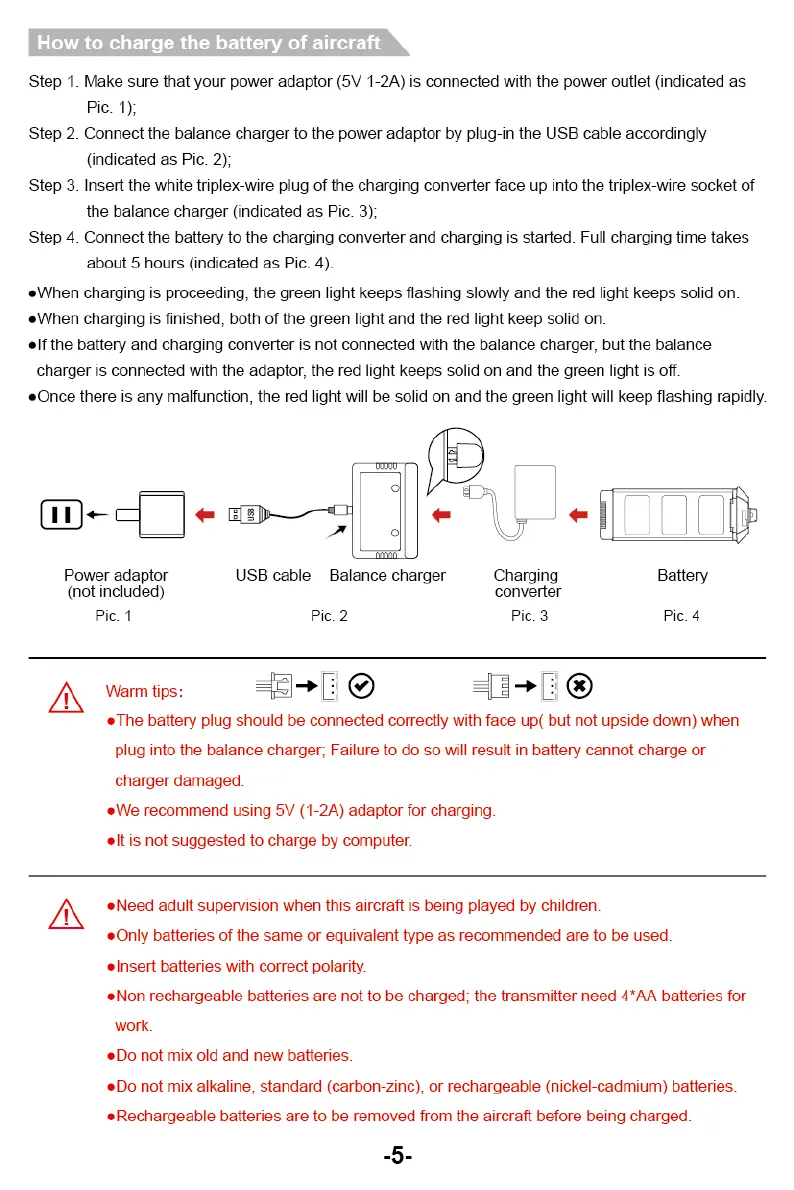

How to charge the battery of aircraft
Step 1. Make sure that your power adaptor (5V 1-2A) is connected with the power outlet (indicated as
Pic. 1);
Step 2. Connect the balance charger to the power adaptor by plug-in the USB cable accordingly
(indicated as Pic. 2);
Step 3. Insert the white triplex-wire plug of the charging converter face up into the triplex-wire socket of
the balance charger (indicated as Pic. 3);
Step 4. Connect the battery to the charging converter and charging is started. Full charging time takes
about 5 hours (indicated as Pic. 4).
■
When charging is proceeding, the green light keeps flashing slowly and the red light keeps solid on
.
When charging is finished, both of the green light and the red light keep solid on
.
If the battery and charging converter is not connected with the balance charger, but the balance
charger is connected with the adaptor, the red light keeps solid on and the green light is off.
.
Once there is any malfunction, the red light will be solid on and the green light will keep flashing rapidly.
A
•Need adult supervision when this aircraft is being played by children.
•
Only batteries of the same or equivalent type as recommended are to be used
•
Insert batteries with correct polarity.
•
Non rechargeable batteries are not to be charged; the transmitter need 4*AA batteries for
work.
•
Do not mix old and new batteries.
•
Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.
•
Rechargeable batteries are to be removed from the aircraft before being charged.
-5-
