MK-100 MAINTENANCE
The MK-100 is designed with power transmission Micro-V Belt. In order to ensure the MK-100
operates a peak efficiency, the Micro-V Belt should be inspected monthly, and changed if the Micro-V
Belt shows damage and/or excessive wear.

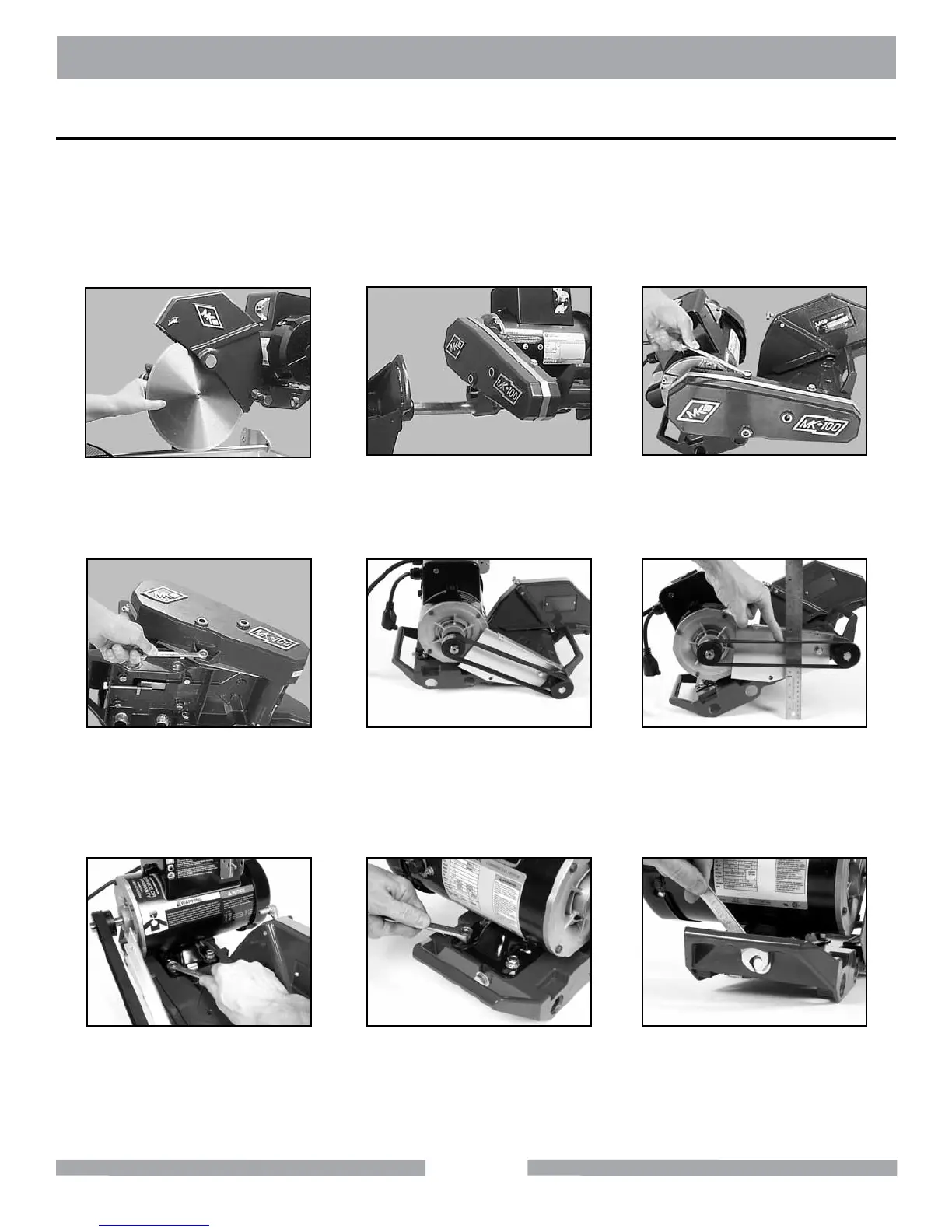

V-Belt Inspection, Adjustment and Replacement
When a new belt is installed, it should be inspected and re-tensioned after the first
forty-eight (48) hours of operation.
NOTE:
(A)
Remove the Diamond Blade.
(B)
Remove the Cutting Head
(See Cutting Head Adjust-
ment Pg. 25).
(C)
Remove the two top
Belt Guard Bolts.
(D)
Remove Belt Guard
bottom bolt.
(E)
Inspect the Micro-V Belt for
cracks, fraying, separation and
wear. Go to step H if
replacement is required.
(F)
Check belt for proper tension.
If tension correct, go to step Q
(proper tension should be
1/8-inch deection).
(G)
Loosen the two front motor
mounting bolts. If re-tension-
ing only, go to step N.
(H)
Loosen the two back motor
mounting bolts.
(I)
Loosen the Motor Adjustment Strap.
