34
MK-100 MAINTENANCE
(J)

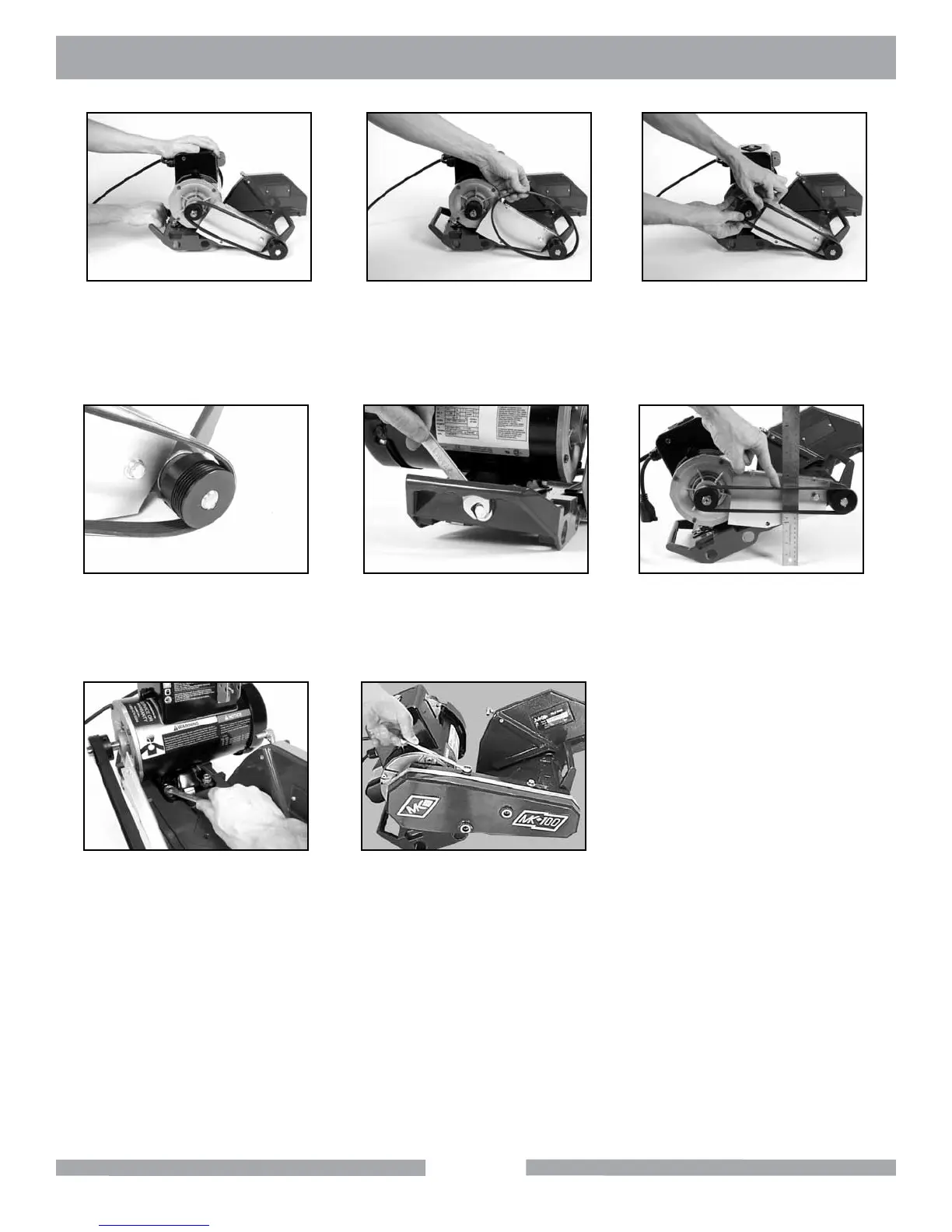

Push the motor toward the
front of the Cutting Head to
loosen the V-Belt.
(K)
Remove the V-Belt.
(L)
Install the new V-Belt
(MK Diamond Part No. 158194).
(M)
Verify the V-Belt is seated in
the grooves of both pulleys.
(N)
Tighten the Motor Adjustment
Strap to remove slack.
(O)
Check V-Belt tension (proper
tension 1/8-inch) Repeat steps N
and O until proper Micro-V Belt
tension is achieved.
(P)
Tighten the four motor
mounting bolts.
(Q)
Install the Belt Guard.
