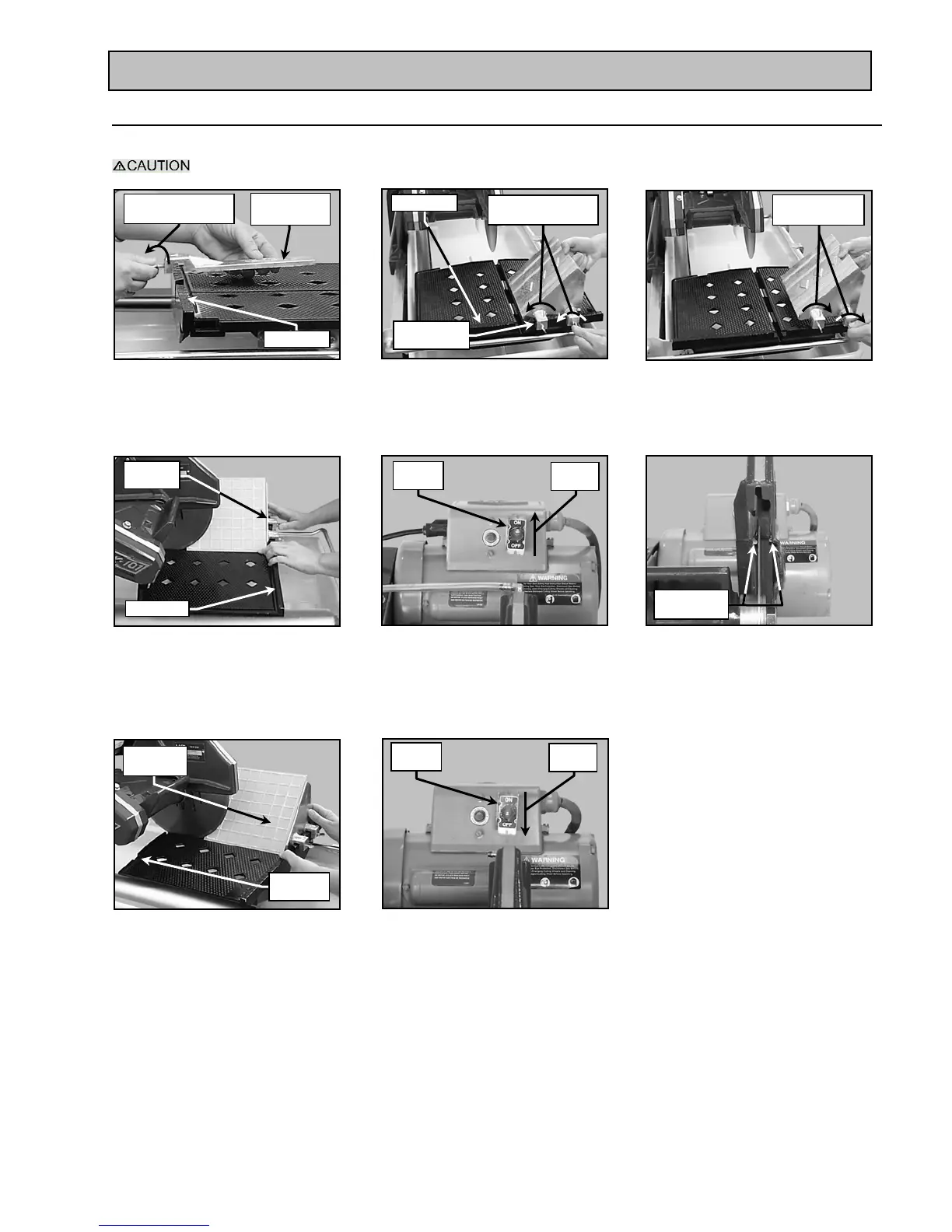

SETUP, ADJUSTMENT and OPERATION
3. 45º Miter Cutting:
NOTE: To cut 45º Miters, the 45º Bullnose Miter Guide (MK Diamond Part No. 134585-MK) should be used.
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for which it was designed.
Cooling Flow
Points
On
Position
ON/OFF
Switch
Off
Position
ON/OFF
Switch
(A)
Remove the Adjustable Cutting
Guide
Turn counter-
clockwise to loosen
Ruler/Stop
Adjustable
Cutting Guide
(E)
Turn the motor ON
(F)
Verify proper cooling flow on
both sides of the blade (See
Maintenance Section to
increase/decrease flow)
(H)
Turn the motor OFF when
work is complete
(B)
Place the 45º Bullnose Miter Guide
on the Ruler/Stop
(C)
Position the 45º Bullnose Miter
Guide and tighten the
retaining thumbscrew
(D)
Position the tile on the 45º Bullnose
Miter Guide and the
Ruler/Stop
(G)
Perform the cut
Align Guide
to Ruler/Sto
p
Turn counter-
clockwise to loosen
Ruler/Stop
Turn Clockwise
to tighten
Ruler/Stop
Bull Nose
Mite
r
Hold Work
in Position
Direction
of Cu
t
