MK-101 w/JCS Stand Revision 04/05, Effective Date August 19, 2005
Page 24

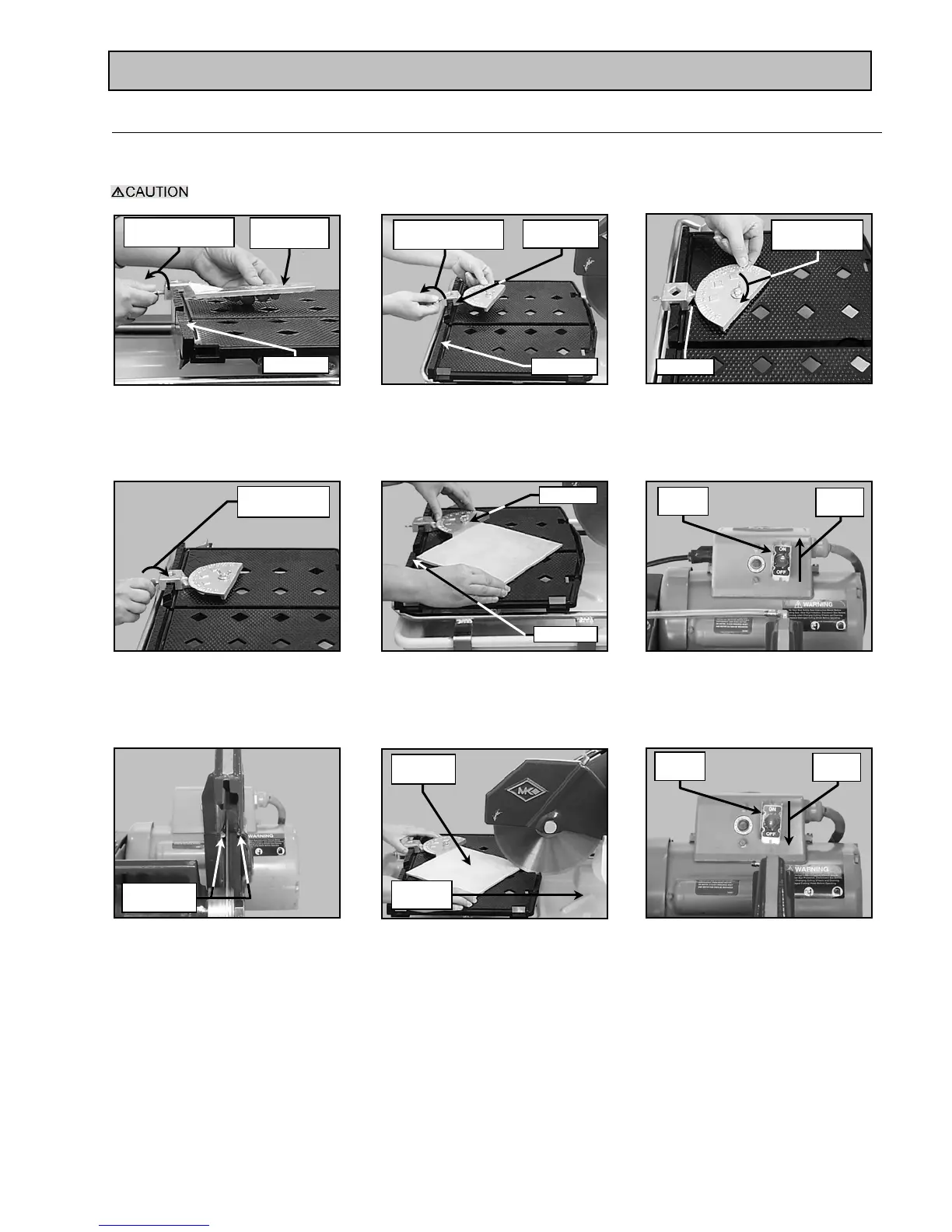

SETUP, ADJUSTMENT and OPERATION
4. Off-angle Cutting:
NOTE: To cut angles other than 45º angles or Miters, a 90º Protractor (MK Diamond Part No. 134569-MK) should be
used.
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for which it was designed.
Cooling Flow
Points
On
Position
ON/OFF
Switch
Off
Position
ON/OFF
Switch
(D)
Position the tile against the 90º
Protractor and the Ruler/Stop
(D)
Position the 90º Protractor
and tighten the
retaining thumbscrew
(A)
Remove the Adjustable Cutting
Guide
Turn counter-
clockwise to loosen
Ruler/Stop
Adjustable
Cutting Guide
(E)
Turn the motor ON
(F)
Verify proper cooling flow on
both sides of the blade (See
Maintenance Section to
increase/decrease flow)
(H)
Turn the motor OFF when
work is complete
(B)
Place the 90º Protractor on
the Ruler/Stop
(C)
Set the desired angle and tighten the
thumbscrew
(G)
Perform the cut
Turn counter-
clockwise to loosen
Align Guide
to Ruler/Sto
p
Ruler/Stop
Set Angle
Turn Clockwise
to tighten
Turn Clockwise
to tighten
Protractor
Ruler/Stop
Hold Work
in Position
Direction
of Cu
t
