Setup Cha

ter Two: Installation

Setup

Dimensions

Note

All dimensions are listed in inches with millimeters referenced in

parentheses. The tolerances for the dimensions are ±0.01 inches (X.X)

and ±0.01 inches (X.XX).

3.69

(93.7)

2.69

(68.3)

3.28

(83.3)

Mountin

Hole

4 x 0.16 (4.06) DIA

1249A

Serial #:

Model #:

0123456789

MKS Instruments, Inc. Made in the USA

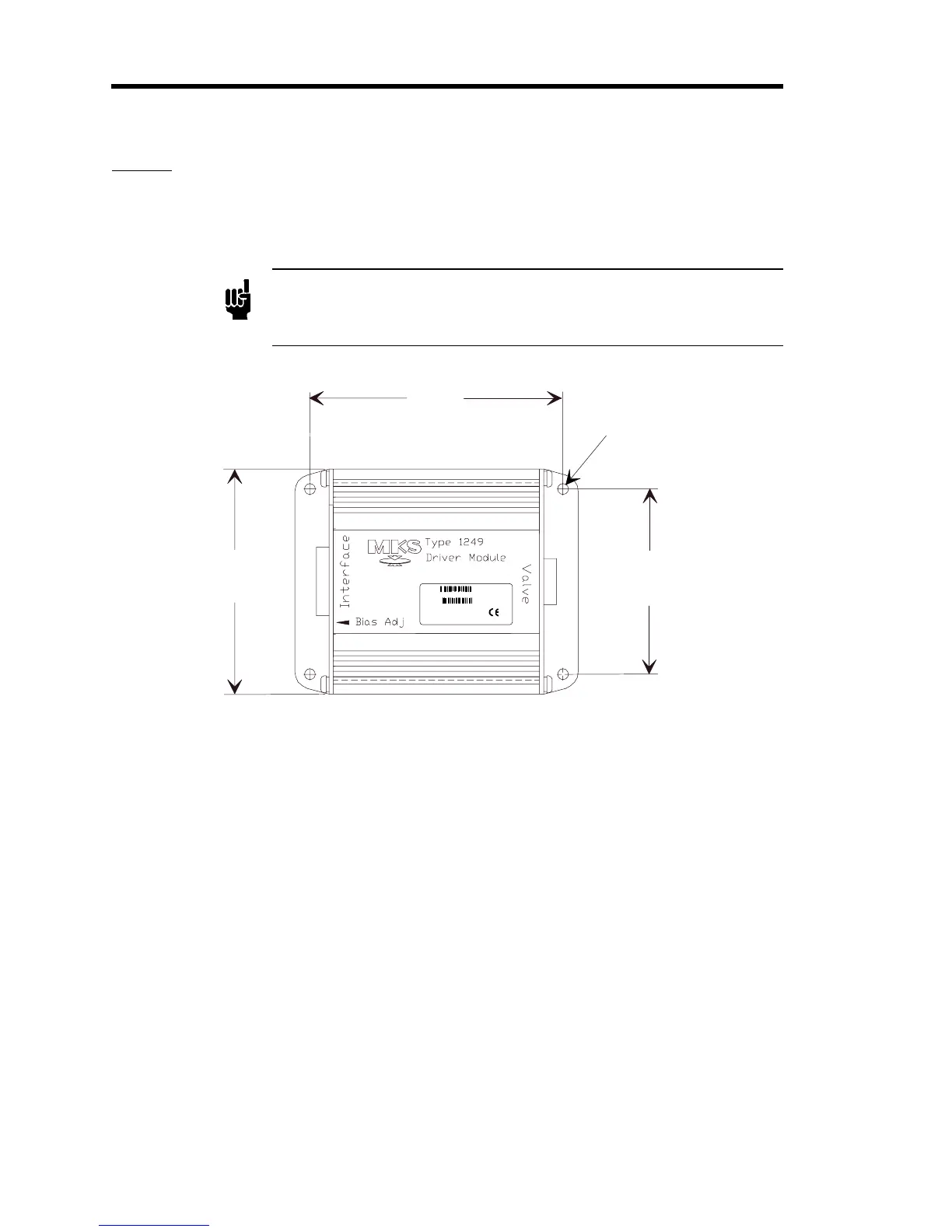

Figure 3: Top View Dimensions of the 1249 Unit
