Technical Specifications
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com

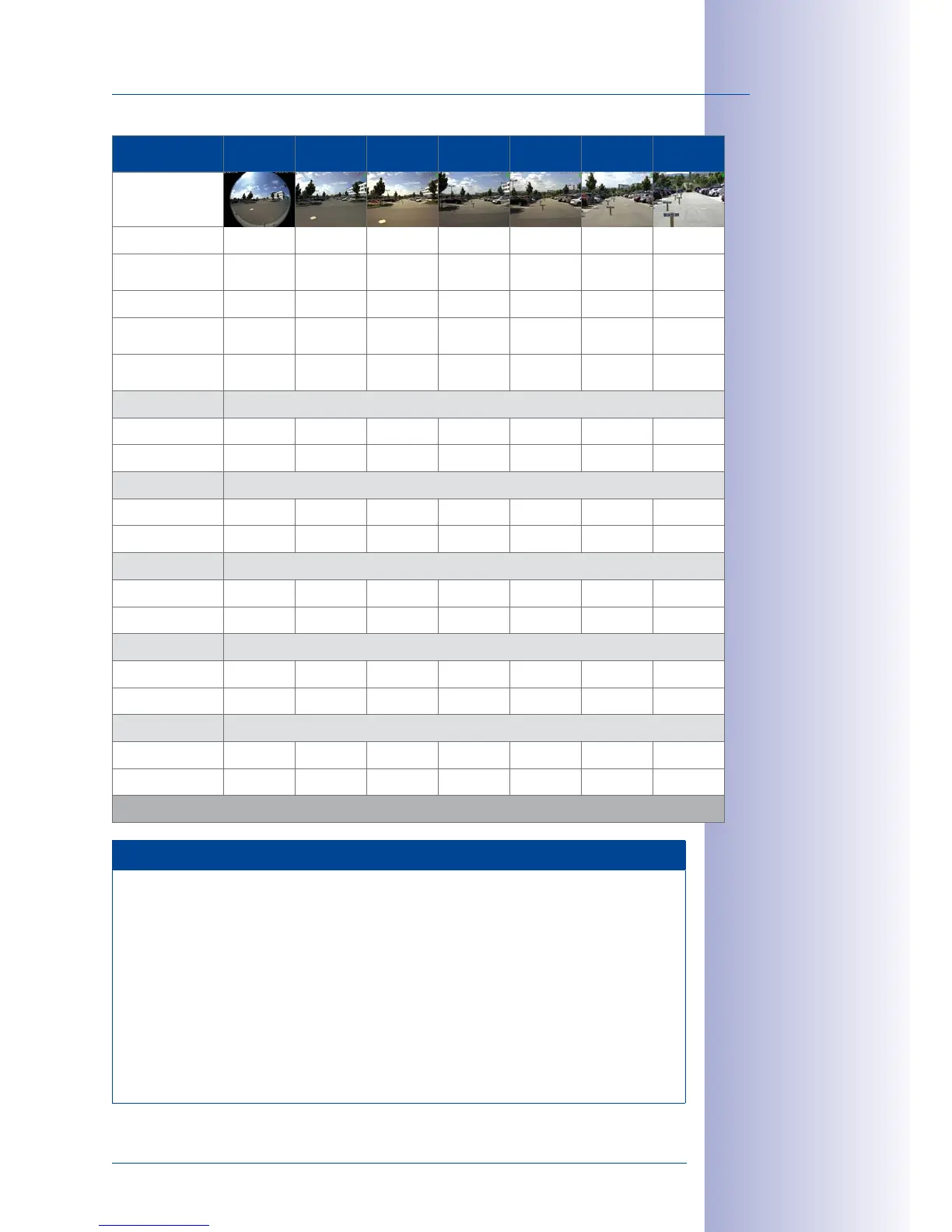

Five-Megapixel
Sensor Lenses
L12 L23* L25 L38 L51 L76 L160
Original image
35mm equiv. 12mm 23mm 25mm 38mm 51mm 76mm 160mm
Nominal focal
length
1.8mm 3.6mm 4mm 6mm 8mm 12mm 25mm
Aperture 2.0 1.8 2.0 2.0 2.0 2.0 2.5
Horizontal image
angle
180° 92° 82° 55° 40° 27° 13°
Vertical image
angle
160° 68° 61° 41° 30° 20° 10°
At 1m distance
Image width infinite 2.1 1.7 1.0 0.7 0.5 0.2
Image height 11 1.3 1.2 0.7 0.5 0.4 0.2
At 5m distance
Image width infinite 10.4 8.7 5.2 3.6 2.4 1.1
Image height 55 6.8 5.9 3.7 2.7 1.8 0.9
At 10m distance
Image width infinite 20.7 17.4 10.3 7.2 4.9 2.3
Image height 110 13.5 11.9 7.5 5.4 3.6 1.7
At 20m distance
Image width infinite 41.4 34.7 20.6 14.5 9.7 4.6
Image height 220 27 23.7 14.9 10.8 7.2 3.4
At 50m distance
Image width N.A. 104 86.8 51.5 36.2 24.3 11.4
Image height N.A. 67.5 59.3 37.3 27.0 18.0 8.6
*Available from Q4/2014
Notes
The specified focal lengths of the MOBOTIX lenses do not reflect the actual focal length
of the lenses, but the focal length (Lxx mm) converted to 35mm camera format. For
example, the MOBOTIX L25 Super Wide-Angle lens has an actual focal length of
4mm. This would be the equivalent of 25mm on a 35mm camera. It is therefore
referred to as an L25. Since the image sensors in digital cameras have dierent
sizes, converting the focal lengths to 35mm camera as a known format allows the
image formats and the fields of vision of the dierent lenses to be calculated and
compared more easily. Another benefit is that you can easily set a 35mm camera
(analog or digital) to the same focal length as the MOBOTIX lens (Lxx) to obtain the
same field of vision. This approach greatly facilitates lens selection.
S15M only avail-
able with L12 lens
S15D sensor modules
can be freely replaced
Sensor modules L23
through L160 have an
antireective coating
