2.1.3 S15M FlexMount Installation Options
Unlike the S15D, the S15M has just one lens, which does not have a flexible sensor cable,
but is directly connected to the camera housing. Contrary to conventional single-lens
cameras, the S15M has come up with a very neat trick:
The camera housing can be mounted concealed behind a wall up to 6.4mm/0.25in thick
(wood paneling, stainless steel panel, etc.) with a round opening measuring 34mm/1.34in.
The S15M can simply be fixed behind the wall and leave only the lens visible.
This allows the following installation options:
• Wall- and ceiling-mounting behind correspondingly thin or countersunk panels/
cover plates.
• Individual mounting solutions such as installation in industrial equipment, paneling,
air ducts, mail boxes, homemade mounts, etc.
Note on AudioMount
This installation frame with self-adhesive rear side allows quick mounting of the S15M
behind stainless steel panels or similar materials. The mount includes pre-installed
microphone and speaker.

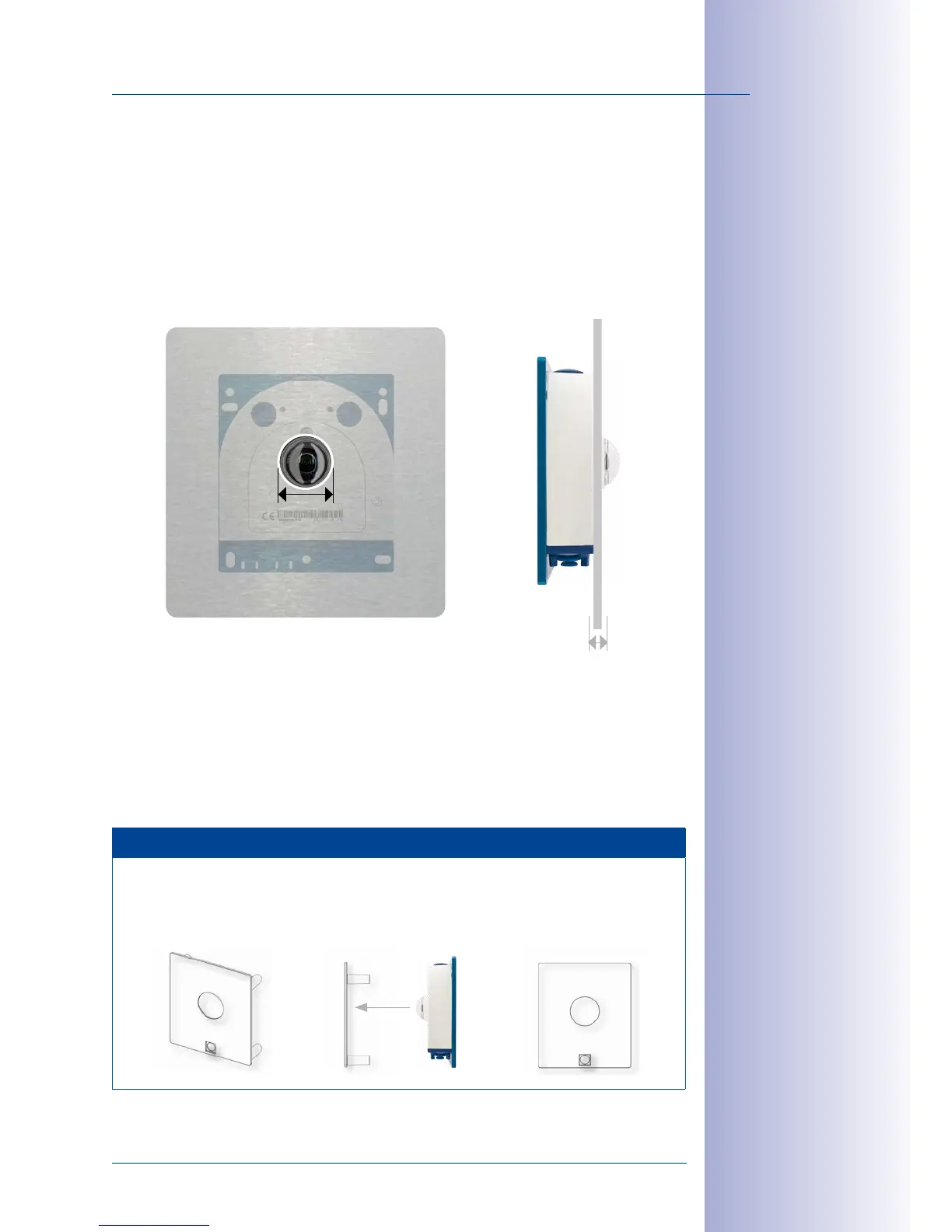

max. 6.4mm/
0.25in
34mm/1.34in
Open www.mobotix.com,
go to Products > S15
FlexMount to view
and order further
accessories for the
MOBOTIX S15 system
