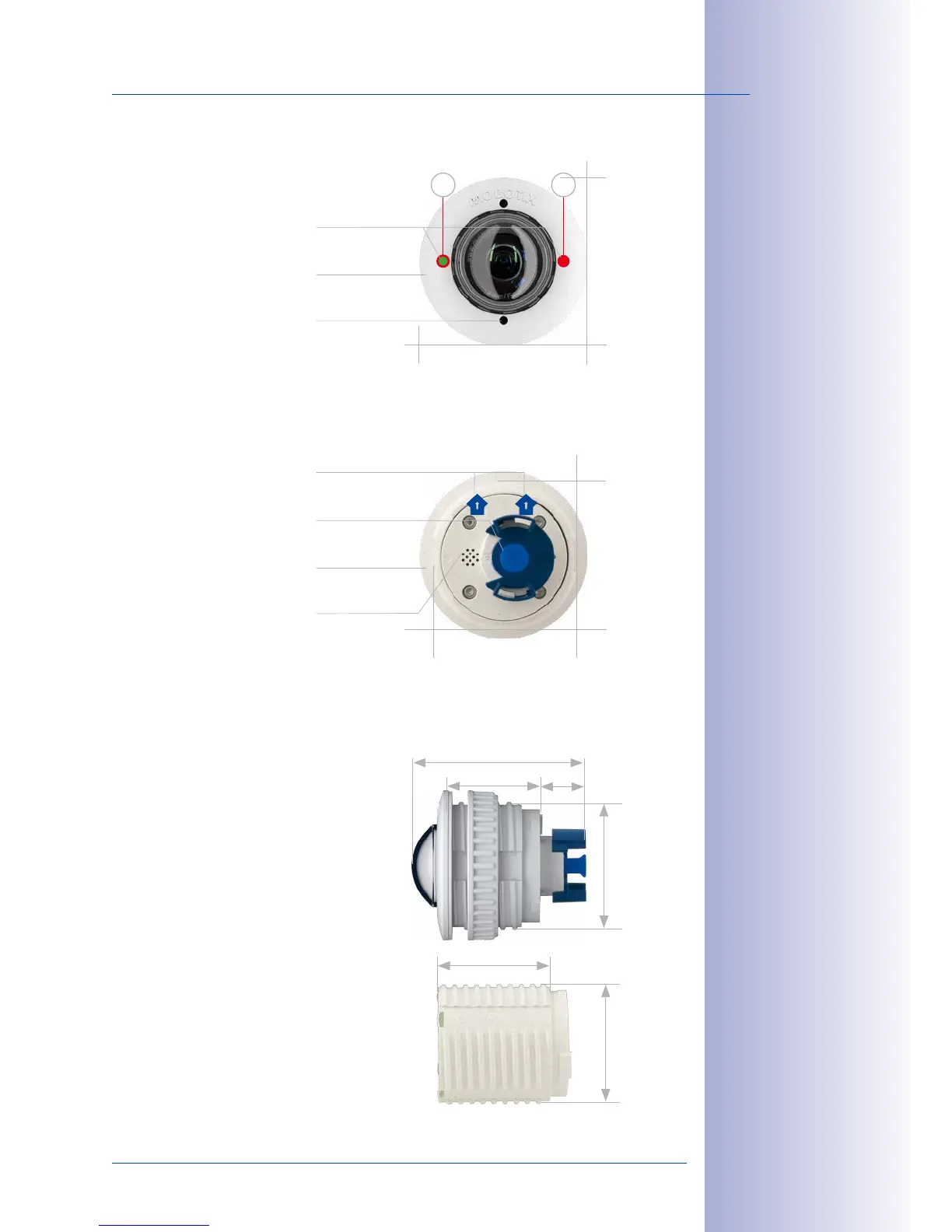

Delivered Parts and Dimensions
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
Front View
Rear View
Side View
Top = top border of
image (North)
Diam. 50mm/2in
Diam. 50mm/2in
21
Sensor module
housing
LEDs
Microphone
LED default settings:
1 Power (on), Error (ashes)
2 Recording (ashes)
Diam. 43mm/1.7in
Diam. 43mm/1.7in
Sensor module
housingl
Markers for top
Sensor cable con-
nection
Pressure compen-
sation
30mm/1.2in
58mm/2.3in
Diam. 43mm/1.7in
Diam. 43mm/1.7in
15mm/0.6in
40mm/1.6in
Sensor module
weight without lock ring: 85g
weight with lock ring: 91g
Extension
