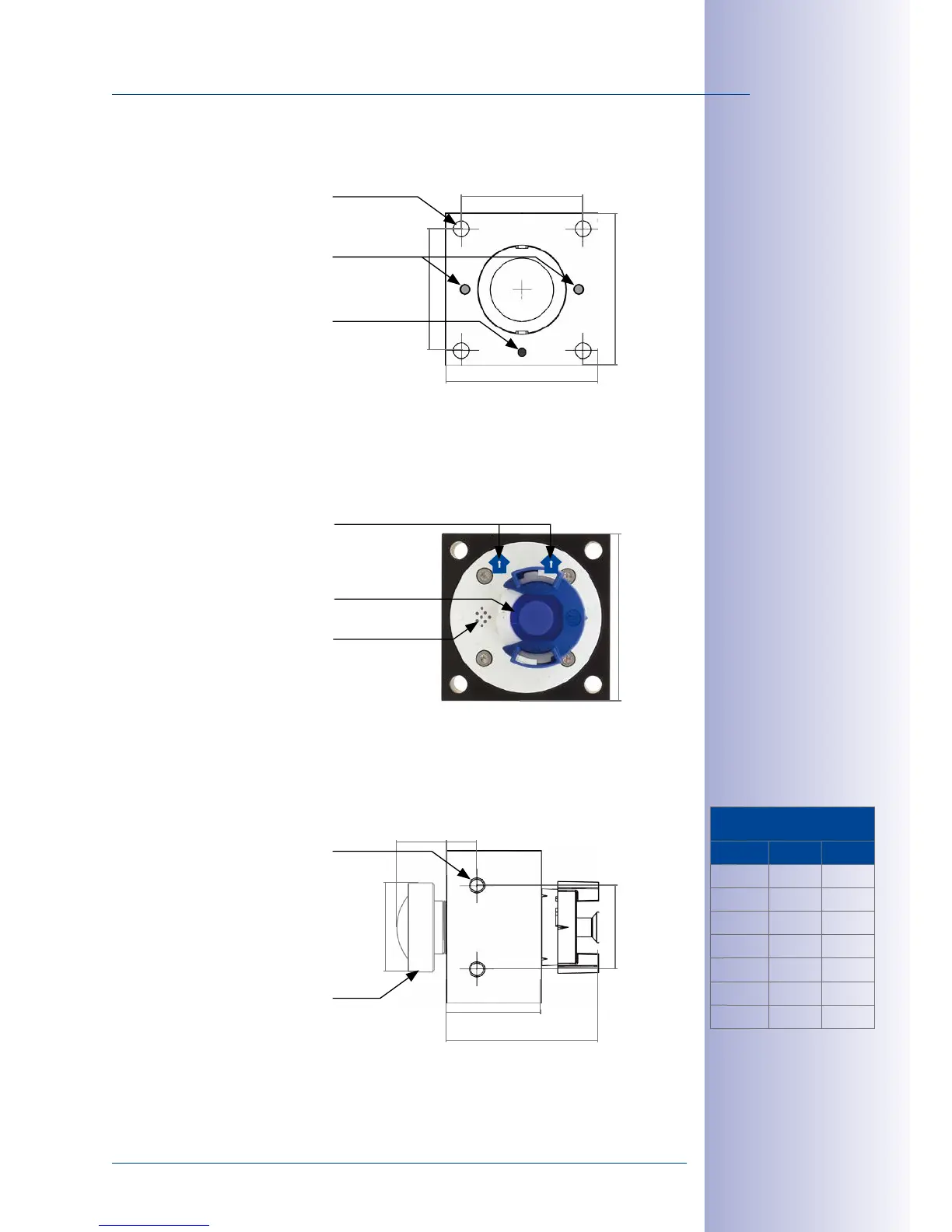

Delivered Parts and Dimensions
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
Front View
Back View
Side View
Top = upper image bor-
der (North direction)
40mm
32mm
32mm
40mm
Microphone
4 holes 4.2mm diam.
Status LEDs
Connector for sensor
cable
Pressure vent
⧄ 40mm
Arrows indicate
top
Measurements
dep. on Lens
Lens D (mm) L (mm)
L12 23.5 13.0
L25 22.0 17.0
L38 22.0 18.2
L51 20.0 11.7
L76 22.0 17.5
L160 22.3 17.8
L320 27.0 42.5
22mm
40mm
25mm
8mmL
D
2 tap holes/side
M4x5mm
Lens
