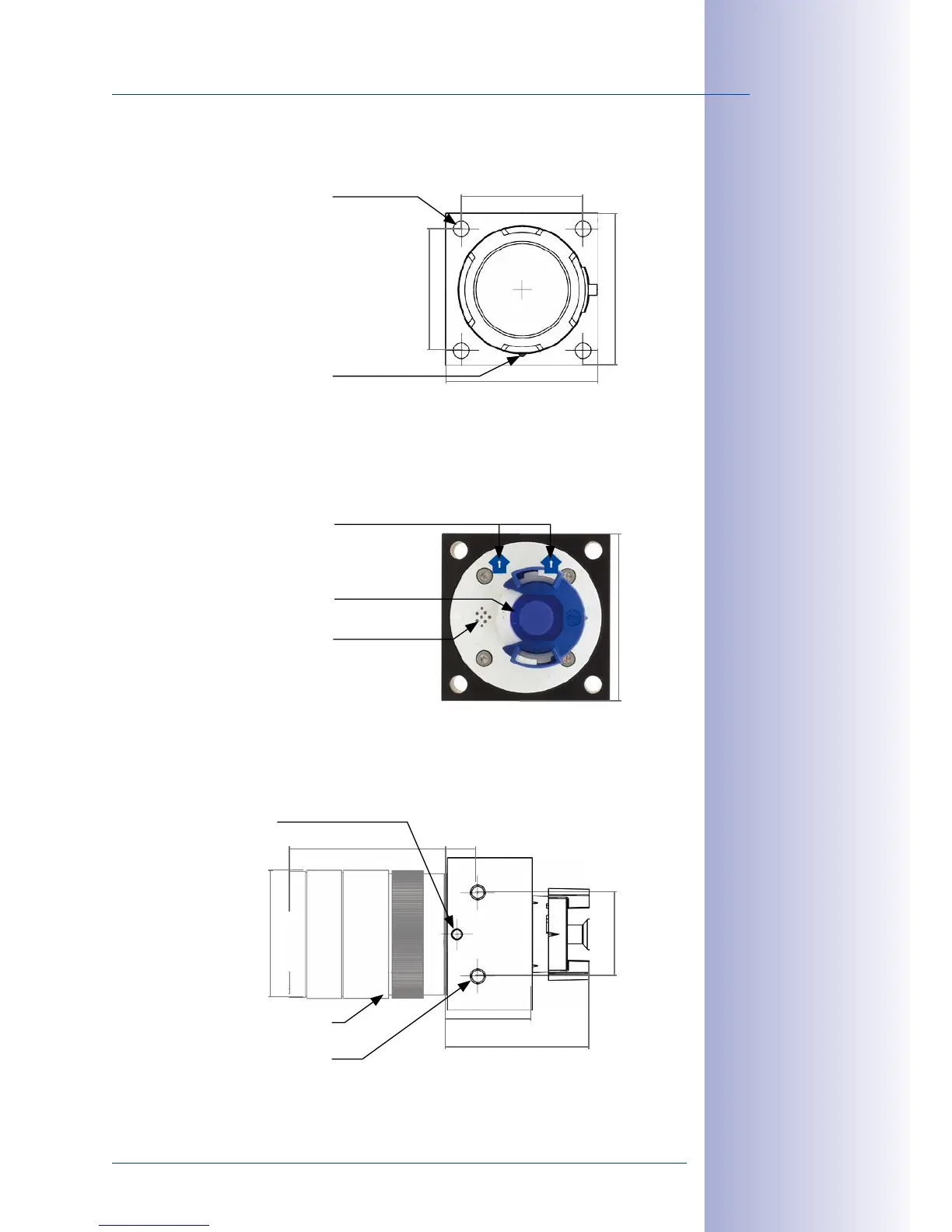

Delivered Parts and Dimensions
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
Front View
Back View
Top View
Top = upper image bor-
der (North direction)
40mm
32mm
32mm
40mm
Microphone
4 holes 4.2mm diam.
Connector for sensor
cable
Pressure vent
⧄ 40mm
Arrows indicate
top
22mm
37.6mm
22.5mm
8mm43.4mm
Ø34mm
2 tap holes/side
M4x5mm
Lens (needs to be ordered
separately)
Lock screw (Allen
wrench 1.5mm)
