Determining the Installation Position
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
Ceiling-Mounted
Indoor installation is mostly on suspended ceilings and is extremely easy. A round hole
with a diameter of 45mm/1.77in is all that is needed, through which a S15D sensor
module with connection cable and attached ferrite is pushed down through the ceiling
panel, fixed from behind using a nut and then connected to the concealed base module
hidden behind a ceiling panel (connector and lock).
It should be ensured when selecting installation sites that each of the sensor cables do not
exceed 2m/6.6ft. The theoretical maximum distance between the two sensor modules
of a S15D where the base module is placed centrally is therefore 4m/13.1ft.
Caution
If there is a risk of water collecting on the back of the sensor modules (for example,
in outdoor areas or in the event of extreme humidity), the modules should not be
installed pointing downwards!

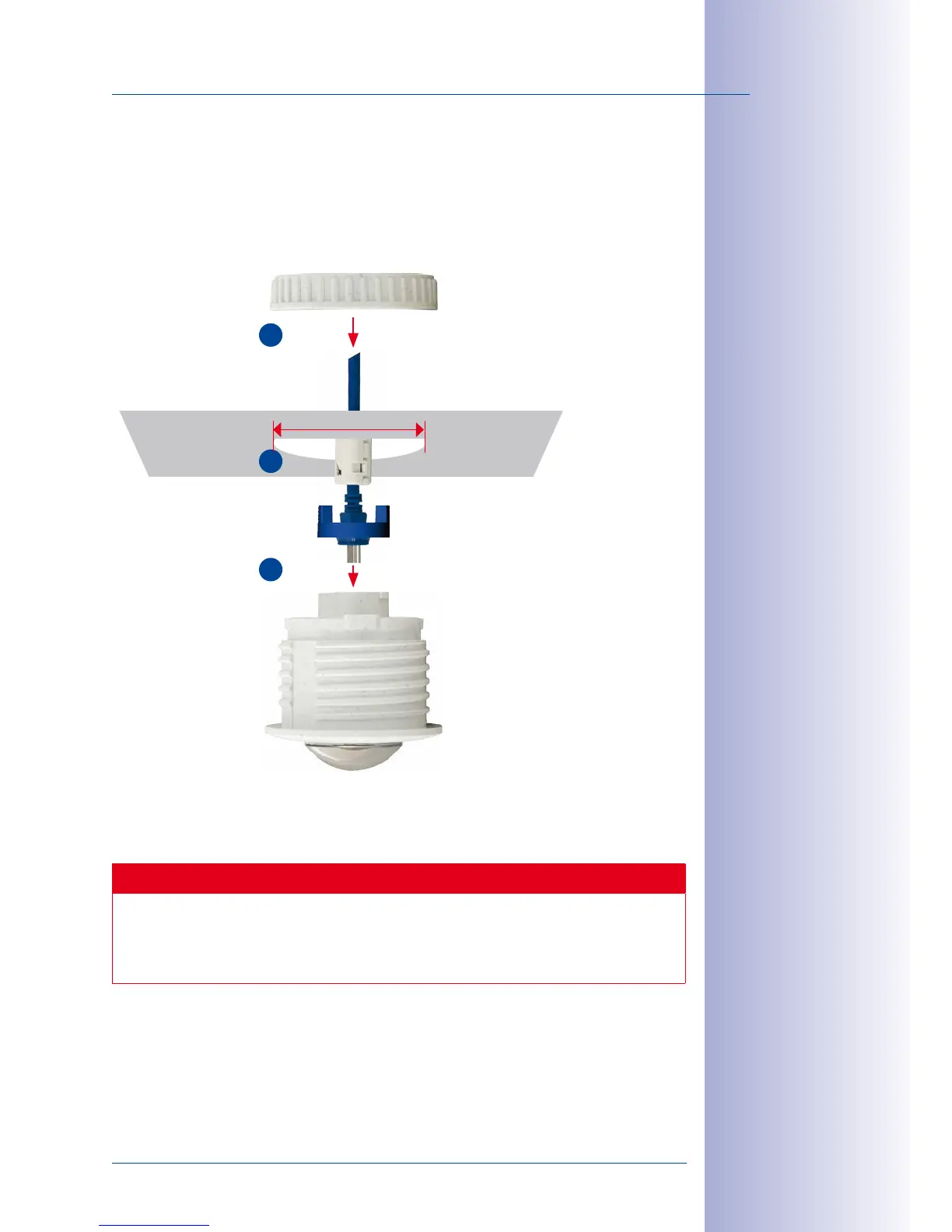

Step 1:
Plug in connection cable, secure
with bayonet catch and attach
ferrite
Step 2:
Drill hole (43mm/1.69in), feed
through cable with sensor module
Step 3:
Secure sensor module with nut
1
2
3
Diam. 43 to 45mm/1.69 to 1.77in
