Garnet Tackle
Ratlines
completed
Ratlines...

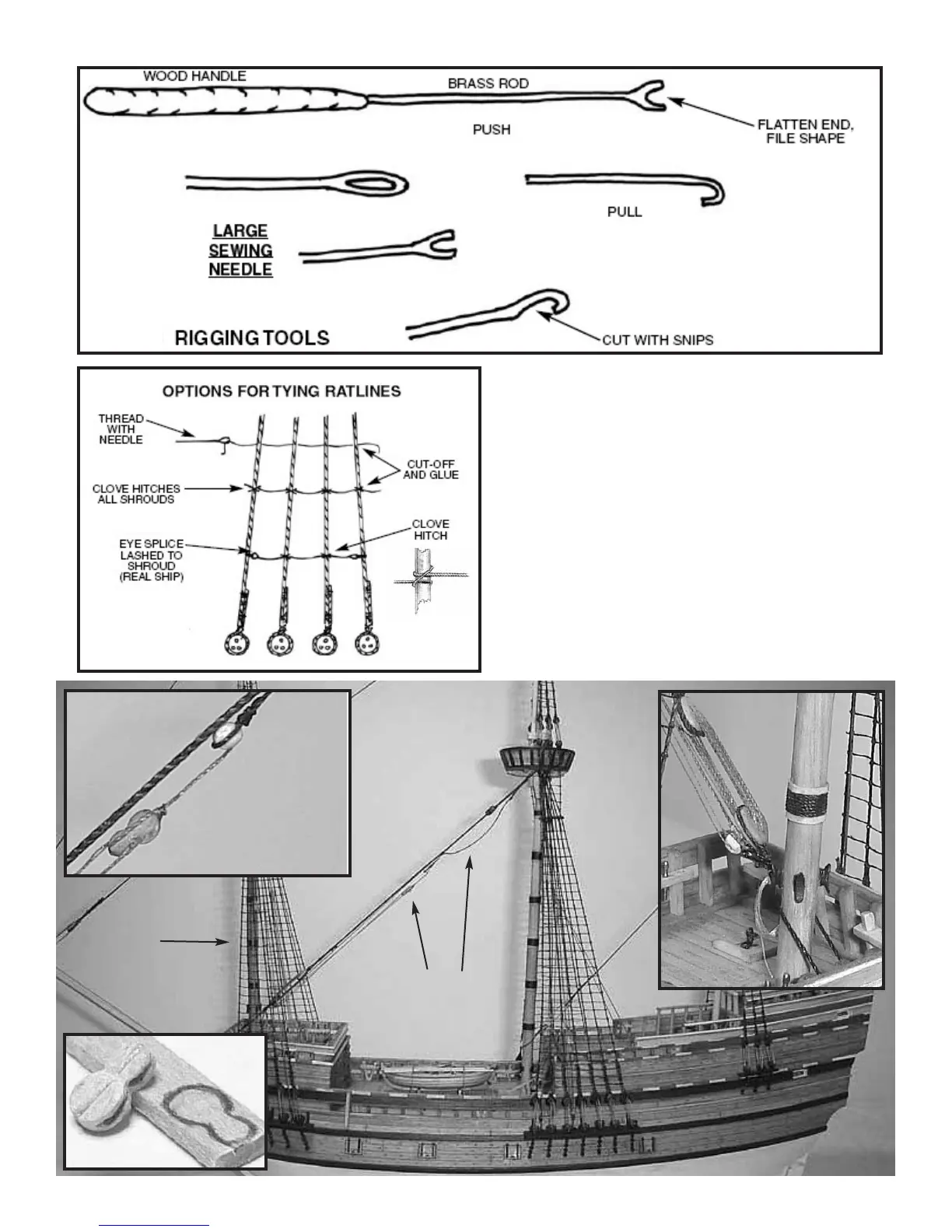

Rig the ratlines on all of the shrouds as shown in the drawing to
the left. Check the plans for the appropriate distance between
them (approx. 3/16”)(.008 BLK).
Garnet Tackle...
The Garnet tackle consists of a pendant, a runner and the falls.
The pendant (.021 BLK) is hitched around the main masthead
above the shrouds and taken through the main stay loop. It is
seized to the main stay over the main hatch with a 1/8” single
block at its end. The runner (.018 Tan) has a hook seized to its
end which is hooked forward of the 5-hole deadeye on the stay
collar (see the photo below). Reeve it through the pendant block
Fiddle and
1/8” single
block on
Garnet Tackle
fiddle
block
43
