16

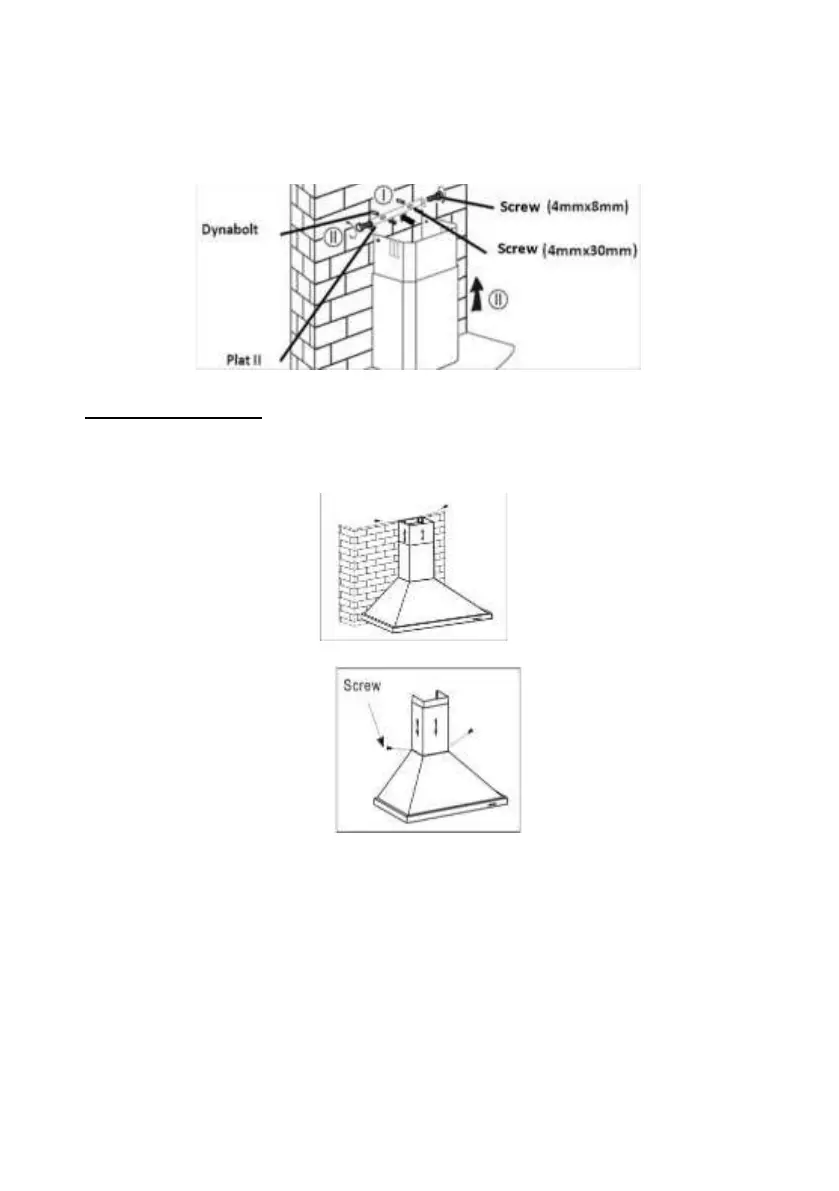

• Drill 2 × 8 mm holes to accommodate the plate II. Screw and tighten the plate
II into the wall with two screws provided. Assembly the chimney into the unit
and fix it with two screws
For Tower Model
• Put the inner chimney into upper chimney .Then pulling out the upper
chimney upwards. Adjust to reach the height required
• Fix the lower chimney with two pieces of 4x8 mm screws
To Next Page
