• Sliding the chimney to adjust the chimney height. When the height you
required is reached, then fix two pieces of 4x8 mm screws onto the hole fixing

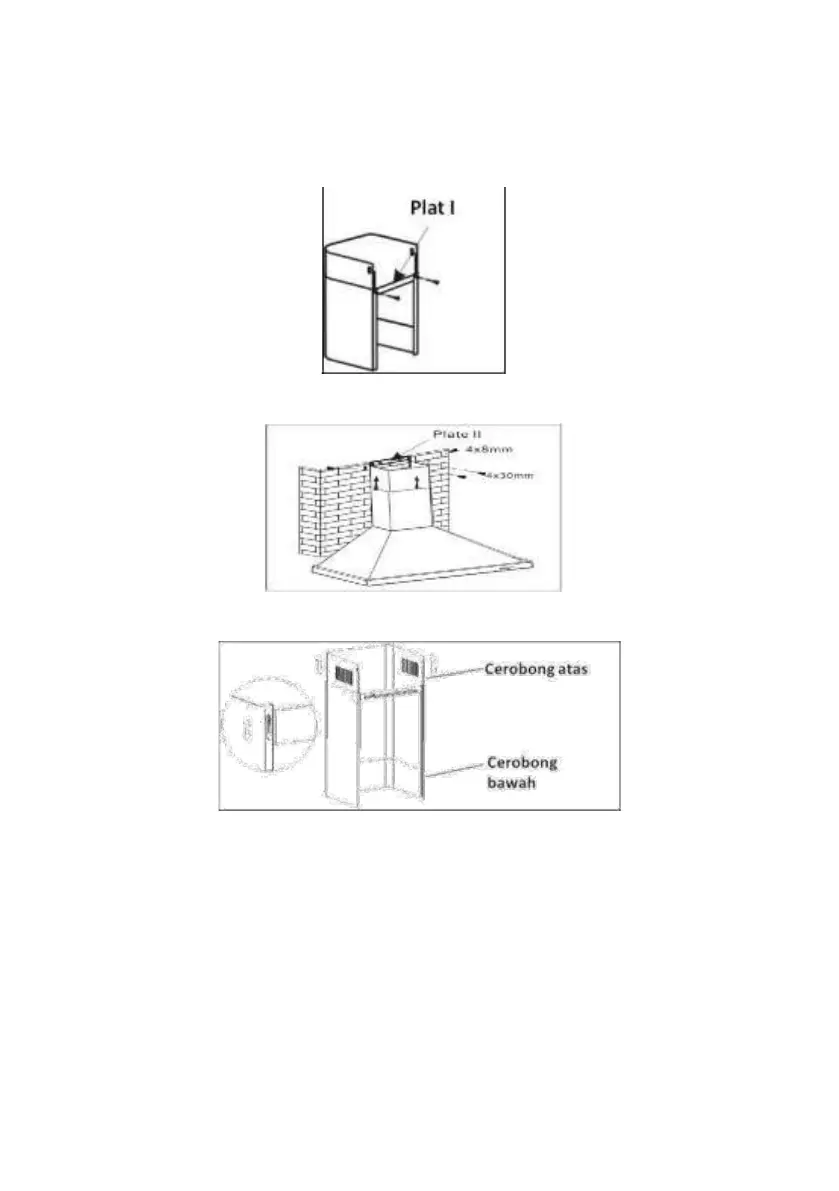

with plate I as showed in below pictures
• Drill 2 x 8 mm holes to accommodate the plate II. Screw and tighten the plate
II into the wall with two screws provided.
• Assembly the chimney into the unit and fix it with two screws.
• For optimal air extraction :
• Keep exhaust duct short and straight.
• Do not reduce the size or restrict the exhaust duct.
• Minimize bends.
• Make sure the helix of the flexible exhaust duct is tightly drawn rather than
slacking.
• Determine height between cooker hob and base of hood.
• Mark wall to suit all bracket locations. Drill holes of 50 mm depth at the selected
drilling position.
