www.ModulusArms.com | AR-15 Jig Instructions
Drill Guide: Align the drill guide under the rear pocket and trigger slot cutouts in the template. Use four
½” screws to attach the drill guide to the template as shown in Figure 6. Tighten the screws to 1 ft-lb.

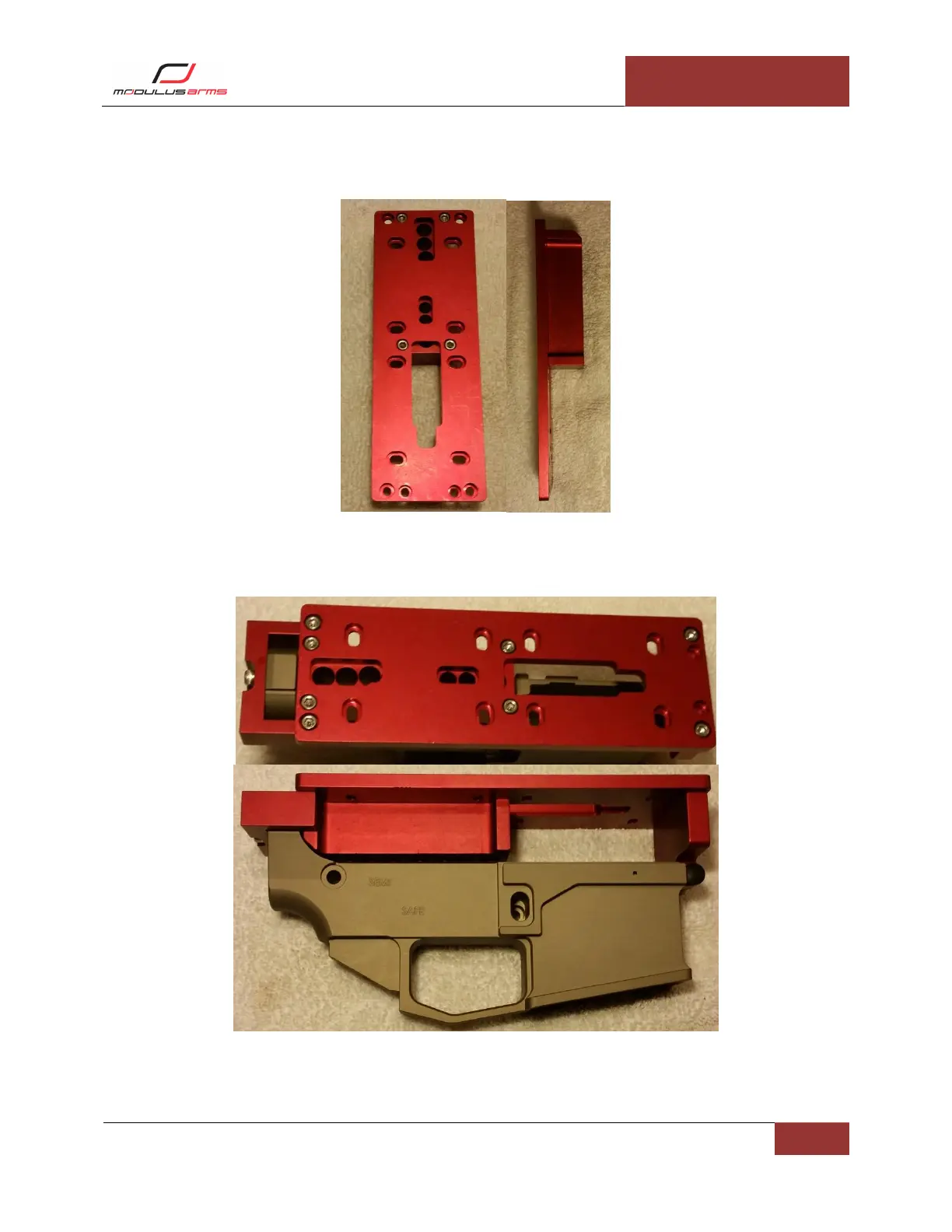

Figure 6: Drill Guide Attachment
Template: Align the template over the rear and front support as shown in Figure 7. Use four ½” screws
to attach the template. Tighten all four screws to 1 ft-lb. Tighten rear support screws to 1 ft-lb.
Figure 7: Template Attachment
