Moehlenhoff Standard - Electrical and Timer Controls; Electrical installation

25
DEU
ENG
FRA
ITA
SPA
NLD
RUS

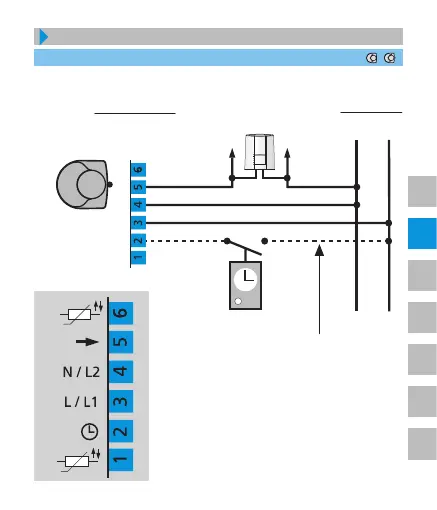

Thermostat
AR 20.. S2 | K2 | K2E
AR 40.. S2 | K2 | K2E
Timer
Only neccessary for
temperature setback
approx. 5 OEM-Actuators
A 2xxx5 / A 4xxx5
230 V AC / 0,2 A
ohmic load
24 V AC / 1 A
ohmic load
230 V AC
N L
24 V AC
L2 L1
Electrical installation
Standard | Comfort | Comfort K2E
