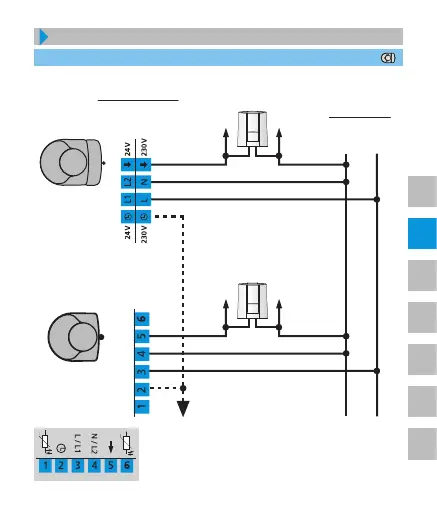

Digital-Timer Control 2 – electrical connection
Control
Thermostat
AR 20.. C2
AR 40.. C2
Thermostat
AR 20.. K2
AR 40.. K2
Further Thermostats
approx. 5 OEM-Actuators
A 2xxx5 / A 4xxx5
approx. 5 OEM-Actuators
A 2xxx5 / A 4xxx5
230 V AC / 0,2 A
ohmic load
24 V AC / 1 A
ohmic load
230 V AC
N L
24 V AC
L2 L1
