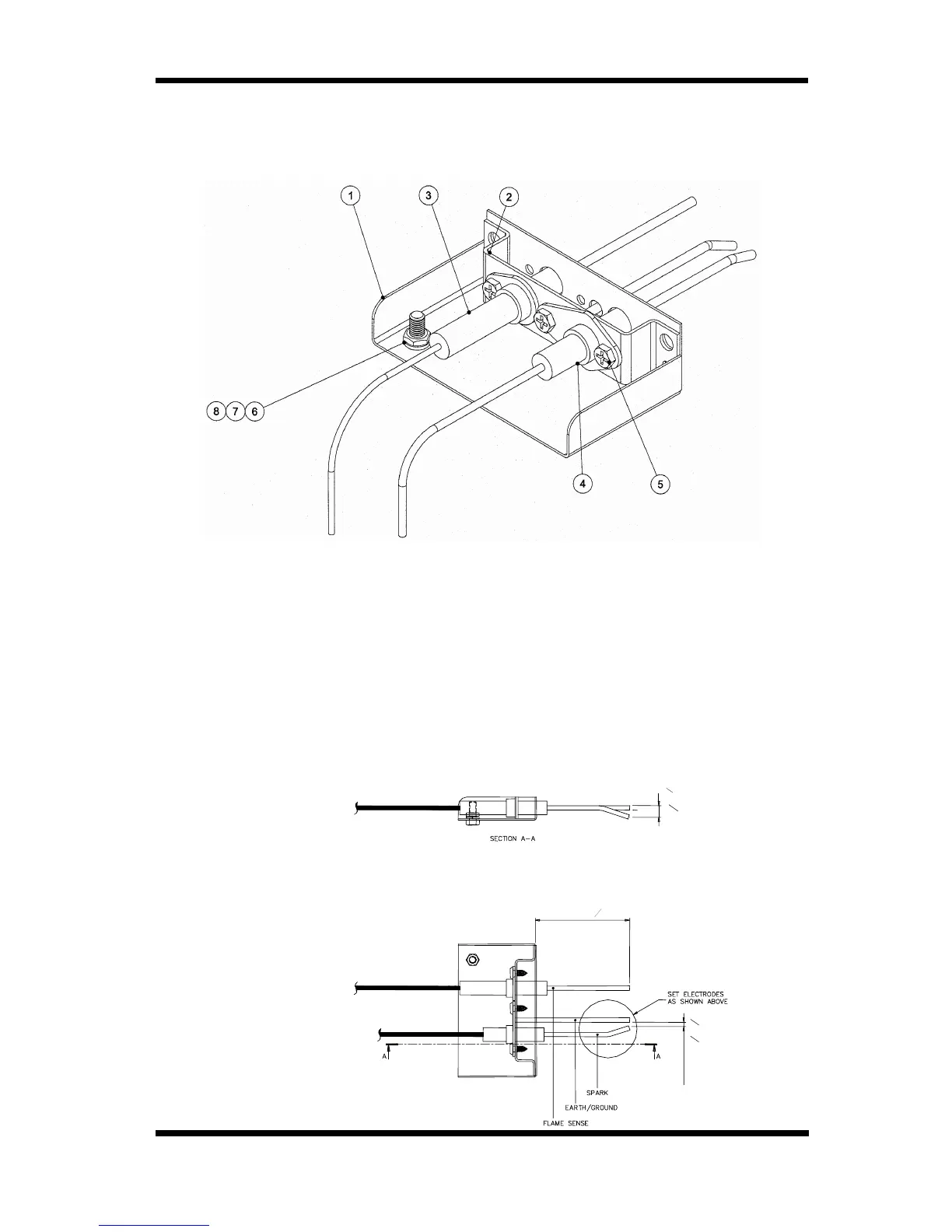

11.3.2 IGNITION ELECTRODE ASSEMBLY - FROM S/N 47875 TO 218595
For units pre serial no 47875 refer section 11.3.3 / 11.3.4.
For units after serial number 218595 refer section 11.3.1
[
]
16
1
0
16
5
2
0-
8mm
+ −
+
"
[]
64
1
"±±
8
1
0.53mm
[
]
"2
2
1
65mm
ELECTRODE SETTINGS
Pos Part No. Description
SA 1021 IGNITION ELECTRODE ASSEMBLY (COMPLETE) - OBSOLETE
- REPLACE WITH 022909 ELECTRODE ASSEMBLY UPGRADE KIT
1 022903 IGNITION ELECTRODE BRACKET
2 023221 ELECTRODE MOUNTING BRACKET
3 022902 FLAME ELECTRODE
4 022901 SPARK ELECTRODE
5 041044 SCREW
6 041600 SCREW
7 045410 WASHER
8 044010 NUT
