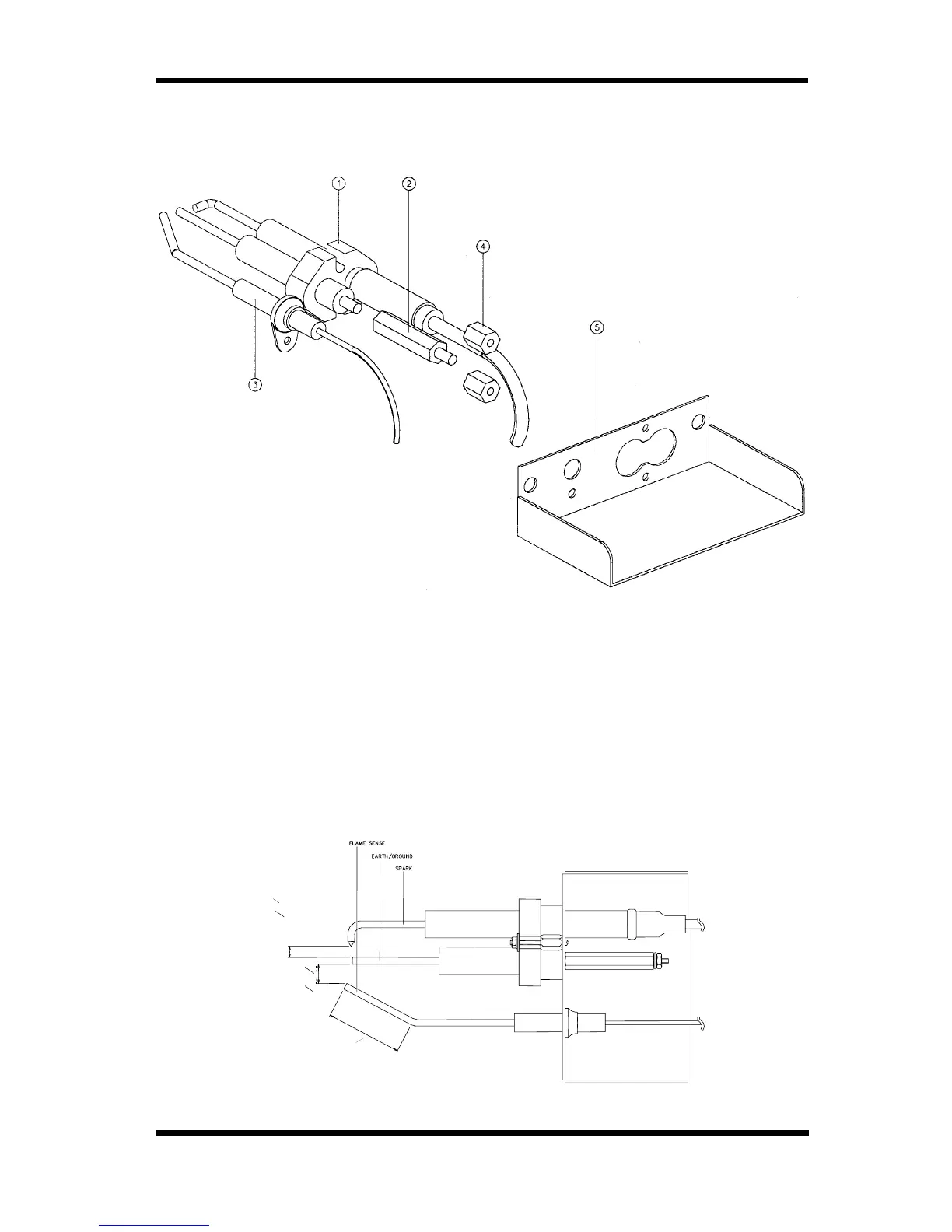

11.3.3 IGNITION ELECTRODE ASSEMBLY (NOT UK) - TO SERIAL NO 47875
For units after serial number 47875 refer section 11.3.2
Pos Part No. Description
015115 IGNITION ELECTRODE ASSEMBLY (COMPLETE) - OBSOLETE
- REPLACE WITH 022909 ELECTRODE ASSEMBLY UPGRADE KIT
1 015316 IGNITION SPARK ROD
2 016051 ELECTRODE EXTENSION
3 015315 FLAME SENSOR
- USE 022902 FLAME SENSOR
4 016050 ELECTRODE SPACER
5 015329 IGNITION ELECTRODE BRACKET
6 090127 VIDAFLEX SLEEVING
[
]
32
1
0
8
1
0.8
0-
3.2mm
+ −
+
"
[]
8
1
"±±
2
1
312mm
[
]
approx
"1 30mm
4
1
ELECTRODE SETTINGS
