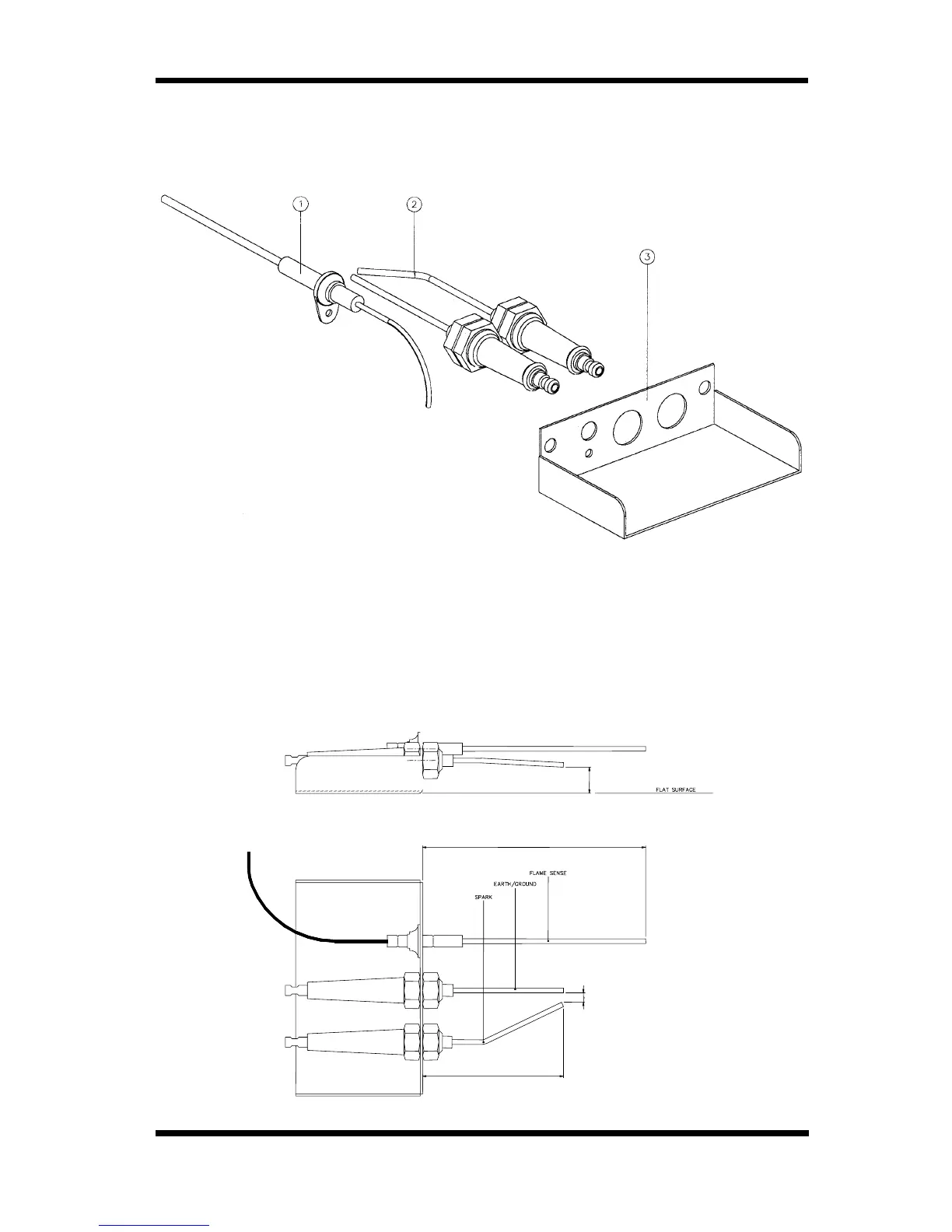

11.3.4 IGNITION ELECTRODE ASSEMBLY (UK ONLY) - TO SERIAL NO 47875
For units after serial number 47875 refer section 11.3.2
Pos Part No. Description
018760 IGNITION ELECTRODE ASSEMBLY (COMPLETE) - OBSOLETE
- REPLACE WITH 022909 ELECTRODE ASSEMBLY UPGRADE KIT
1 015315 FLAME SENSOR - OBSOLETE, REPLACE WITH 022902
2 018732 IGNITION ELECTRODE
3 018759 IGNITION ELECTRODE BRACKET
0
1-
4mm
+
95mm
60mm
11mm
ELECTRODE SETTINGS
Pos Part No. Description
018760 IGNITION ELECTRODE ASSEMBLY (COMPLETE) - OBSOLETE
- REPLACE WITH 022909 ELECTRODE ASSEMBLY UPGRADE KIT
1 015315 FLAME SENSOR
- USE 022902 FLAME SENSOR
2 018732 IGNITION ELECTRODE
3 018759 IGNITION ELECTRODE BRACKET
