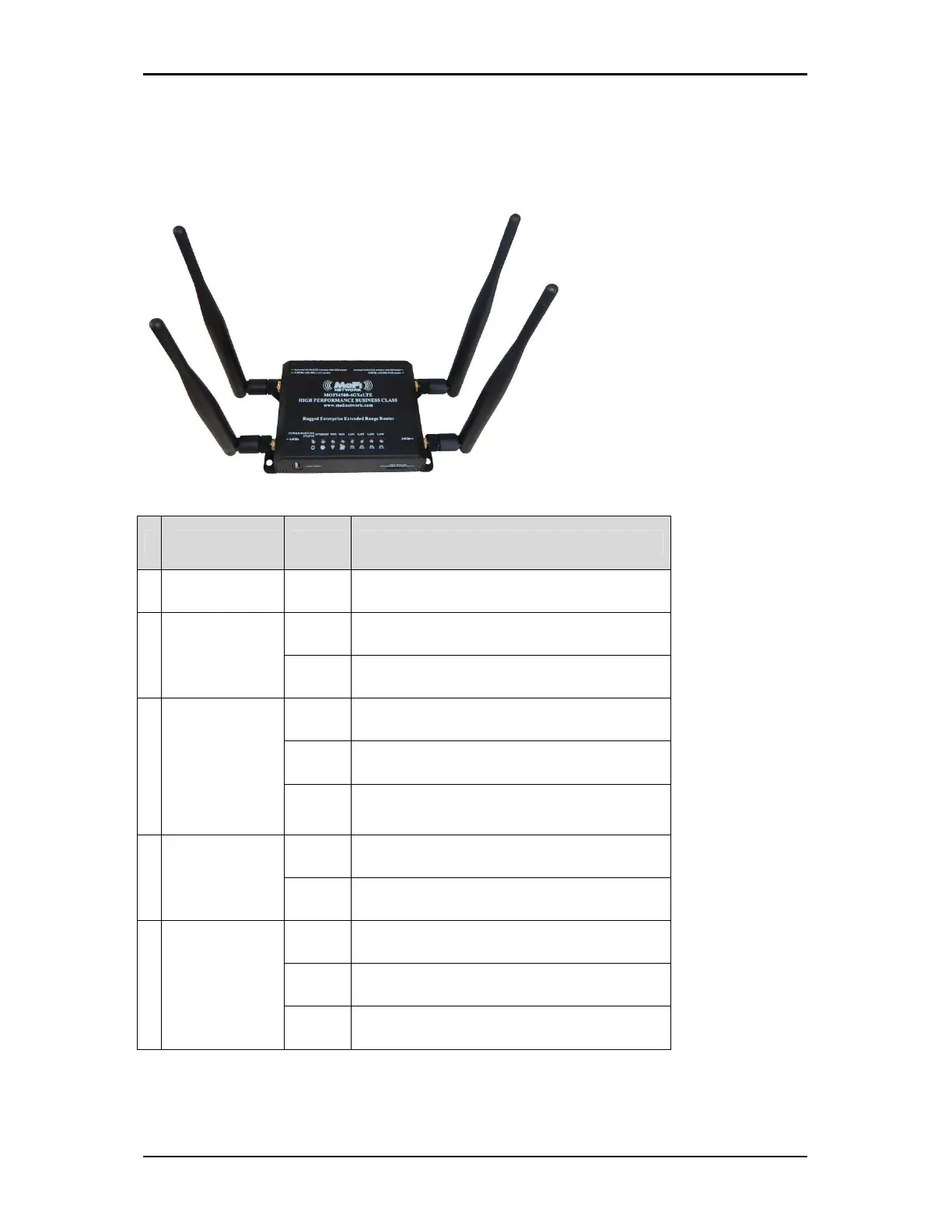

Device Design - Front Panel
Note: Includes 2 External Antenna for just the WiFi signal & 4 External Antenna for the Cellular Signal
LED Behavior Description
A
Power/Boot Status
Blink when booting, Solid when competed boot.
B Internet
On Have internet access
Off No Internet access
C Wi-Fi
On Wireless is enabled (will blink to show the wireless traffic)
Off Wireless is disabled
Very Fast
Unit is in recovery mode
D WAN
On Connected to a Cable/DSL/Satellite
Off No Modem connection
E Ethernet 1-4
On Connected to an Active Ethernet Device
Off No Ethernet Connection
Blinking Transmitting/Receiving Data
Back Panel
