MX123 Connection System User Manual - AS-34566-001 62
Molex Receptacle connector

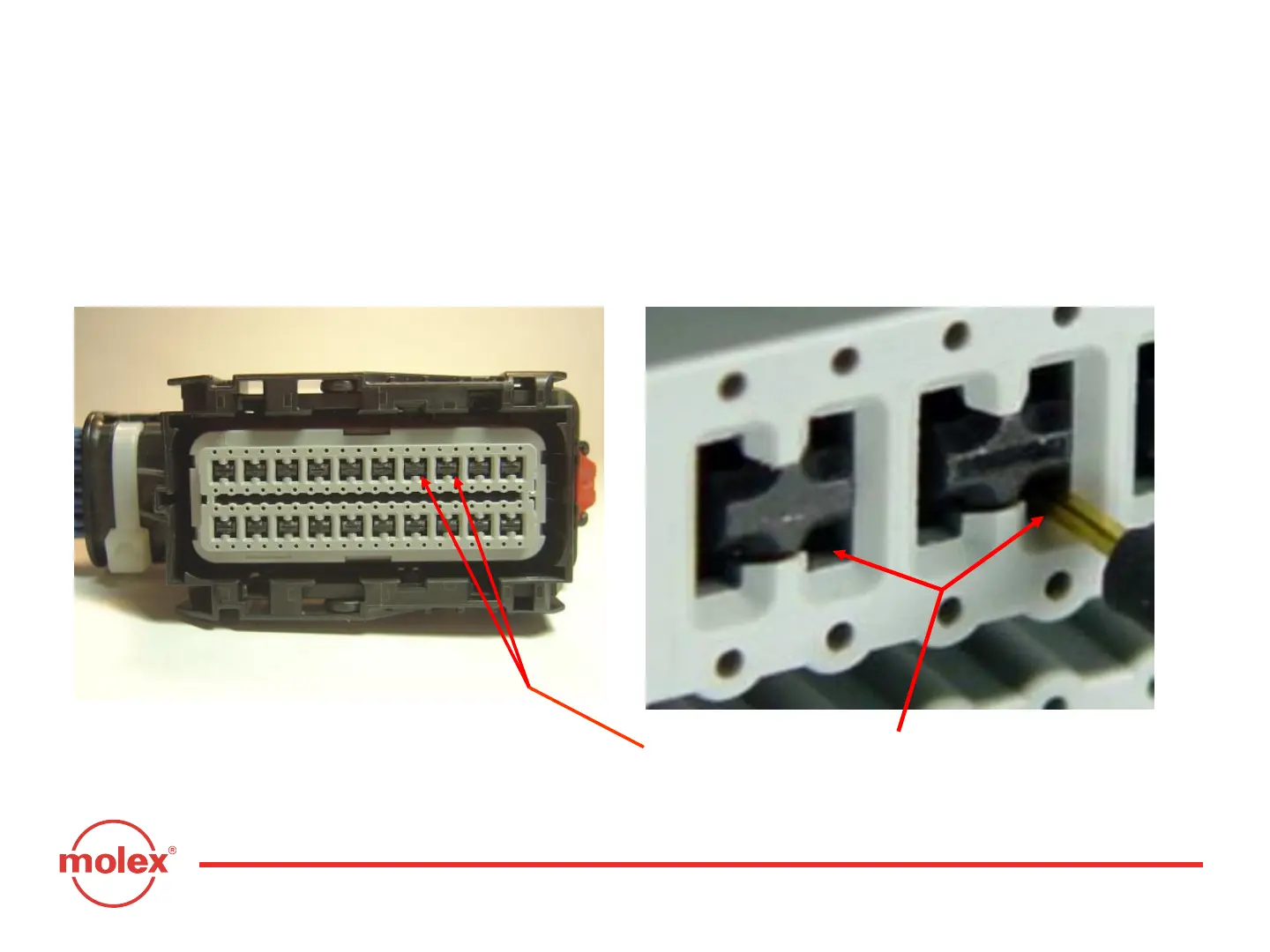

Opening for probe pin/male terminal
 Check electrical continuity on the terminal by inserting probe pin down
the center of receptacle TPA opening.
Section 6: Electrical Continuity Checking
D. Pogo Pin / Probe Opening
