MX123 Connection System User Manual - AS-34566-001 14
Section 3: Harness Assembly Instructions
A. TPA shown in “As Shipped” position
TPA to remain in pre-lock position (as shipped) until all terminals are loaded (Figs.
3-1 and 3-2). TPA is not to be removed from connector!

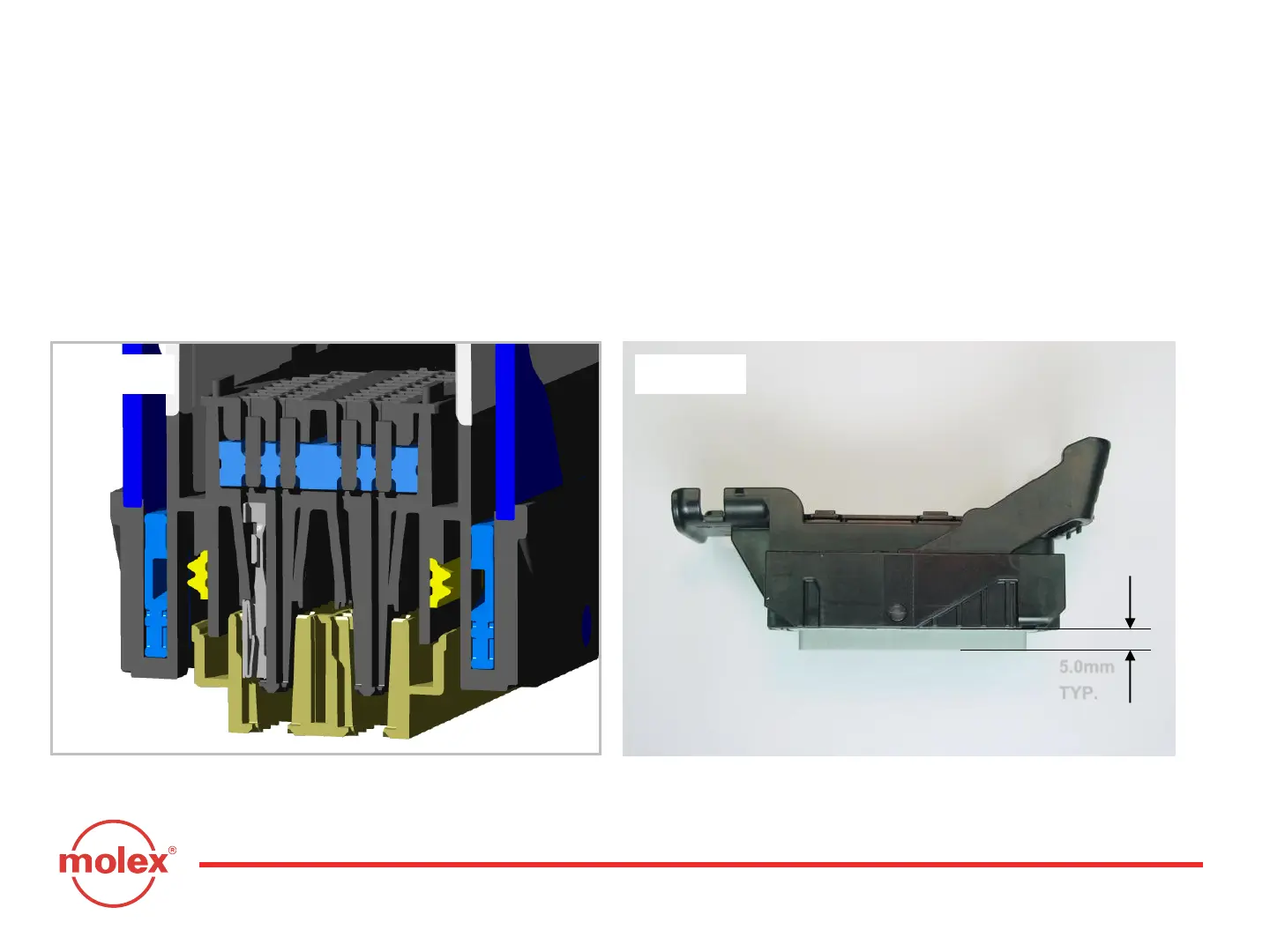

Views of TPA in “Pre-Lock” Position
Fig. 3-1
Section View
Fig. 3-2
5.0mm
TYP.
80 circuit connector shown – typical for all circuit sizes
