Section 3: Connector Assembly

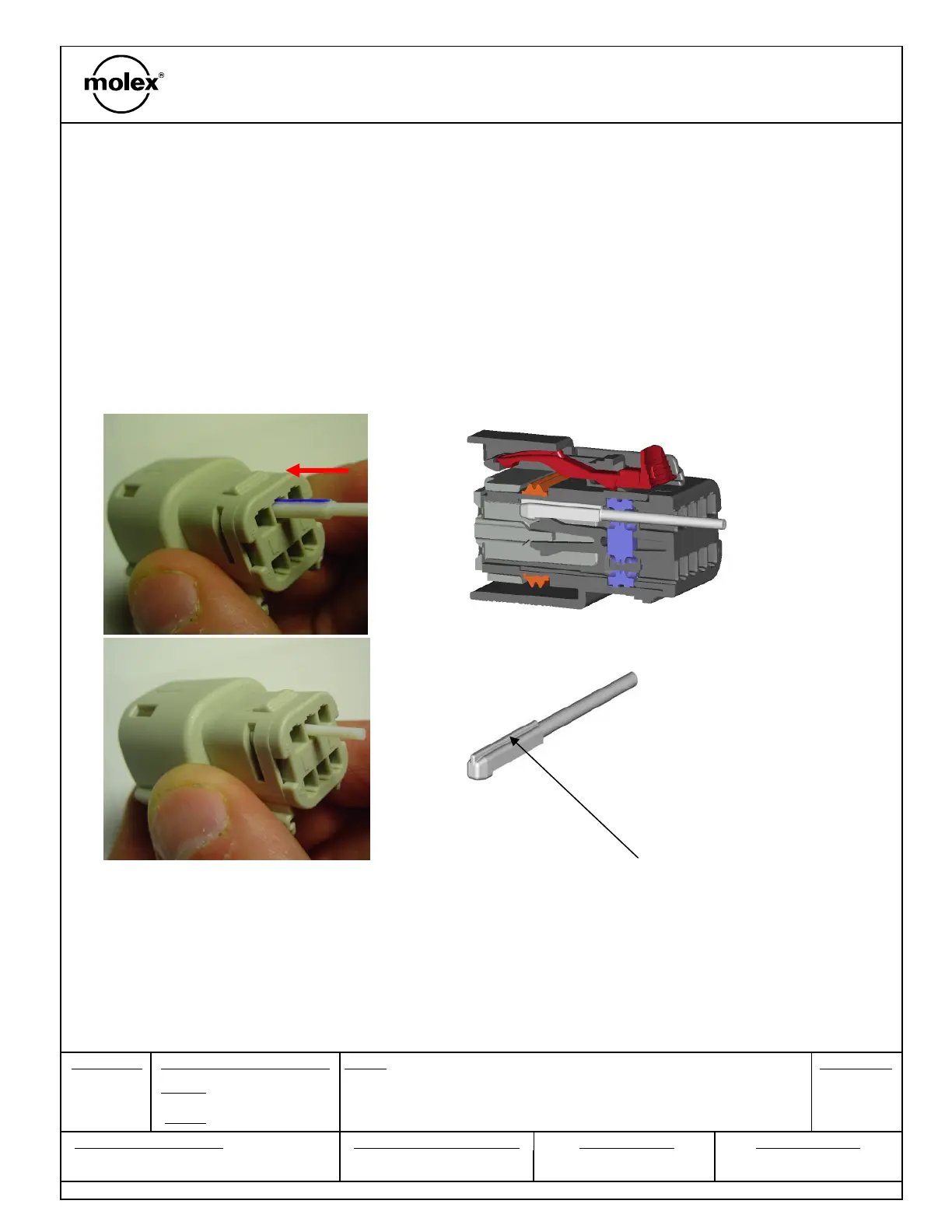

D. Seal Plug Installation
With TPA still in pre-lock position, orient seal plug to rear of connector.
Align the orientation feature and insert through appropriate circuit
opening. If resistance is encountered, retract the terminal and adjust
the angle of insertion. Continue inserting the terminal until it stops and
locks up on the lock finger with an audible click. Seal plugs can be used
on both Blade, and Receptacle connectors.
Orientation feature is highlighted
blue for reference only
Seal plug can not be used in shorting
b
ar circuits!
Orientation Feature
