APPLICATION SPECIFICATION
REVISION: ECR/ECN INFORMATION: SHEET No.
EC No:
ABC2001-9999
1
DATE:
2008/16/03
TITLE:
MX150 Application Guide
14 of 62
DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY:
Brian Zelinski Steve Verzyl Scott Marceau
TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC

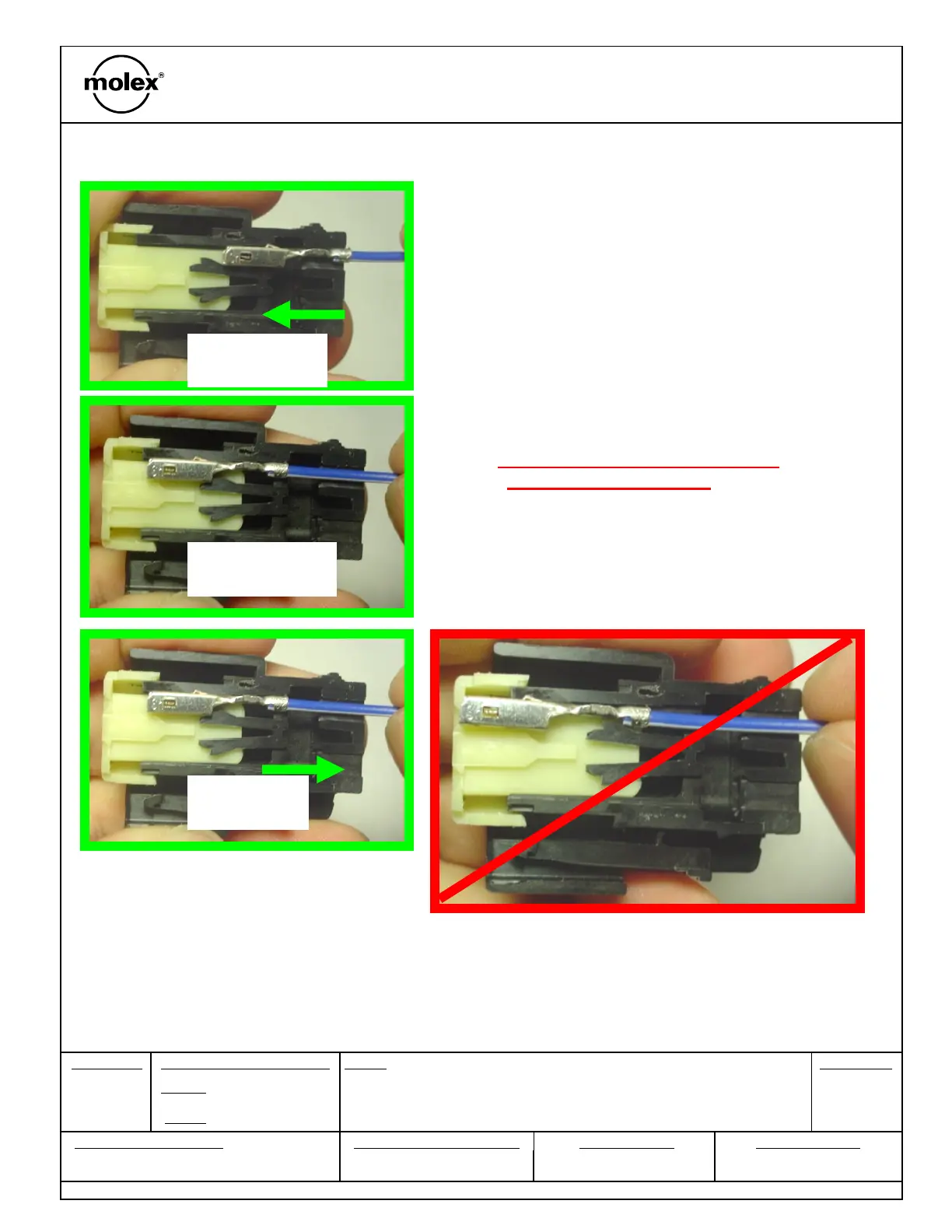

With TPA still in pre-lock position,
orient terminal to rear of
connector. Align the orientation
feature and insert through
appropriate circuit opening. If
resistance is encountered, retract
the terminal and adjust the angle
of insertion. Continue inserting the
terminal until it stops and locks up
on the lock finger with an audible
click. Once the audible click is
heard, stop inserting the terminal.
Follow Push, Click, Pull method
of terminal installation.
PUSH
PULL
NO!!!
WRONG!!
CLICK
