Section 3: Connector Assembly
D. Seal Plug Installation continued

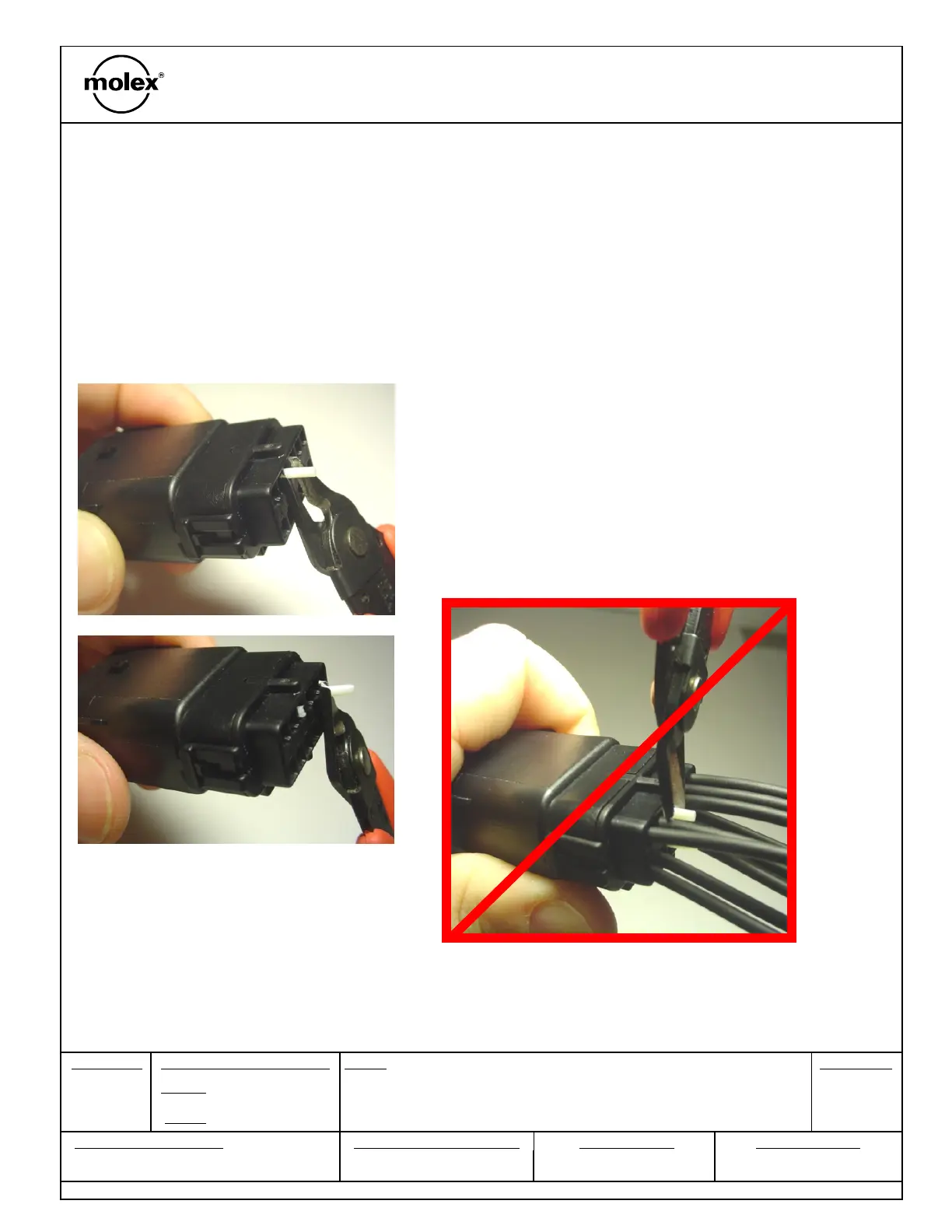

Cavity plugs can be trimmed flush to
avoid wire chafing, the decision to trim is
the discretion of the harness supplier.
Cavity plugs must be installed, and
trimmed before wires are installed. Cavity
plugs can be used on both Blade, and
Receptacle connectors.
Never trim cavity plugs with
wires installed!
