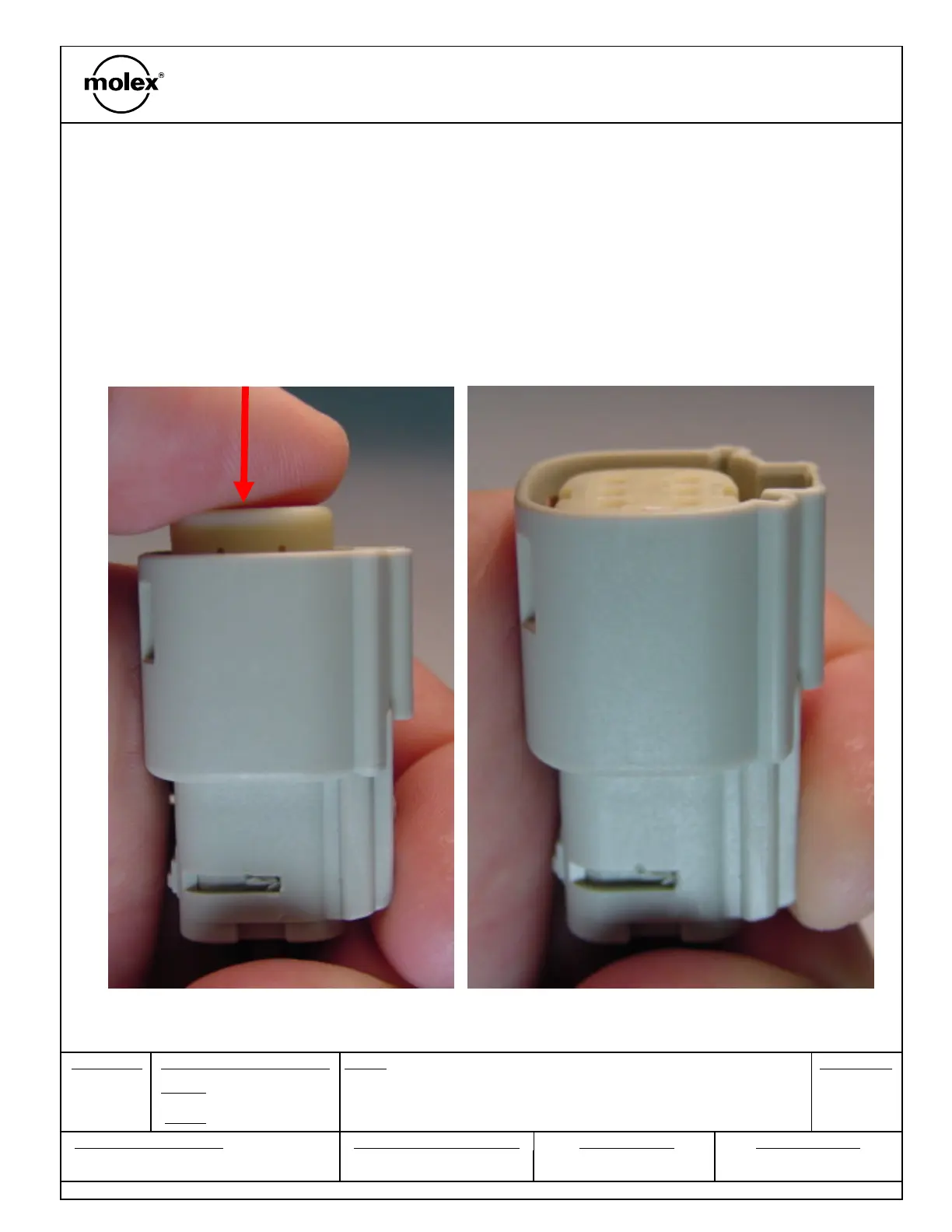

With the Receptacle terminals fully installed, the TPA
can be seated into its final lock position by applying
an even force to both ends until it comes to a stop,
with an audible click. TPA movement distance from
pre-lock to final lock is 5.0 mm.
The TPA should never be fully removed!
Section 3: Connector Assembly
E. Seating the TPA Receptacle side
