Section 6: Electrical Continuity Checking
Alternative
Dimensions shown are in (mm)

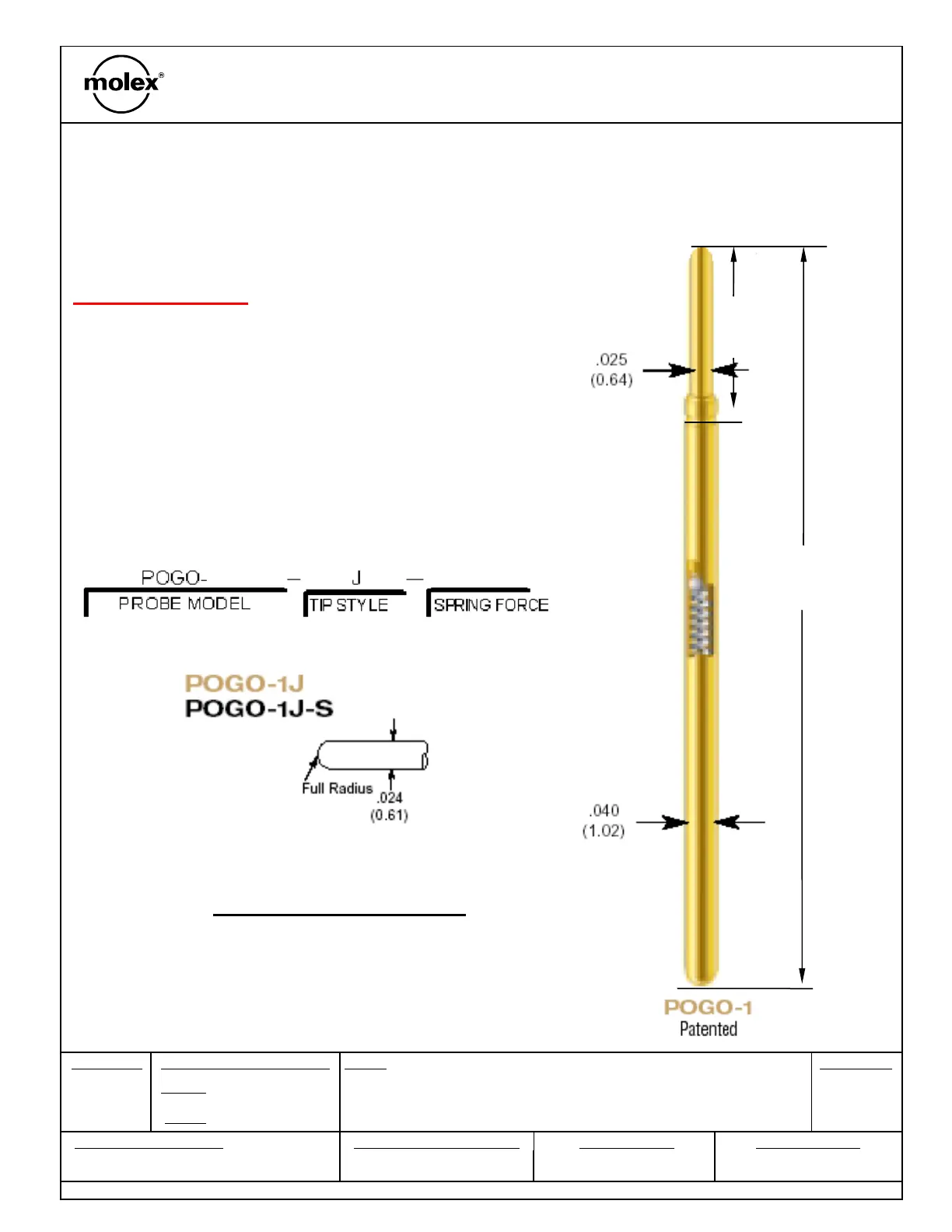

Probe pin details
Manufacturer: Everett Charles Technologies
Alternative probe number: POGO-1-J-4
Pin length 0.330” (8.38mm)
Pin diameter: (0.64 mm)
Tip shape: Spherical
Tel: (909) 625-9390
Must use this pin or damage will
occur!
.330
(8.38)
1.30
(33.02)
4
1
