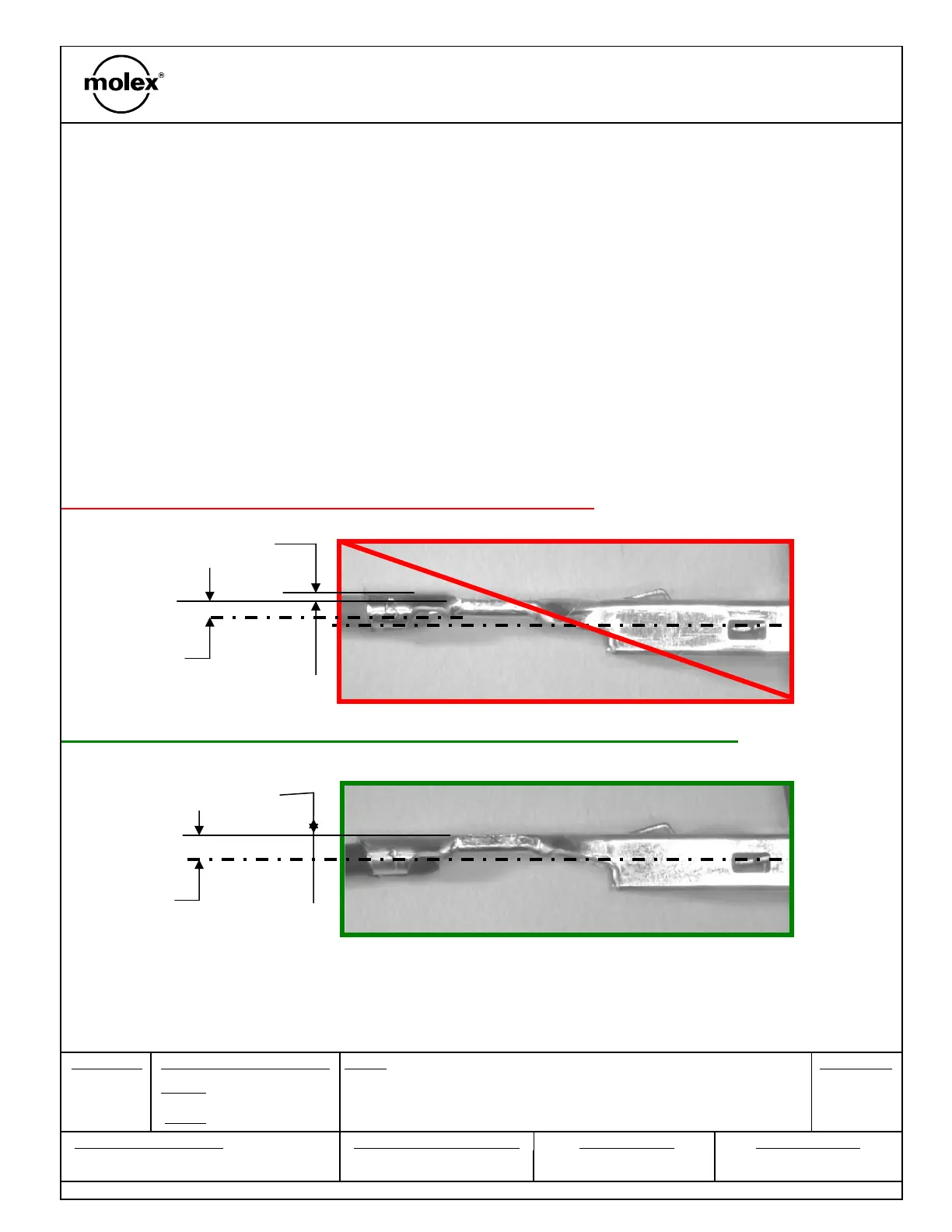

Original 22 gage crimped terminal with Insulation Grip Step:
Modified Tool Set Up 22 gage crimped terminal without Insulation Grip Step:
0.0mm offset from back of
terminal
1.085mm
to CL of
wire
0.3mm offset from back of
terminal
0.785mm to
CL of wire
Section 7: Crimping
Issue: No Insulation grip step allowed on 22 gage MX150 Female
terminal
Part Numbers:
33012-2003 & 33012-3003 Tin Plated Terminals
3
3001-2005 & 33001-3005 Gold Plated Terminals
33001-4003 & 33001-5003 Silver Plated Terminals
