Section 7: Crimping

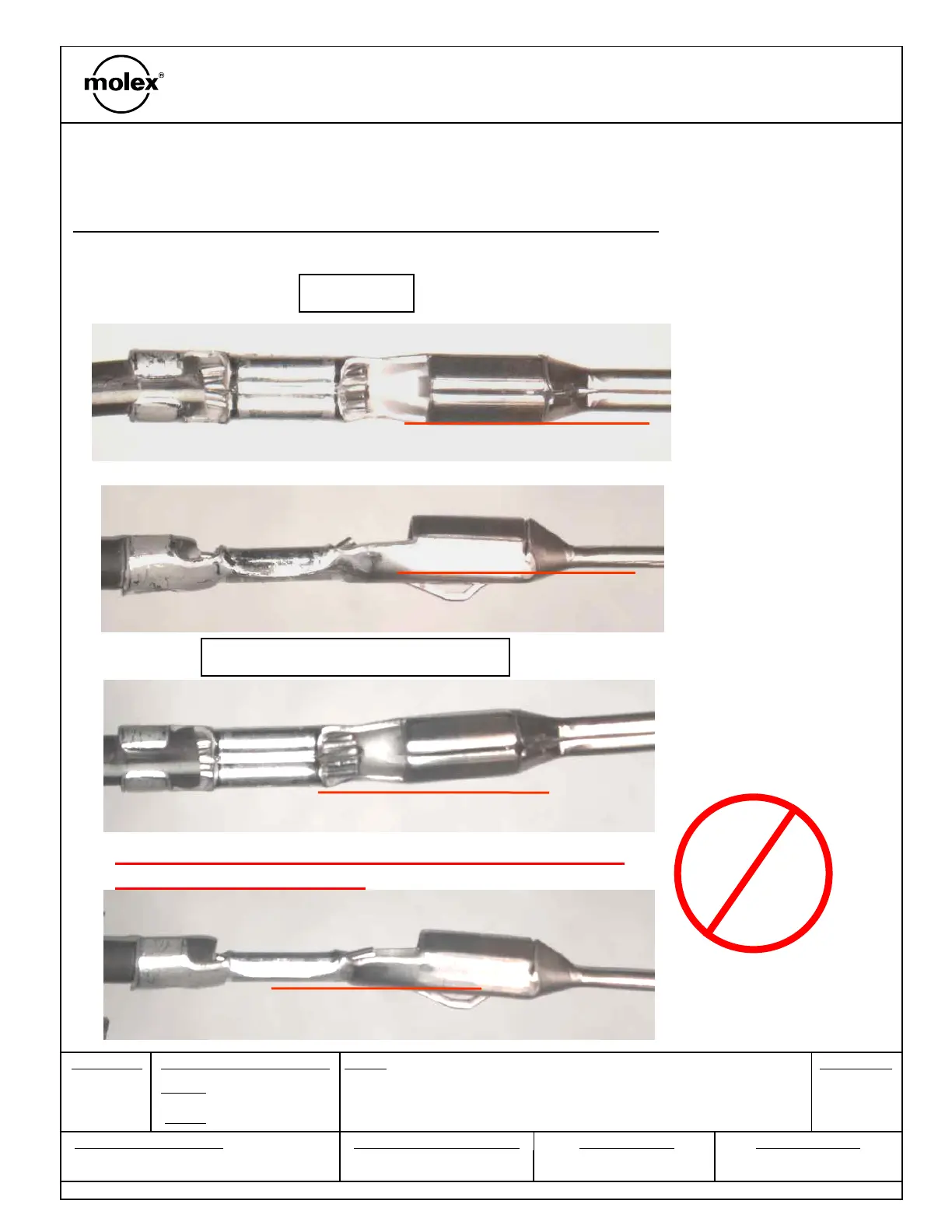

MX150 Shorting Bar Blade
Used in MX150 16 way hybrid and MX150 4 way with shorting bars
Issue: Good VS Bent Shorting Bar Terminal
GOOD
BAD, TERMINALS BENT
OK
This failure can limit the ability to lift the shorting
bar to the correct height
