Feed Finger Location Adjustment
Note
Feed finger location will vary depending on product selections see the feed finger location chart. (Ref. Fig. 5)
Steps
(Ref. Fig. 5.1)
1. Select feed finger position.
2. Loosen the feed finger shaft locking screw and position the feed finger in the selected position.
3. With a small screwdriver or 6" scale rotate the feed finger shaft to increase the spring pressure on the feed
finger.
4. While maintaining the spring pressure on the feed finger, tighten the feed finger locking screw.
Hex Wrench
To Shaft Locking Screw
Feed Lever
Feed Finger Shaft
Torsion Spring
Decrease
Increase
Feed Finger
Feed Arm

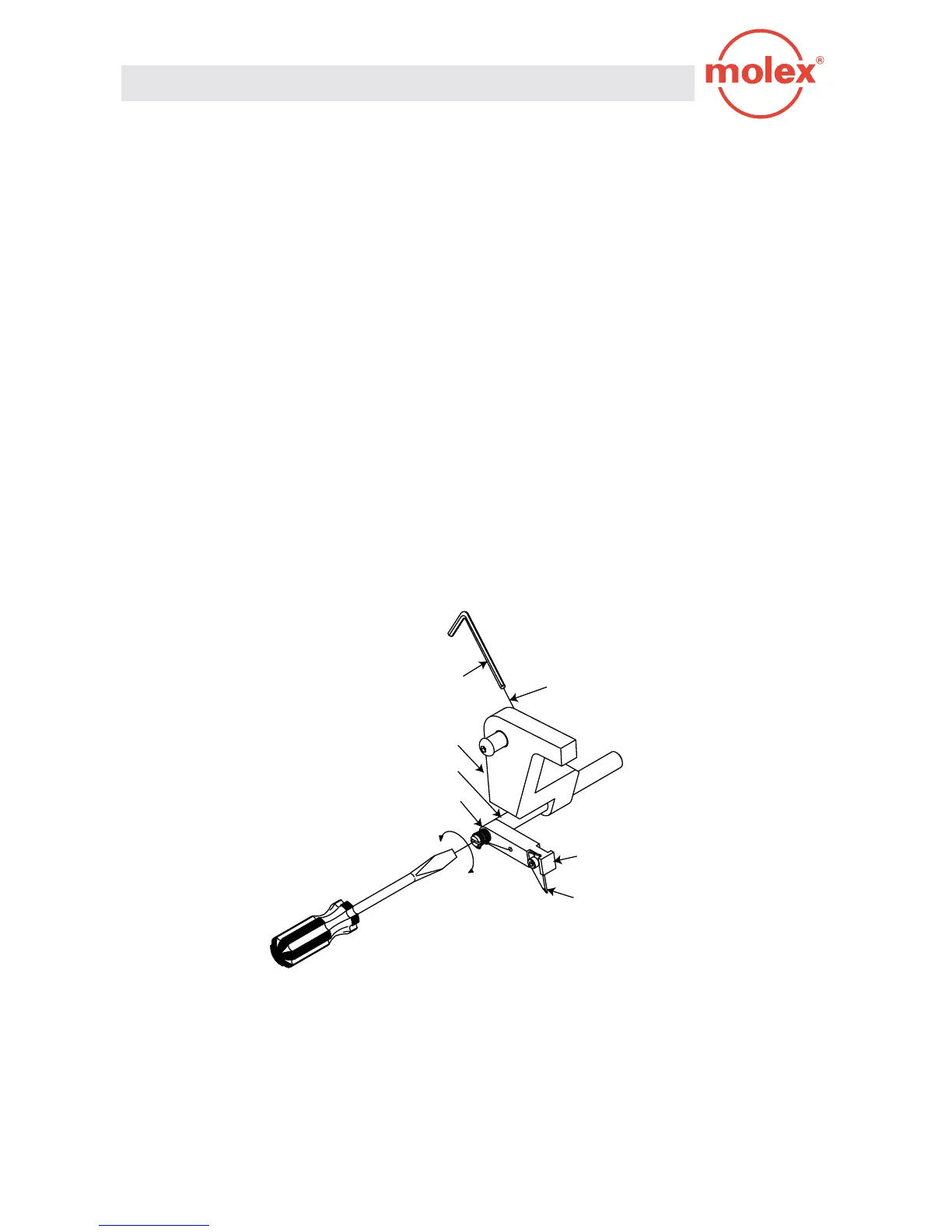

FEED FINGER SPRING ADJUSTMENT
Fig. 5.1
