Molift Smart 150 - Labelling

BM09201 Molift SMART 150 English - Rev C1/08/10 Page 12 of 20

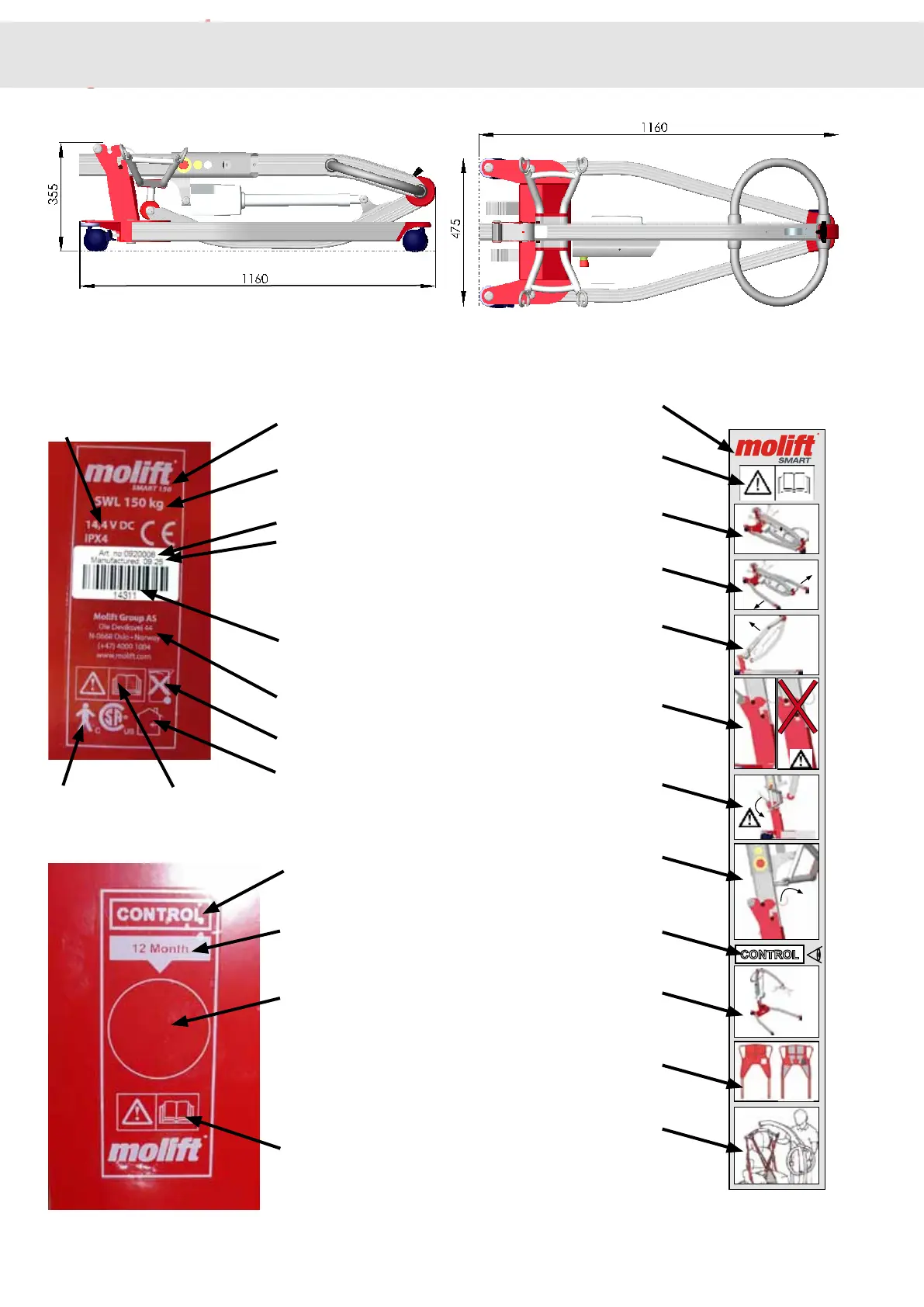

Measurements with lifter in transport position
Labelling
The main label is placed on the column bracket on
the left side of the chassis.
Control label on right side on chassis
Manufacturer
Read user
manual
Safe Working Load
For indoor
use
Model name
Part number and
year/week of
manufacturing
Serial number /
bar code
Nominal battery
voltage
Type B
Application
Separate waste
collection
Description Dimension Material Comment
Label 40x315 mm (Avery 740 pf) Part.no: 0920320
Designed/Drawn
IV
Date
20.11.08
Projection Scale
1:1
Drawing name
Label User Manual
Molift Smart
Drawing
03-272
Size
A3
D Added MAX on fig 2 05.03.09 IV M H Lie
C Changed size added fig 18.02.09 IV M H Lie
B Changed size, illustrations 03.03.09 IV M H Lie
A Released for production 20.11.08 IV M H Lie
Rev Description Date/Sign Approved
For printing, use le “03-272 Label.eps”
Transparent background (Grey areas)
Color:
White background on illustrations
Red PMS 1797 (C=0%, M=100%, Y=100%, K=15%)
Grey PMS Cool Gray 2 (C=0%, M=0%, Y=0%, K=15%)
Black (C=0%, M=0%, Y=0%, K=100%)
Dimension 40x315 mm
CONTROL
1
2
3
5
6
MAX
4
Periodical in-
spection each 12
month
Control lifter ac-
cording to check-
list on page 18
Designated area
for calendar and
signed label for
periodical inspec-
tion
READ USER
MANUAL!
Molift Smart 150 short
guide for mounting
READ USER MANUAL!
Lifter in transport position
Spread legs
Raise the lifting column
Make sure the column is
placed correct in bottom
of the chassis
Close the locking handle
to secure the column.
Release the suspension
from transport hook.
Check lifter before use
(checklist on page 7)
Lifter is ready for use
Choose correct sling and
check for damage.
Make sure sling is at-
tached correctly. Pay
attention while lifting.
