Molift Smart 150 - Disassembly and Storage Guidelines; Lifter Disassembly Instructions

BM09201 Molift SMART 150 English - Rev C1/08/10 Page 6 of 20
0°C
45°C
Molift Group AS,
Ole Deviksvei 44,
0668 Oslo
Norway
(+47) 4000 1004
www.molift.com
20 %
90 %
50 kPa
106 kPa
Labeling outside on every cartoon with Molift lifter or accessories/spare parts
Size on label ca 105x75 mm
Black printing directly on cartoon
Alternatively the labels can be printed on a A4 8 labels sheet (black printing on white bacground).
Note! Only page 2 for printing on sheet with 8 labels
Desctiption Dimension Material Comment
Designed/Drawn
I. Værnes
Date
14.11.07
Projection Scale
Drawing name
Label packing
Storage conditions
Drawing
1
Size
A4
A Released for production 14.11.07 IV
Rev Description Date/Sign Approved

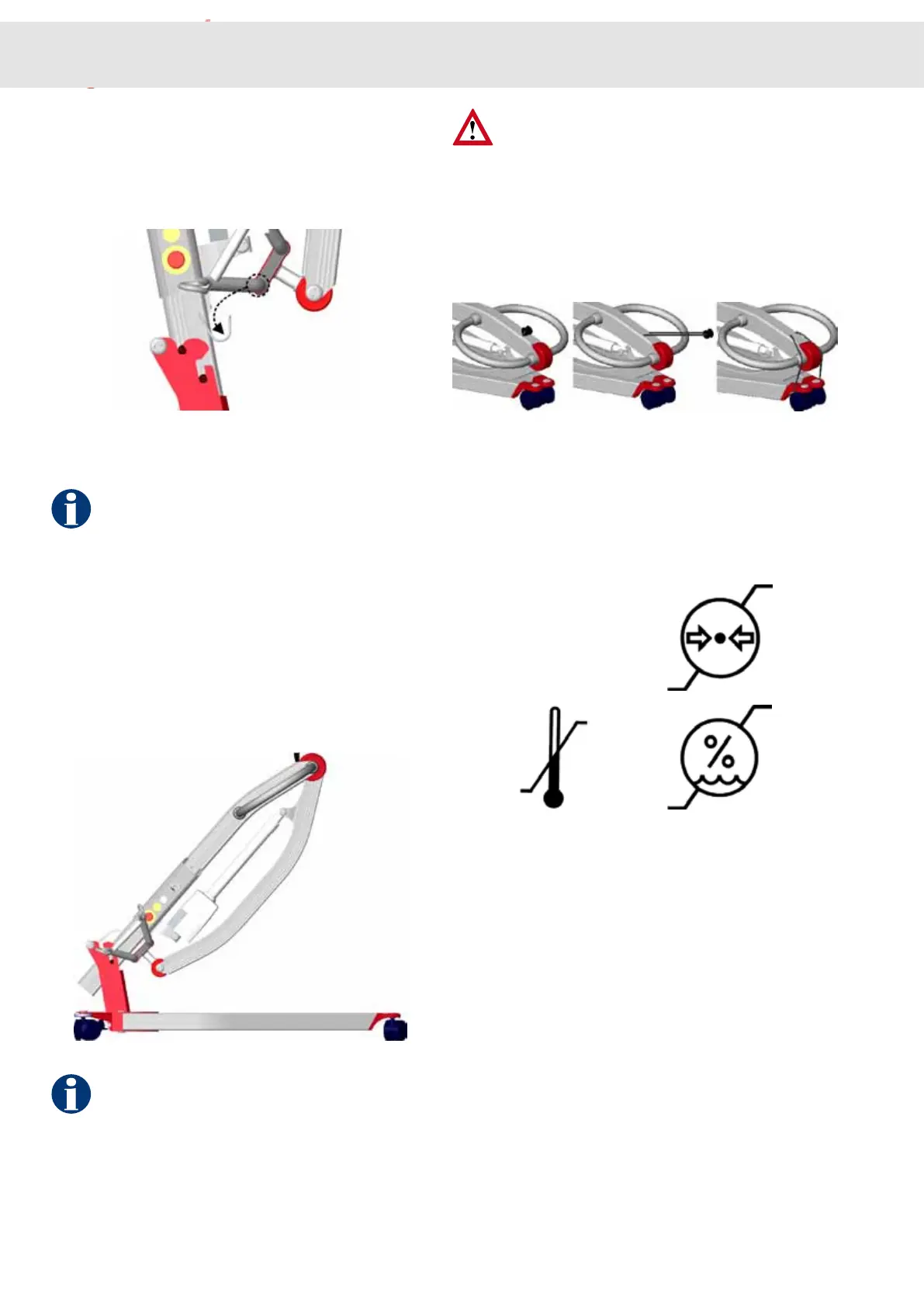

Disassembly
• Runtheliftingarmallthewaydownwhile
holding the suspension up towards the lifting
arm allowing the suspension to be placed into
the transport hook.
• Removethebatteryfromtheliftertopreventit
from falling out during transportation.
The control electronics are active as long as
the battery is placed in the holder. If the lifter
is to be stored for a longer period, the battery
should then be removed (or emergency stop
activated) to avoid unnecessary discharge of
the battery.
• Openthelockinghandle,liftuptheliftingcol-
umn (grab with both hands and lift straight up)
and fold the column down to transport posi-
tion.
The lifter can be split into two parts by lifting
the column from the chassis completely. The
lifting column/-arm and the chassis with legs
are then separate parts.
Be careful not to get legs/arms/hands wedged
between the parts when folding down the
lifting column/-arm.
• Fastenthehandcontroltothedrivinghandle
• Pressthelegstogetherandsecurelegsandlift-
ing column/-arm with the transport elastic.
• Putthelifterintothebag.
Storage
Forlongtimestorageitisrecommendedthatthe
battery is removed and the emergency stop but-
ton is activated. Storage conditions should be be-
tween
Pressure: 50 - 106 kPa
Humidity: 20 - 90 %
Temperature: 0 - 45 °C
