Monark EVO
26
ENGLISH
CALIBRATION PENDULUM
All test- and exercise cycles are calibrated in the factory, but a calibration of the pendulum can still be
done to verify this.
Please control the calibration of the pendulum when necessary. This varies on how much and how the
bike is used.
NOTE!
When calibrating the pendulum
you need a 4 kg calibration weight.
The ywheel must be completely
still before the weight is hung on!

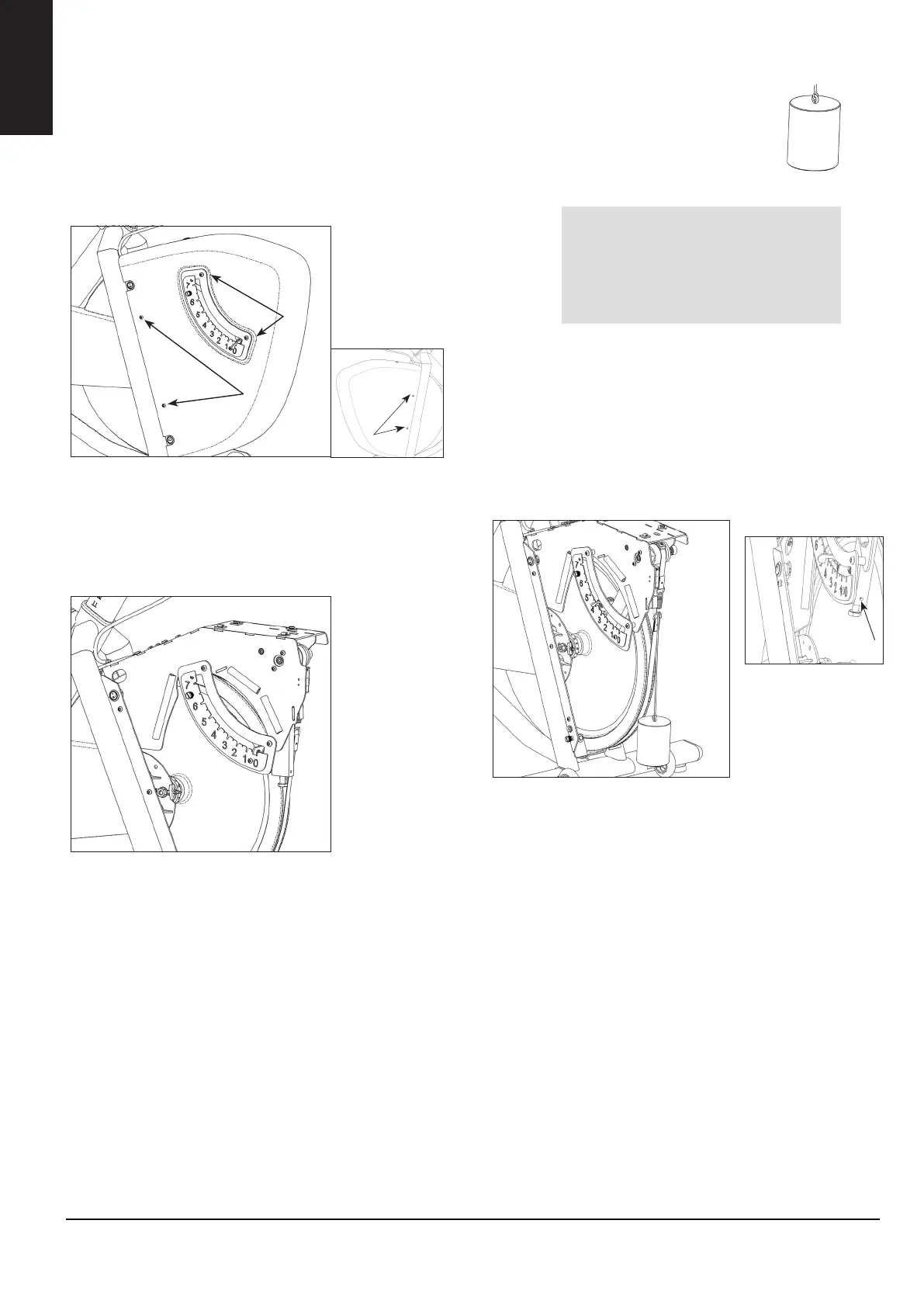

Fig 1:
1. Remove the scale
2. Remove the screws that holds
The coved on both sides.
Fig 2:
After removing the front cover, you must screw
back the scale again.
Check again that the pendulum is at 0, If not
you must of scale-, see "Scale adjustment”.
Scale:
Fig 3:
Hang 4 kg calibration weight in the spring.
Then the pendulum pointer should stay at
4 kp on the scale. If is not, the adjustment
weight in the pendulum must be adjusted,
see g: Screw for adjustment weight in the
pendulum.
If the pendulum goes too high, the adjustment
weight must be moved outwards, if the pendulum
goes too low, the weight must be Moved inwards.
Repeat until the pendulum stops at 4 kp.
Fig:
Screw for adjusting
Weight in pendulum.
When finished, remove the weight and replace the brake belt in the spring. Make sure that the brake band
is on the surface of the brake wheel and has not ended up next to it. Unscrew the scale and reattach the
cover ansd the scale.
After calibrating the pendulum, you must do an electronic calibration, see section.
