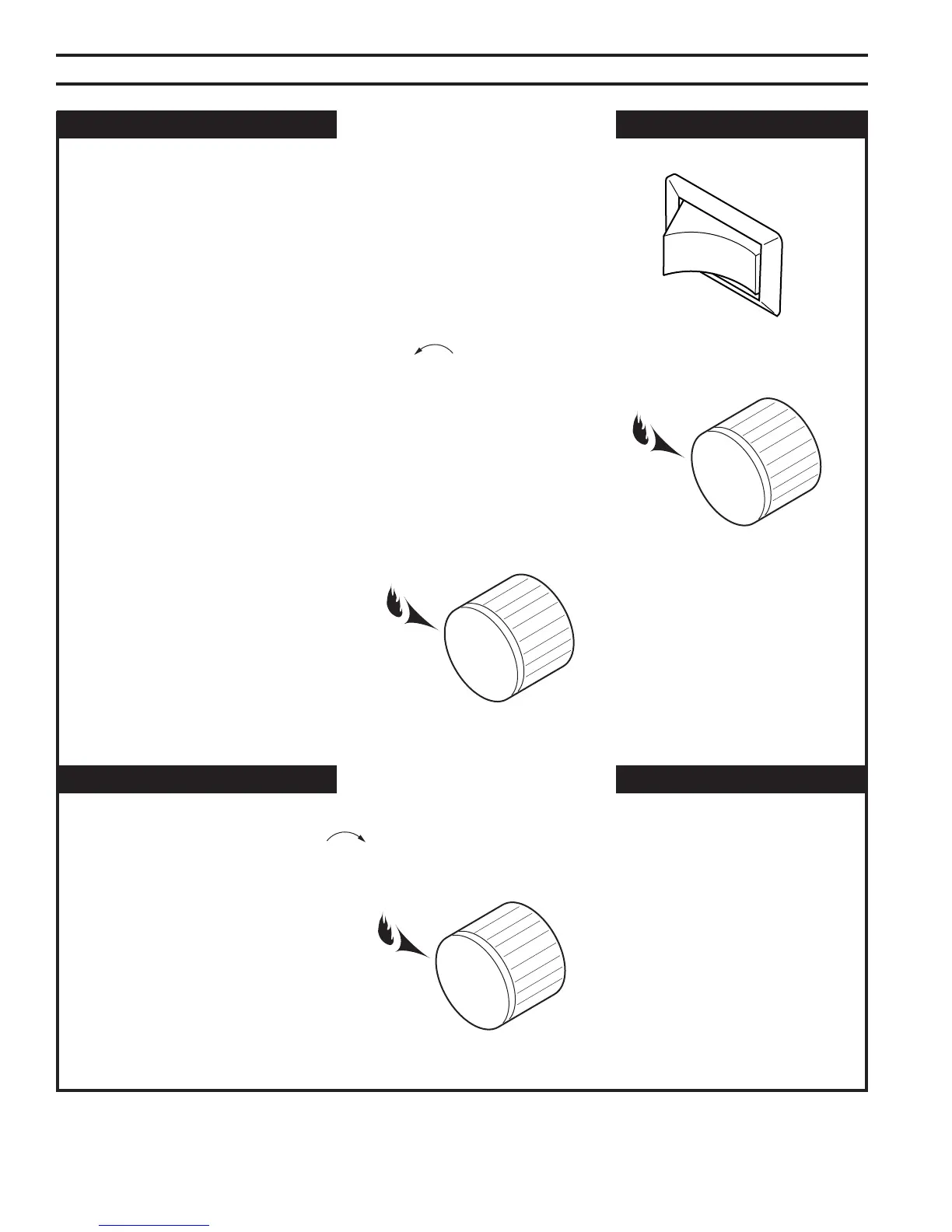

Monessen Hearth CDV7 - Lighting Burner; To Turn off Gas

CDVSC7 & CDV7 Series Gas Fireplace
34
69D3011

PILOT
O
F
F
P
I
L
O
T
O
N
O
F
F
P
I
L
O
T
O
N
PILOT
FP1937
control knob on
Figure 49 -
On Position
PILOT
O
F
F
P
I
L
O
T
O
N
FP1935
control knob pilot
Figure 48 -
On/Off/RS Switch
OFF
ON
RS


The “ON/OFF/RS” switch for the main burner can be found behind
door of the fireplace. This switch allows you to turn on and to turn
off the main burner without using the gas valve knob. Make sure the
button is in the “ON” position to light the main burner. Figure 48

Depress and turn the knob counterclockwise to the “ON” posi-
tion. Figure 49. It will take less than four (4) seconds for the burner
to ignite.

Depress and turn knob to pilot position to keep burner off while main-
taining the pilot light. Figure 50
Depress and turn knob clockwise to “OFF” position. Figure 51

Figure 51 -
Off Position
Figure 50 -
Pilot Position
